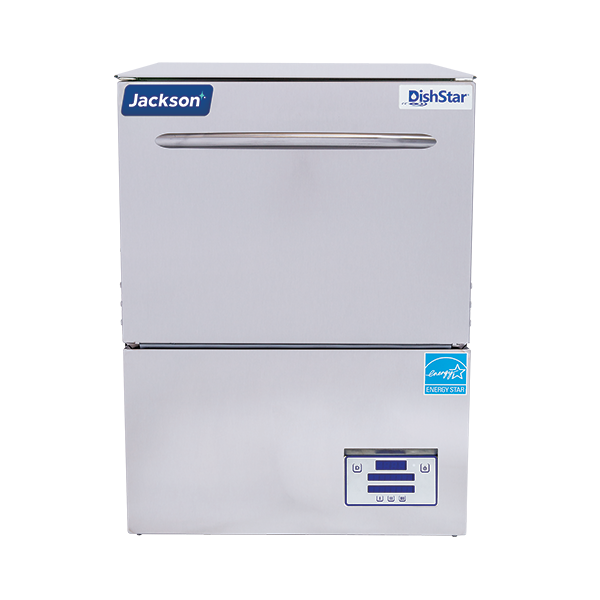

Why Jackson DishStar HT-E-SEER Undercounter Dishwasher?
The Jackson DishStar HT-E-SEER is a high temperature sanitizing undercounter dishwasher built for kitchens that cannot vent steam. Its Steam Elimination and Energy Recovery (SEER) system pulls hot vapor out of the chamber after each cycle and uses it to preheat incoming rinse water, so the machine runs on a single cold water connection and releases very little steam into the room. Rated to NSF/ANSI Standard 3 by ETL Sanitation and ENERGY STAR certified, it cleans 24 racks per hour on 0.60 gallons per rack. Perfection Plaza supplies it to restaurants, bars, coffee shops and care facilities across the U.S.
Performance & Key Features

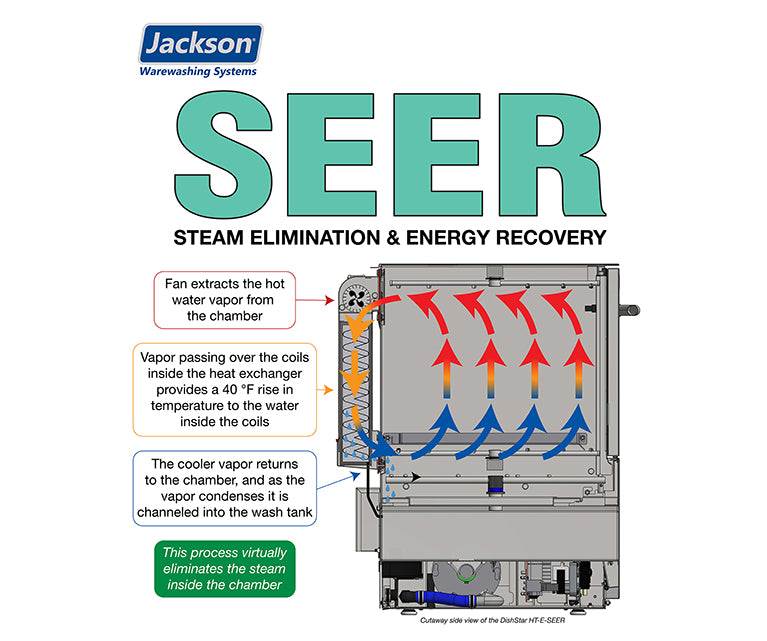

- Steam Elimination & Energy Recovery: A fan extracts hot water vapor and passes it over heat exchanger coils, giving a 40°F rise to the incoming water; the cooled vapor condenses back into the wash tank, which virtually eliminates steam in the chamber.
- Single cold water connection: Operates on a 3/4 in. cold water supply (40-90°F), so no hot water line is needed at the install location.
- Built-in booster heater: A 70°F rise booster with the Sani-Sure final rinse system holds the 180°F minimum rinse temperature required for high temperature sanitizing.
- Throughput: 24 (20)* racks per hour, 600 dishes or 864 glasses per hour on Cycle I, using 0.60 gallons of water per rack.
- Three timed cycles: Solid-state controls offer three selectable cycles (145, 213 and 313 seconds total) for light to heavy soil loads.
- Energy Saver Mode: Reduces energy use during idle periods; ENERGY STAR certified.
- Operator display & diagnostics: Digital LED temperature/operator display with onboard service diagnostics and push button start.
- Automatic fill and pumped drain: Automatic tank fill, plus an automatic pumped drain for floor or wall drain installations.
- Chemical pumps: Built-in detergent and rinse aid pumps with priming switches.
- Delime cycle: A dedicated delime cycle simplifies scale removal during routine maintenance.
- Included water controls: Pressure regulator and water hammer arrestor come standard, along with a door interlock switch.
Build Quality & Design
- Wash system: Recirculating wash design with fresh water rinse, a 1 HP stainless steel wash pump and an above-water scrap basket.
- Ventilation: Jackson does not recommend a vent hood above this model because it does not produce excessive vapors; always confirm ventilation requirements with your local building code.
- Stainless steel construction: Durable stainless steel construction with a double-wall cabinet for quiet operation and heat retention.
- Door design: A labyrinth-type door seal and a door switch keep water in the chamber during the cycle.
- Racks included: Ships with one peg rack and one combination rack, both 20 x 20 in. standard dishracks.
Specifications
| Brand | Jackson WWS |
|---|---|
| Model | DishStar HT-E-SEER |
| CSI Section | 11400 |
| Machine Type | High temperature sanitizing undercounter dishwasher with Steam Elimination & Energy Recovery, recirculating design |
| Racks per Hour (Cycle I) | 24 (20)* |
| Dishes per Hour | 600 |
| Glasses per Hour | 864 |
| Wash Temperature (minimum) | 155°F (68°C) |
| Rinse Temperature (minimum) | 180°F (82°C) |
| Cycle I (wash/rinse/dwell/vent/total, sec.) | 80/09/11/45/145 |
| Cycle II (sec.) | 148/09/11/45/213 |
| Cycle III (sec.) | 248/09/11/45/313 |
| Water per Rack | 0.60 gal (2.3 L) |
| Water per Hour | 14.40 gal (54.5 L); 12.00 gal (45.4 L)** |
| Wash Tank Capacity | 3.00 gal (11.4 L) |
| Rinse Tank Capacity | 1.66 gal (6.3 L) |
| Incoming Water Temperature | 40-90°F (5-33°C) |
| Flow Pressure | 10 PSI |
| Water Inlet | 3/4 in. male GHT with 6 ft hose; connect to a true 1/2 in. ID line |
| Drain | 5/8 in. ID drain hose; install into a 1-1/2 in. minimum drain with air gap |
| Booster Heater | 70°F rise, Sani-Sure final rinse system |
| Wash Pump Motor | 1 HP |
| Wash Tank Heater | 208V: 3.3 kW; 230V: 4.0 kW; 460V: 3.7 kW |
| Rinse Tank Heater | 208V: 4.1 kW; 230V: 5.2 kW; 460V: 5.0 kW |
| 208/60/1 | Total load 24.7 A; min. circuit ampacity 25.9 A; max. overcurrent protection 30.0 A |
| 230/60/1 | Total load 27.6 A; min. circuit ampacity 28.8 A; max. overcurrent protection 30.0 A |
| 460/60/3 (optional, extra cost) | Total load 8.3 A; min. circuit ampacity 8.8 A; max. overcurrent protection 15.0 A |
| Width | 24-1/4 in. (615 mm) |
| Depth | 26-7/8 in. (692 mm) |
| Depth with Door Open | 43-5/8 in. (1108 mm) |
| Height | 33-5/16 in. (846 mm); can be increased 1 in. with adjustable feet |
| Inside Clearance Height | 14-1/4 in. (362 mm) |
| Wall Clearance | 1/4 in. (7 mm) |
| Drain Height | 1-3/4 in. (44 mm) |
| Net Weight | 240 lbs (109 kg) |
| Shipping Weight | 255 lbs (116 kg) |
| Shipping Dimensions | 29 in. W x 30 in. D x 39 in. H |
| Shipping Cube / Class | 19.64 cu ft / Class 85 |
| Certifications | NSF/ANSI Standard 3 (ETL Sanitation); cETLus; ENERGY STAR |
| Included | 1 peg rack, 1 combination rack |
| Options & Accessories | 460/60/3; drain water tempering kit; Scale Prevention System and replacement cartridge; back panel; 6 in. or 18 in. machine stand; tie down; casters (set of four); 36-compartment racks (4-1/8, 5-5/8 and 7 in.); combination rack; peg rack |
| Warranty | 1-year parts and labor warranty (as stated by Jackson) |
| Water Heater Advisory | Jackson does not endorse tankless on-demand water heaters for its dishmachines and recommends a standard tank-style water heater sized for the facility. |
| Notes | *Racks per hour calculated with NSF suggested load time of :30 for front-opening dishmachines. **Gallons per hour calculated with NSF suggested load time of :30. |
Resources
- DishStar® HT-E-SEER Specification Sheet View Online
- M24STD-18 Specification Sheet View Online
- M24STD-6 Specification Sheet View Online
- DishStar HT-E Install Guide Download PDF
- DishStar HT-E Manual Download PDF
- DishStar HT-E Operation Guide Download PDF
- Jackson WWS Manufacturer’s Limited Warranty Download PDF
