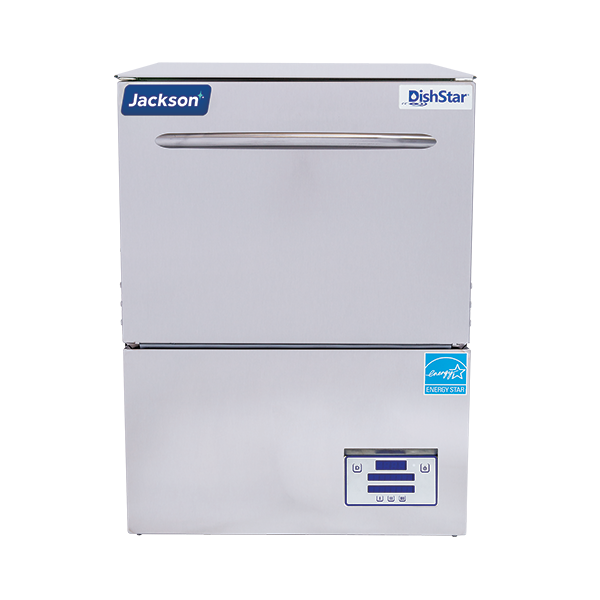

Why Jackson DishStar HT-E Undercounter Dishwasher?
The Jackson DishStar HT-E is a high temperature sanitizing undercounter dishwasher with a recirculating wash and a built-in booster heater. A 100-second Cycle I lets it clean 36 racks per hour, or 900 dishes and 1,296 glasses, on 0.60 gallons of water per rack. It is rated to NSF/ANSI Standard 3 by ETL Sanitation and ENERGY STAR certified, and it fits under a standard counter in small restaurants, coffee shops, bars and health care kitchens. Perfection Plaza ships it nationwide with full manufacturer documentation.
Performance & Key Features
- Throughput: 36 (27)* racks per hour, 900 dishes or 1,296 glasses per hour on Cycle I, using 0.60 gallons of water per rack.
- Built-in booster heater: A stainless steel 70°F rise booster with the exclusive Sani-Sure final rinse system confirms the 180°F minimum rinse temperature is reached every cycle.
- Three timed cycles: Solid-state controls with three selectable cycles of 100, 168 and 268 seconds for light to heavy soil.
- Full automatic operation: Automatic tank fill and push button start; simplified controls give easy access for operation and service.
- Energy Saver Mode: Lowers energy use between loads; ENERGY STAR certified.
- Digital LED display: Shows temperatures and operator prompts at a glance.
- Pumped drain: Automatic pumped drain for floor and wall drain installations.
- Chemical pumps: Built-in detergent and rinse aid pumps with priming switches.
- Delime cycle: A dedicated delime cycle supports routine scale removal.
Build Quality & Design

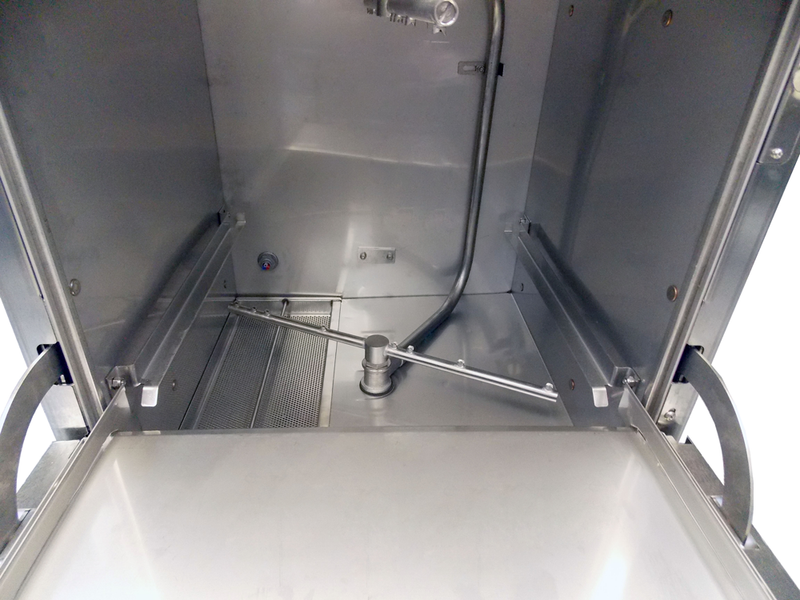

- Wash system: Recirculating wash design with fresh water rinse, a 1 HP stainless steel wash pump and an above-water scrap basket.
- Insulated cabinet: Fully insulated double-wall cabinet keeps the exterior cool and the machine quiet while holding heat.
- Handle: Durable stainless steel handle contoured for a comfortable grip.
- Installation notes: Jackson does not recommend a vent hood above this model as it does not produce excessive vapors; check local code. Normal operation can release steam at the door, so stainless steel or other moisture-resistant shields are recommended on adjacent surfaces; wood laminate and veneers are unsuitable.
- Stainless steel construction: Durable stainless steel construction with a double-wall cabinet for quiet operation and heat retention.
- Door design: A labyrinth-type door seal and a door switch keep water in the chamber during the cycle.
- Racks included: Ships with one peg rack and one combination rack, both 20 x 20 in. standard dishracks.
Specifications
| Brand | Jackson WWS |
|---|---|
| Model | DishStar HT-E |
| CSI Section | 11400 |
| Machine Type | High temperature sanitizing undercounter dishwasher, recirculating design |
| Racks per Hour (Cycle I) | 36 (27)* |
| Dishes per Hour | 900 |
| Glasses per Hour | 1,296 |
| Wash Temperature (minimum) | 155°F (68°C) |
| Rinse Temperature (minimum) | 180°F (82°C) |
| Cycle I (wash/rinse/dwell/total, sec.) | 80/09/11/100 |
| Cycle II (sec.) | 148/09/11/168 |
| Cycle III (sec.) | 248/09/11/268 |
| Water per Rack | 0.60 gal (2.3 L) |
| Water per Hour | 21.60 gal (81.8 L); 16.20 gal (61.3 L)** |
| Wash Tank Capacity | 3.00 gal (11.4 L) |
| Rinse Tank Capacity | 1.66 gal (6.3 L) |
| Incoming Water Temperature | 110°F (43°C) minimum |
| Flow Pressure | 10 PSI |
| Water Inlet | 3/4 in. male GHT with 6 ft hose; connect to a true 1/2 in. ID line |
| Drain | 5/8 in. ID drain hose; install into a 1-1/2 in. minimum drain with air gap |
| Booster Heater | 70°F rise, Sani-Sure final rinse system |
| Wash Pump Motor | 1 HP (208V/230V/460V) |
| Wash Tank Heater | 208V: 3.3 kW; 230V: 4.0 kW; 460V: 3.7 kW |
| Rinse Tank Heater | 208V: 4.1 kW; 230V: 5.2 kW; 460V: 5.0 kW |
| 208/60/1 | Total load 24.7 A; min. circuit ampacity 25.9 A; max. overcurrent protection 30.0 A |
| 230/60/1 | Total load 27.6 A; min. circuit ampacity 28.8 A; max. overcurrent protection 30.0 A |
| 460/60/3 (optional, extra cost) | Total load 8.3 A; min. circuit ampacity 8.8 A; max. overcurrent protection 15.0 A |
| Width | 24-1/4 in. (615 mm) |
| Depth | 26 in. (660 mm) |
| Depth with Door Open | 42-3/4 in. (1087 mm) |
| Height | 33-5/16 in. (846 mm); can be increased 1 in. with adjustable feet |
| Inside Clearance Height | 14-1/4 in. (362 mm) |
| Wall Clearance | 1/4 in. (7 mm) |
| Drain Height | 3-7/8 in. (99 mm) |
| Net Weight | 225 lbs (102 kg) |
| Shipping Weight | 240 lbs (109 kg) |
| Shipping Dimensions | 29 in. W x 30 in. D x 39 in. H |
| Shipping Cube / Class | 19.64 cu ft / Class 85 |
| Certifications | NSF/ANSI Standard 3 (ETL Sanitation); cETLus; ENERGY STAR |
| Included | 1 peg rack, 1 combination rack |
| Options & Accessories | 460/60/3; drain water tempering kit; water hammer arrestor; pressure regulator; Scale Prevention System and replacement cartridge; 6 in. or 18 in. machine stand; back panel; tie down; casters (set of four); 36-compartment racks (4-1/8, 5-5/8 and 7 in.); combination rack; peg rack |
| Warranty | 1-year parts and labor warranty (as stated by Jackson) |
| Water Heater Advisory | Jackson does not endorse tankless on-demand water heaters for its dishmachines and recommends a standard tank-style water heater sized for the facility. |
| Notes | *Racks per hour calculated with NSF suggested load time of :30 for front-opening dishmachines. **Gallons per hour calculated with NSF suggested load time of :30. |
Resources
- DishStar® HT-E Specification Sheet View Online

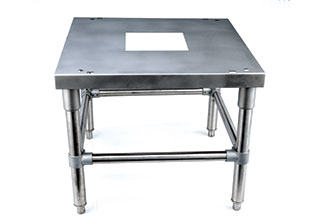

- M24STD-18 Specification Sheet View Online

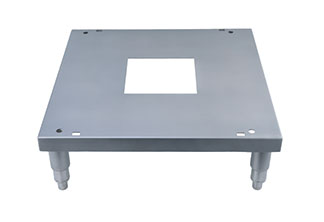

- M24STD-6 Specification Sheet View Online
- DishStar HT-E Install Guide Download PDF
- DishStar HT-E Manual Download PDF
- DishStar HT-E Operation Guide Download PDF
- Jackson WWS Manufacturer’s Limited Warranty Download PDF
