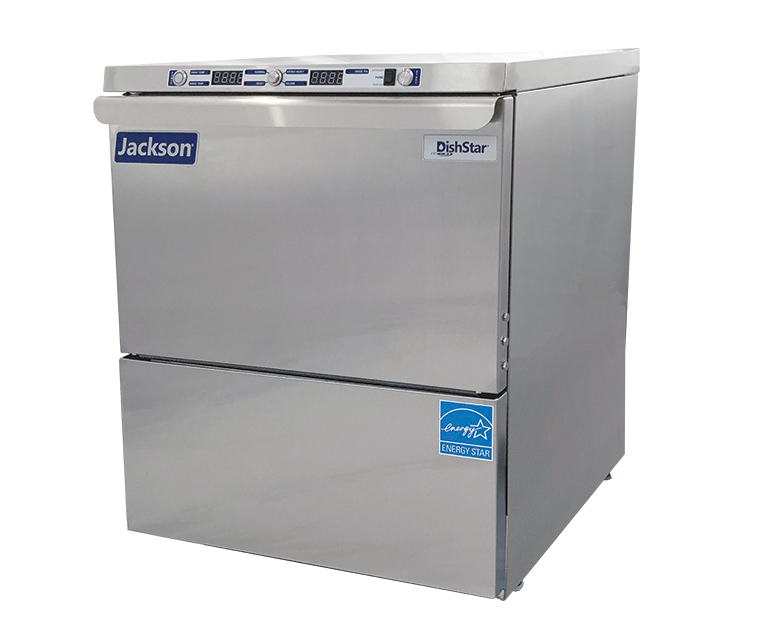

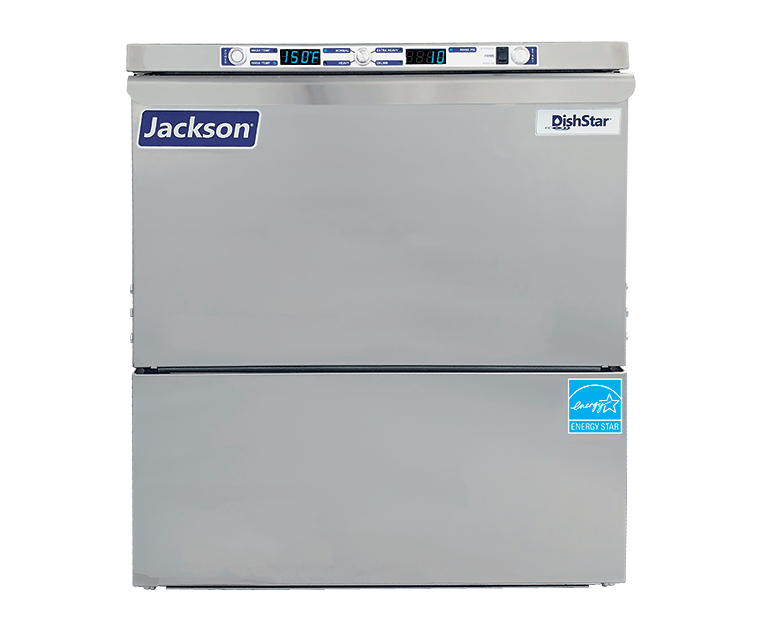

Why Jackson DishStar ADA-SEER Undercounter Dishwasher?
The Jackson DishStar ADA-SEER is an ADA-compliant, high temperature sanitizing undercounter dishwasher that fits beneath 34 in. counters. It sanitizes with 180°F rinse water, so no chemical sanitizer residue stays on the ware, and its Steam Elimination and Energy Recovery System (SEER) virtually eliminates wash cycle steam, which allows installation in customer-facing locations. It is ENERGY STAR certified and cleans 24 racks per hour on 0.60 gallons per rack. Perfection Plaza supplies it for bars, coffee shops, restaurants and accessible service areas.
Performance & Key Features
- ADA-compliant height: At 29-3/4 in. tall it fits easily beneath 34 in. counters.
- Steam Elimination & Energy Recovery: SEER virtually eliminates the steam generated by the wash cycle and recovers its heat to preheat incoming water.
- Single cold water connection: Operates on incoming water at 40-90°F, so no hot water line is needed.
- High temperature sanitizing: A built-in booster heater with the Sani-Sure final rinse system holds a 180°F minimum rinse with no chemical sanitizer residue.
- Soft Start: Helps protect glassware and dishes from chipping and breaking.
- Throughput: 24 (20)* racks per hour, 600 dishes or 864 glasses per hour on Cycle I, using 0.60 gallons per rack.
- Three timed cycles: 145, 213 and 313 second total cycles with automatic tank fill and push button start.
- Energy saver mode: Reduces energy use between loads; ENERGY STAR certified.
- Controls: Digital LED temperature display and a delime cycle.
- Chemical pumps: Built-in chemical pumps with automatic prime.
- Pumped drain: Automatic pumped drain for floor or wall drain installations.
- Included water controls: Pressure regulator and water hammer arrestor, plus a door interlock and door switch.
Build Quality & Design
- Stainless steel construction: Durable stainless steel construction with a stainless steel wash pump.
- Scrap basket: Above-water scrap basket keeps debris out of the wash tank.
- Racks included: One each peg and combination rack included.
Specifications
| Brand | Jackson WWS |
|---|---|
| Model | DishStar ADA-SEER |
| Machine Type | ADA-compliant high temperature sanitizing undercounter dishwasher with Steam Elimination & Energy Recovery, recirculating design |
| Racks per Hour (Cycle I) | 24 (20)* |
| Dishes per Hour | 600 |
| Glasses per Hour | 864 |
| Wash Temperature (minimum) | 155°F (68°C) |
| Rinse Temperature (minimum) | 180°F (82°C) |
| Cycle I (wash/rinse/dwell/vent/total, sec.) | 80/09/11/45/145 |
| Cycle II (sec.) | 148/09/11/45/213 |
| Cycle III (sec.) | 248/09/11/45/313 |
| Water per Rack | 0.60 gal (2.3 L) |
| Water per Hour | 14.4 gal (54.5 L); 12.0 gal (45.4 L)** |
| Wash Tank Capacity | 3.0 gal (11.4 L) |
| Rinse Tank Capacity | 1.66 gal (6.3 L) |
| Incoming Water Temperature | 40-90°F (5-33°C) |
| Flow Pressure | 10 PSI |
| Water Inlet | 3/4 in. male GHT; connect to a true 1/2 in. ID line |
| Drain Connection | 5/8 in. ID |
| Wash Pump Motor | 3/4 HP (208V/230V) |
| Wash Tank Heater | 208V: 3.3 kW; 230V: 4.0 kW |
| Rinse Tank Heater | 208V: 4.1 kW; 230V: 5.2 kW |
| 208/60/1 | Total load 26.3 A; min. circuit ampacity 27.9 A; max. overcurrent protection 30.0 A |
| 230/60/1 | Total load 29.2 A; min. circuit ampacity 30.8 A; max. overcurrent protection 35.0 A |
| Width | 24-1/4 in. (615 mm) |
| Depth | 26-7/8 in. (692 mm) |
| Depth with Door Open | 40-7/8 in. (1037 mm) |
| Height | 29-3/4 in. (756 mm) |
| Inside Clearance Height | 12 in. (304 mm) |
| Wall Clearance | 1/4 in. (7 mm) |
| Drain Height | 2-7/8 in. (73 mm) |
| Shipping Weight | 270 lbs (122 kg) |
| Shipping Dimensions | 28-1/2 in. W x 29-1/2 in. D x 35-3/4 in. H (724 x 749 x 908 mm) |
| Shipping Cube / Class | 17.39 cu ft / Class 85 |
| Certifications | ADA compliant; ENERGY STAR; cETLus; ETL Sanitation listed |
| Included | 1 peg rack, 1 combination rack |
| Warranty | 1-year parts and labor warranty (as stated by Jackson) |
| Notes | *Racks per hour calculated with NSF suggested load time of :30 for front opening dishmachines. **Gallons per hour calculated with NSF suggested load time of :30. |
