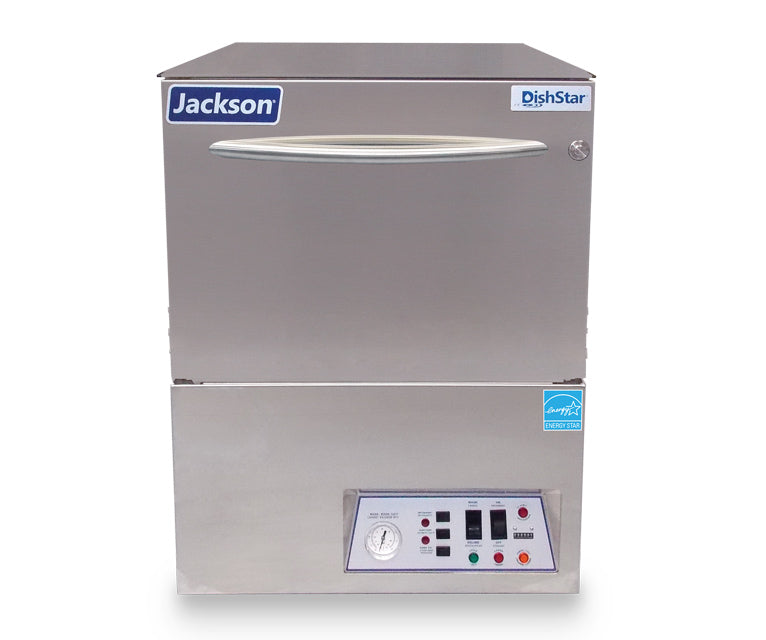

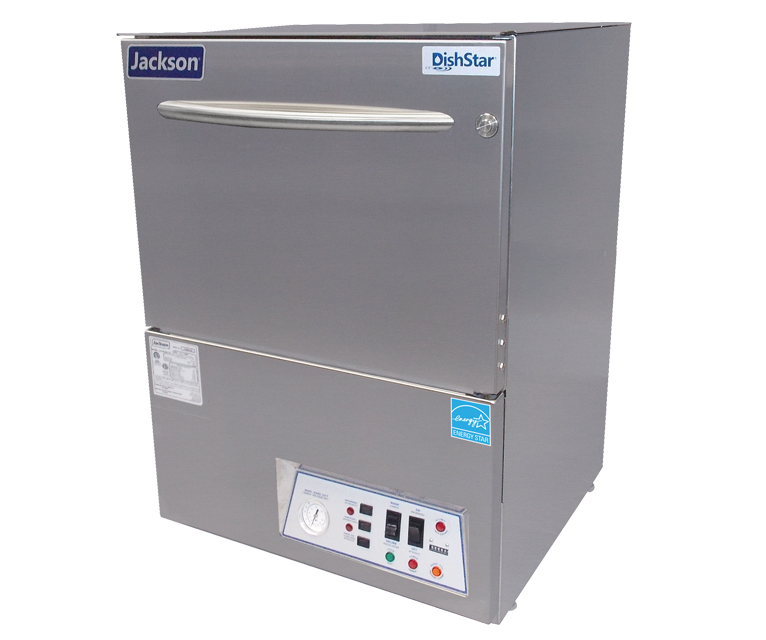

Why Jackson DishStar LT Low Temperature Undercounter Dishwasher?
The Jackson DishStar LT is a low temperature, chemical sanitizing undercounter dishwasher for kitchens without the electrical capacity for a booster heater. It runs on a standard 115V circuit, cleans 30 racks per hour on 1.16 gallons of water per rack, and is ENERGY STAR certified. The DishStar LTH version adds a 1.5 kW wash tank sustaining heater to hold wash water temperature between racks. Perfection Plaza offers both models for small restaurants, coffee shops and bars.
Performance & Key Features
- Two models: DishStar LT, and DishStar LTH with a built-in 1.5 kW sustaining heater in the wash tank.
- Throughput: 30 (24)* racks per hour, 750 dishes or 1,080 glasses per hour on a 120-second cycle, using 1.16 gallons of water per rack.
- Chemical sanitizing: Sanitizes at a 120°F minimum (140°F recommended) wash and rinse temperature, so no booster heater or high-amperage circuit is required.
- Fully automatic: Auto-fill and an automatic pumped drain for floor and wall drain installations.
- Chemical management: Built-in chemical pumps and priming switches with low chemical indicator lights.
- Self-draining pump: The stainless steel pump drains itself, preventing food soil and detergent carryover between wash and rinse.
- Delime cycle: A dedicated delime cycle supports routine scale removal.
- 115V operation: Runs on 115/60/1 power: LT 10.0 A total load; LTH 10.0 A total load with 16.25 A minimum circuit ampacity.
Build Quality & Design
- Insulated cabinet: Fully insulated cabinet keeps the exterior cool, runs quietly and adds energy efficiency.
- Door design: Labyrinth-style door design with a durable stainless steel handle contoured for a comfortable grip.

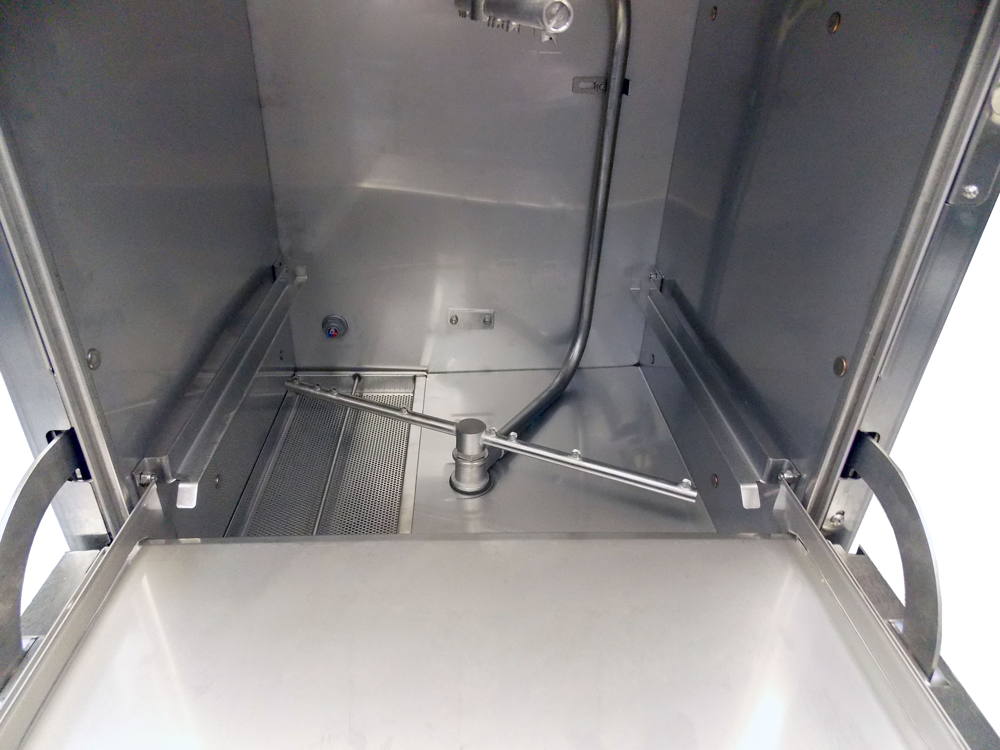

- Wash system: 1 HP wash pump and an above-water scrap basket.
- Racks included: Includes two dishracks, one peg and one combination.
Specifications
| Brand | Jackson WWS |
|---|---|
| Models | DishStar LT; DishStar LTH (with built-in sustaining heater) |
| Machine Type | Low temperature chemical sanitizing undercounter dishwasher, fill and dump design |
| Racks per Hour | 30 (24)* |
| Dishes per Hour | 750 |
| Glasses per Hour | 1,080 |
| Wash Temperature | 120°F (49°C) minimum; 140°F (60°C) recommended |
| Rinse Temperature | 120°F (49°C) minimum; 140°F (60°C) recommended |
| Operating Cycle (wash/rinse/dwell/total, sec.) | Normal 56/35/29/120 |
| Water per Rack | 1.16 gal (4.4 L) |
| Water per Hour | 34.80 gal (131.7 L); 27.84 gal (105.4 L)** |
| Wash Tank Capacity | 1.20 gal (4.5 L) |
| Incoming Water Temperature | 120°F (49°C) minimum; 140°F (60°C) recommended |
| Flow Pressure | 20 ± 5 PSI |
| Water Inlet | 3/4 in. male GHT; connect to a true 1/2 in. ID line |
| Drain Connection | 1 in. ID |
| Wash Pump Motor | 1 HP |
| Wash Tank Heater (DishStar LTH only) | 1.5 kW |
| DishStar LT, 115/60/1 | Total load 10.0 A; min. circuit ampacity 12.5 A; max. overcurrent protection 20.0 A |
| DishStar LTH, 115/60/1 | Total load 10.0 A; min. circuit ampacity 16.25 A; max. overcurrent protection 20.0 A |
| Width | 24-1/4 in. (615 mm) |
| Depth | 25 in. (635 mm) |
| Depth with Door Open | 41-3/4 in. (1061 mm) |
| Height | 33-5/16 in. (846 mm) |
| Inside Clearance Height | 14-1/4 in. (362 mm) |
| Wall Clearance | 1/4 in. (7 mm) |
| Drain Height | 1-5/8 in. (41 mm) |
| Net Weight | DishStar LT: 192 lbs (87 kg); DishStar LTH: 196 lbs (89 kg) |
| Shipping Weight | DishStar LT: 207 lbs (94 kg); DishStar LTH: 211 lbs (96 kg) |
| Shipping Dimensions | 29 in. W x 30 in. D x 39 in. H (737 x 762 x 991 mm) |
| Shipping Cube / Class | 19.64 cu ft / Class 85 |
| Certifications | ENERGY STAR; cETLus; ETL Sanitation listed |
| Included | 1 peg rack, 1 combination rack |
| Warranty | 1-year parts and labor warranty (as stated by Jackson) |
| Notes | *Racks per hour calculated with NSF suggested load time of :30 for front opening dishmachines. **Gallons per hour calculated with NSF suggested load time of :30. |
