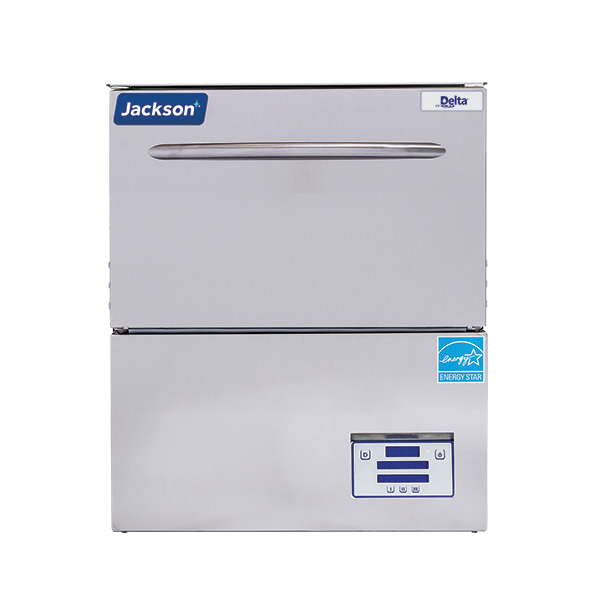

Why Jackson Delta HT-E-SEER Glasswasher?
The Jackson Delta HT-E-SEER is a high temperature sanitizing glasswasher built for bars and front-of-house service. Its Steam Elimination and Energy Recovery System (SEER) captures the vapor from each cycle to preheat incoming rinse water, so it runs on a cold water supply only and virtually eliminates steam at the bar. It cleans 24 racks, or 864 glasses, per hour on 0.60 gallons of water per rack and removes lipstick without chemical residue. It fits under a standard bar counter at 28-3/4 in. tall. Perfection Plaza supplies it with Jackson's spec sheet and manuals.
Performance & Key Features
- High temperature sanitizing: Washes and sanitizes glassware with hot water, removing lipstick with no chemical residue.
- Steam Elimination & Energy Recovery: SEER collects the hot water vapor from the wash and rinse cycles and uses it to preheat the incoming rinse water, which virtually eliminates steam at the bar.
- Single cold water connection: Runs from a cold water supply only (40-90°F incoming), saving energy and reducing steam for the operator.
- Soft Start: Helps protect glassware from chipping and breaking.
- Throughput: 24 (20)* racks or 864 glasses per hour (600 dishes) on Cycle I, using only 0.60 gallons of water per rack.
- Tall glassware clearance: 12 in. inside clearance accommodates taller stemware, glasses and mugs in standard 20 x 20 in. racks.
- Built-in booster heater: Sani-Sure final rinse system holds the 180°F minimum rinse temperature.
- Three selectable timed cycles: 145, 213 and 313 second total cycles for warewashing flexibility.
- Controls: Energy Saver Mode, digital LED temperature/operator display, delime cycle and a standard door interlock.
- Pumped drain and chemical pumps: Automatic pumped drain for floor and wall drain installations; built-in chemical pumps and priming switches.
- Also available: Tall/freestanding design (Delta HT-E-SEER-T) and short/underbar design (Delta HT-E-SEER-S).
Build Quality & Design
- Stainless steel construction: Stainless steel cabinet with a labyrinth-style door and door switch.
Specifications
| Brand | Jackson WWS |
|---|---|
| Model | Delta HT-E-SEER |
| Machine Type | High temperature sanitizing glasswasher with Steam Elimination & Energy Recovery, built-in booster heater, recirculating design |
| Racks per Hour (Cycle I) | 24 (20)* |
| Dishes per Hour | 600 |
| Glasses per Hour | 864 |
| Wash Temperature (minimum) | 155°F (68°C) |
| Rinse Temperature (minimum) | 180°F (82°C) |
| Cycle I (wash/rinse/dwell/vent/total, sec.) | 80/09/11/45/145 |
| Cycle II (sec.) | 148/09/11/45/213 |
| Cycle III (sec.) | 248/09/11/45/313 |
| Water per Rack | 0.60 gal (2.3 L) |
| Water per Hour | 14.40 gal (54.5 L); 12.00 gal (45.4 L)** |
| Wash Tank Capacity | 3.00 gal (11.4 L) |
| Rinse Tank Capacity | 1.66 gal (6.3 L) |
| Incoming Water Temperature | 40-90°F (5-33°C) |
| Flow Pressure | 10 PSI |
| Water Inlet | 3/4 in. male GHT; connect to a true 1/2 in. ID line |
| Drain Connection | 5/8 in. ID |
| Wash Pump Motor | 3/4 HP |
| Wash Tank Heater | 208V: 3.3 kW; 230V: 4.0 kW |
| Rinse Tank Heater | 208V: 4.1 kW; 230V: 5.2 kW |
| 208/60/1 | Total load 26.3 A; min. circuit ampacity 27.9 A; max. overcurrent protection 30.0 A |
| 230/60/1 | Total load 29.2 A; min. circuit ampacity 30.8 A; max. overcurrent protection 35.0 A |
| Width | 24-1/4 in. (615 mm) |
| Depth | 26-7/8 in. (692 mm) |
| Depth with Door Open | 40-7/8 in. (1037 mm) |
| Height | 28-3/4 in. (730 mm) |
| Inside Clearance Height | 12 in. (304 mm) |
| Wall Clearance | 1/4 in. (7 mm) |
| Drain Height | 2-7/8 in. (73 mm) |
| Net Weight | 260 lbs (118 kg) |
| Shipping Weight | 275 lbs (125 kg) |
| Shipping Dimensions | 29 in. W x 30 in. D x 39 in. H (737 x 762 x 991 mm) |
| Shipping Cube / Class | 19.64 cu ft / Class 85 |
| Certifications | ENERGY STAR; cETLus; ETL Sanitation listed |
| Rack Size | Standard 20 x 20 in. racks |
| Warranty | 1-year parts and labor warranty (as stated by Jackson) |
| Notes | *Racks per hour calculated with NSF suggested load time of :30 for front opening dishmachines. **Gallons per hour calculated with NSF suggested load time of :30. |
