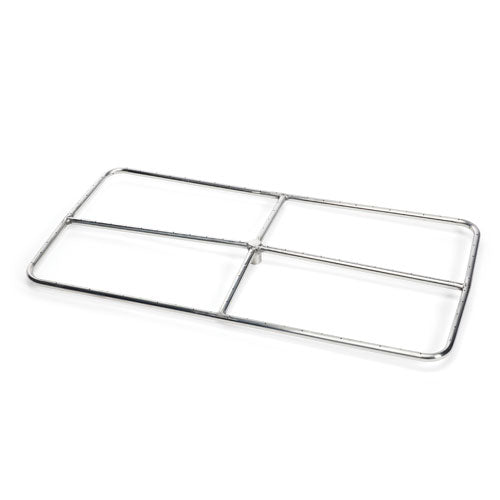

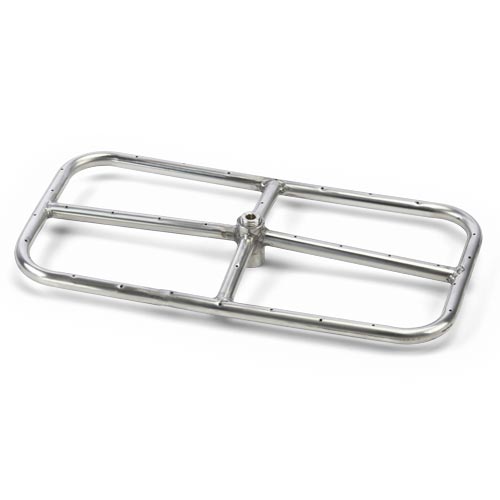

The HPC Fire rectangle fire ring is a 304 stainless steel burner for rectangular fire pits and tables, with staggered ports for a fuller flame and a raised hub that keeps water out of the gas line. Sizes run from 12" x 6" to a 48" x 24" high-capacity burner.
Key Features
- Staggered ports: Give a fuller, more even flame.
- Raised hub: Keeps water out of the valve and gas line.

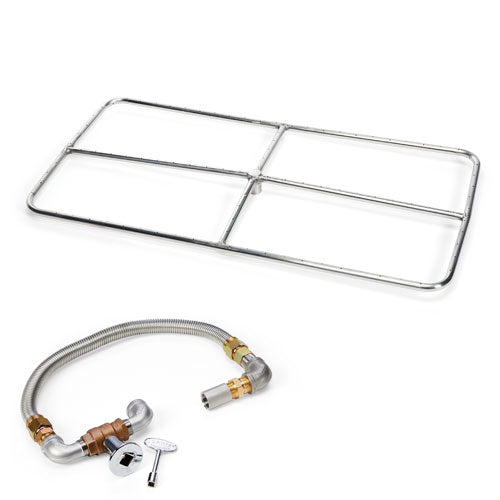

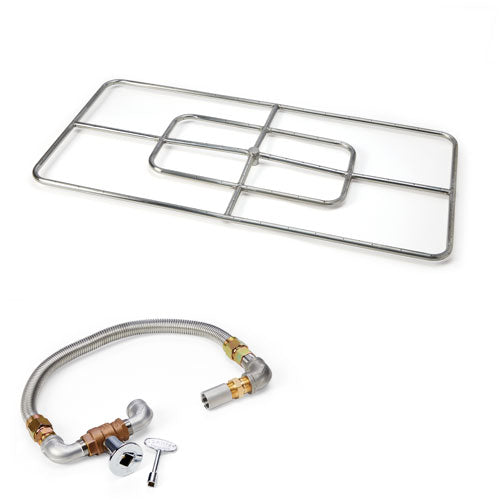

- Two kit styles: Choose "Just the burner" for the burner kit only, or "Burner, valve, polished flange and flex line" for a match lit kit with the key valve, polished chrome flange and flex line.
Specifications
| Specification | Details |
|---|---|
| Brand | HPC Fire |
| Model | FRSR-[size] KIT; HC = high capacity; LP versions end in LP |
| Material | 304 stainless steel |

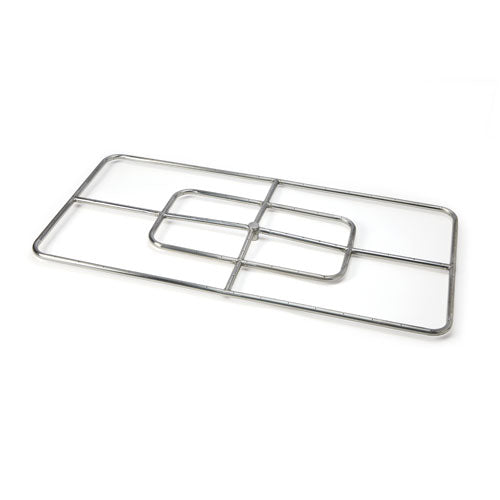

| Sizes | 12x6", 18x9", 24x12" (natural gas only), 36x18", 48x24" HC |
| Gas | Natural gas or liquid propane |
Sizes and BTU (HPC burner drawing)
| Size | Recommended BTU | Hub size |
|---|---|---|
| 12" x 6" | 90K | 1/2" |
| 18" x 9" | 150K | 1/2" |
| 24" x 12" | 150K | 1/2" |
| 36" x 18" | 200K | 1/2" |
| 48" x 24" HC | 300K | 3/4" |
Installation & Requirements
- For fixed piping systems only; residential gas pressure only. Natural gas supply pressure: minimum 3.5" W.C., maximum 7.0" W.C. LP: minimum 8" W.C., maximum 11.0" W.C.
- Enclosures: up to 200K BTU need at least 2 vents of 18 sq. in. each on opposing sides; above 200K BTU need at least 4.
- Bowls (copper, concrete or metal): up to 90K BTU need at least 2 vents of 9 sq. in. on opposing sides, or the bowl raised at least 3/4" with a hole of at least 6" diameter in the bottom.
- These are burner components; they are not certified fire pit inserts. Follow local codes and have a qualified gas professional connect the gas supply.
Warranty: HPC lists a lifetime warranty on its stainless steel fire pit burners (HPC manuals); coverage is for parts and HPC in-house labor, excluding installation labor and damage from overheating, modification or abuse.
