HPC Fire burner pans in #304 stainless steel, in round and square bowl or flat styles and rectangular bowl pans, from 8" to 90". Each pan has a welded nipple at the center for the gas connection, and high-capacity (HC) pans use a 3/4" hub for larger burners.
Key Features
- 304 stainless steel: All HPC pans are #304 stainless steel.
- Bowl or flat: Bowl pans have a 1.25" lip and hold media; flat pans sit shallow for fire tables.
- Welded nipple: A 1/2" or 3/4" (HC) welded nipple at the center connects the gas supply.
Specifications
| Specification | Details |
|---|---|
| Brand | HPC Fire |
| Material | #304 stainless steel |
| Styles | Round bowl (570), round flat (571), square bowl (570-SQ), square flat (571-SQ), rectangle bowl (570-AxB) |
| Hub | 1/2" standard; 3/4" on HC models |
Round pans (HPC drawings)
| Model | Size | Hub |
|---|---|---|
| 570-13 | 13" bowl | 1/2" |
| 570-19 | 19" bowl | 1/2" |
| 570-25 | 25" bowl | 1/2" |
| 570-31 / 31HC | 31" bowl | 1/2" / 3/4" |
| 570-37HC | 37" bowl | 3/4" |
| 570-43HC | 43" bowl | 3/4" |

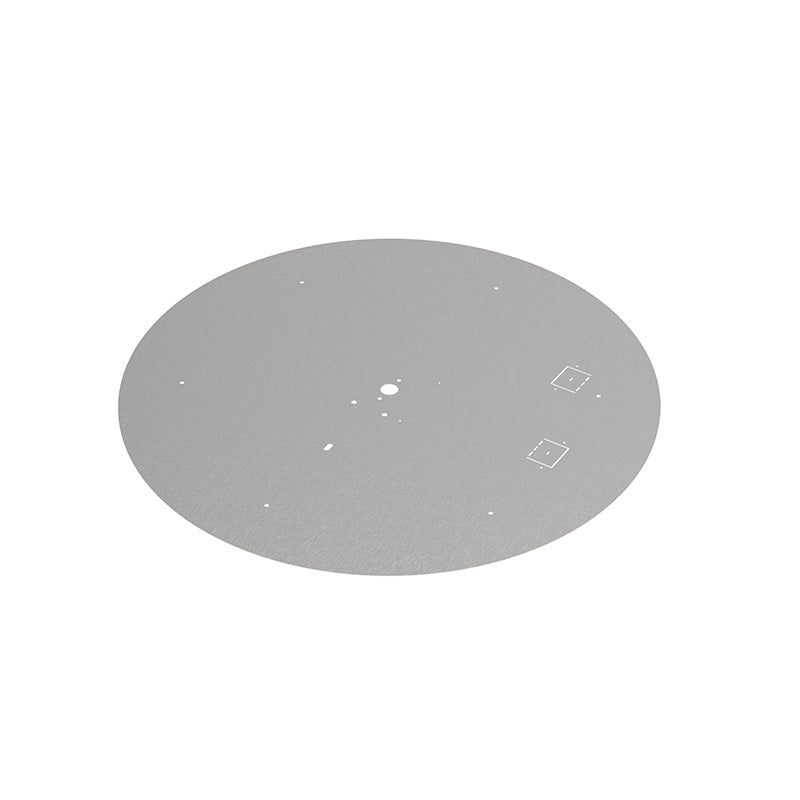

| 571-8 to 571-36 | 7.75" to 35.75" flat | 1/2" |
| 571-36HC / 42HC / 54HC | 35.75" / 41.75" / 53.75" flat | 3/4" |
Square and rectangle pans (HPC drawings)
| Model | Size | Hub |
|---|---|---|

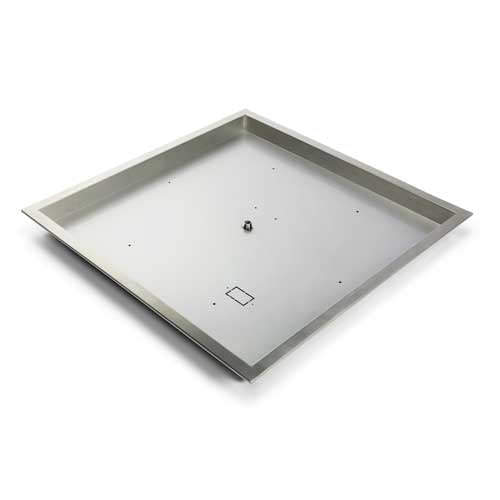

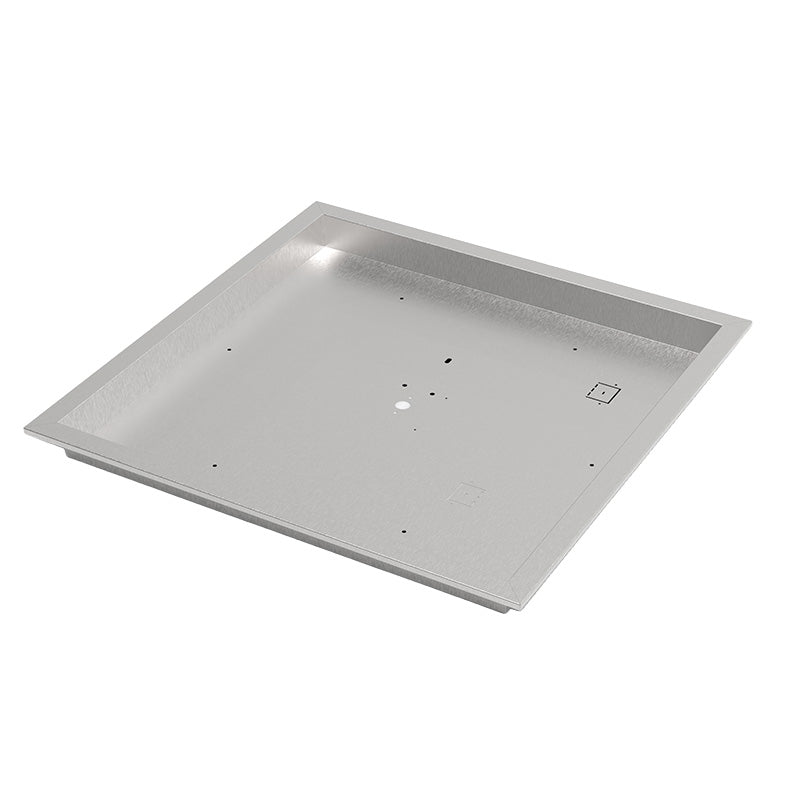

| 570-18SQ / 24SQ / 30SQ | 18" / 24" / 30" square bowl | 1/2" |
| 570-36HCSQ / 42HCSQ | 36" / 42" square bowl | 3/4" |

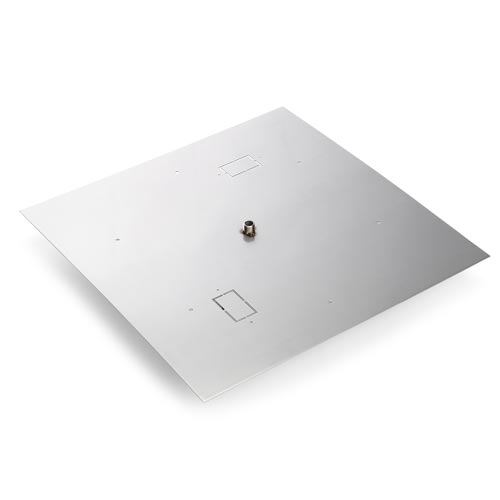

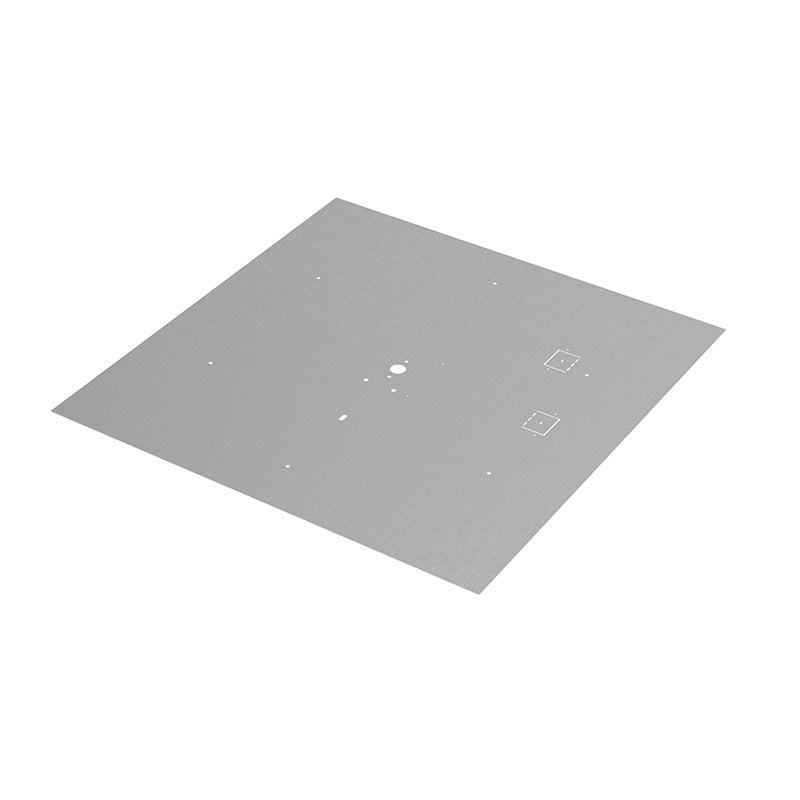

| 571-18SQ / 24SQ / 30SQ | 18" / 24" / 30" square flat | 1/2" |
| 571-36HCSQ / 42HCSQ | 36" / 42" square flat | 3/4" |

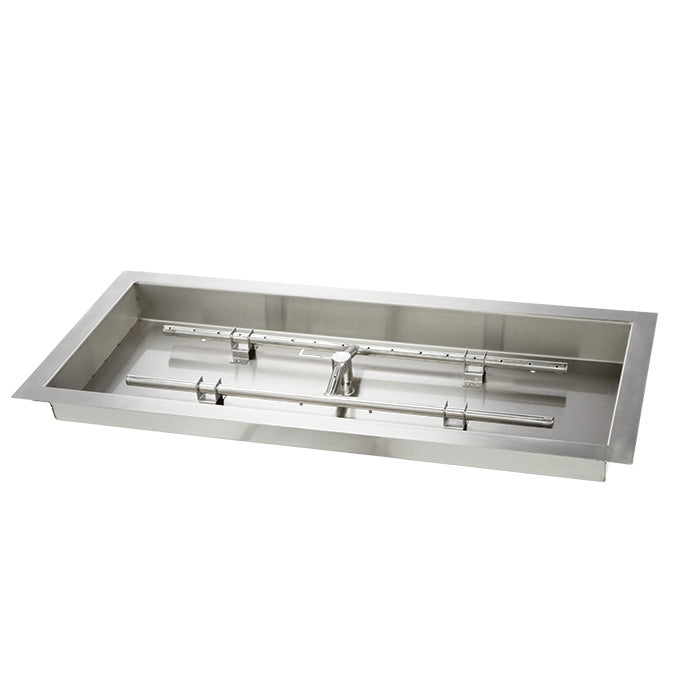

| 570-24X12 to 570-90X16 | 24x12" to 90x16" rectangle bowl | Not listed |
Installation & Requirements
- Venting per HPC: enclosures up to 200K BTU need at least 2 vents of 18 sq. in. on opposing sides; above 200K BTU at least 4.
Warranty: HPC lists 5 years residential and 1 year commercial on stainless steel fire pit pans (HPC manuals); coverage is for parts and HPC in-house labor.
