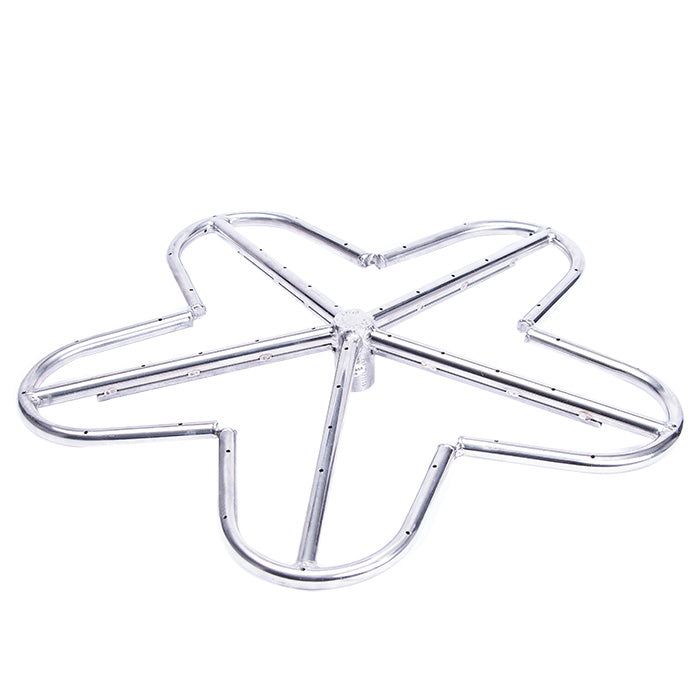

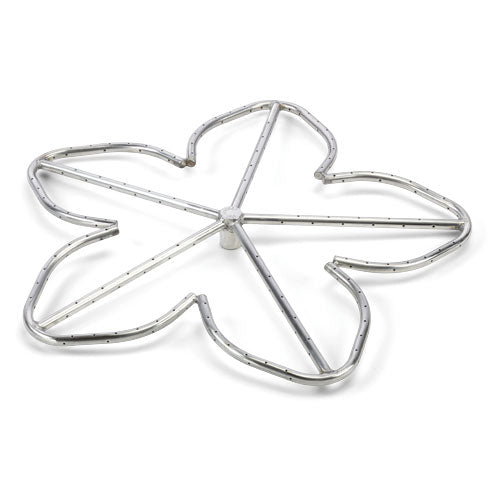

The HPC Fire Penta is a patented five-point stainless steel fire pit burner that gives a full, even campfire-style flame with lava rock or fire glass, including on low settings where concentric rings show a ring pattern. It comes as a burner kit or as a match lit kit with valve, polished flange and flex line, in six sizes from 12" to 48", for natural gas or propane.
Key Features
- Patented Penta design: Holes drilled at the 12 o'clock position of the tubing give a broader flame and avoid the ring look of concentric burners on low.

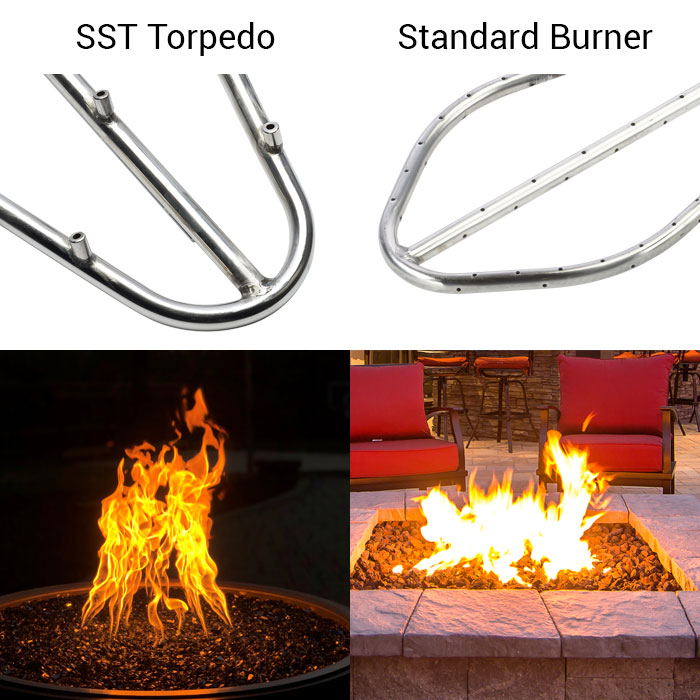

- Torpedo burner: The torpedo version on the site raises the recommended BTU at every size (see the chart).

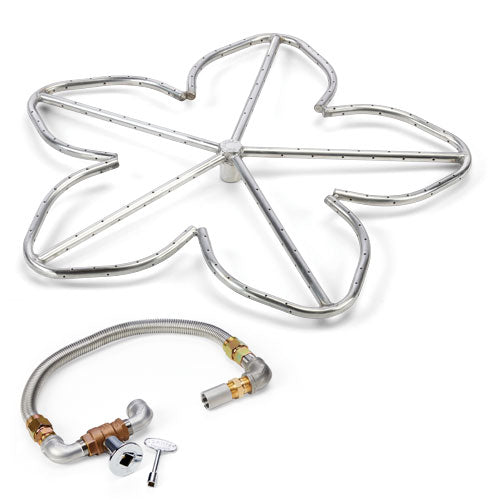

- Two kit styles: Choose "Just the burner" for the burner kit only, or "Burner, valve, polished flange and flex line" for a match lit kit with the key valve, polished chrome flange and flex line.
- 304 stainless steel: All HPC burners are 304 stainless steel.
Specifications
| Specification | Details |
|---|---|
| Brand | HPC Fire |
| Model | TOR-PENTA[size] KIT (burner kit); TOR-FPS/PENTA[size] KIT (with valve, flange and flex line); LP versions end in LP |
| Material | 304 stainless steel |
| Sizes | 12", 18", 24", 30", 36", 48" |
| Burner | Torpedo Penta |
| Gas | Natural gas or liquid propane |
Sizes and BTU (HPC burner drawing)
| Size | Recommended BTU, standard Penta | Recommended BTU, torpedo | Hub size |
|---|---|---|---|
| 12" | 65K | 100K | 1/2" |
| 18" | 125K | 175K | 1/2" |
| 24" | 200K | 250K | 1/2" |
| 30" | 250K | 300K | 3/4" |
| 36" | 300K | 350K | 3/4" |
| 48" | 300K | 350K | 3/4" |
Installation & Requirements
- For fixed piping systems only; residential gas pressure only. Natural gas supply pressure: minimum 3.5" W.C., maximum 7.0" W.C. LP: minimum 8" W.C., maximum 11.0" W.C.
- Enclosures: up to 200K BTU need at least 2 vents of 18 sq. in. each on opposing sides; above 200K BTU need at least 4.
- Bowls (copper, concrete or metal): up to 90K BTU need at least 2 vents of 9 sq. in. on opposing sides, or the bowl raised at least 3/4" with a hole of at least 6" diameter in the bottom.
- These are burner components; they are not certified fire pit inserts. Follow local codes and have a qualified gas professional connect the gas supply.
Warranty: HPC lists a lifetime warranty on its stainless steel fire pit burners (HPC manuals); coverage is for parts and HPC in-house labor, excluding installation labor and damage from overheating, modification or abuse.
