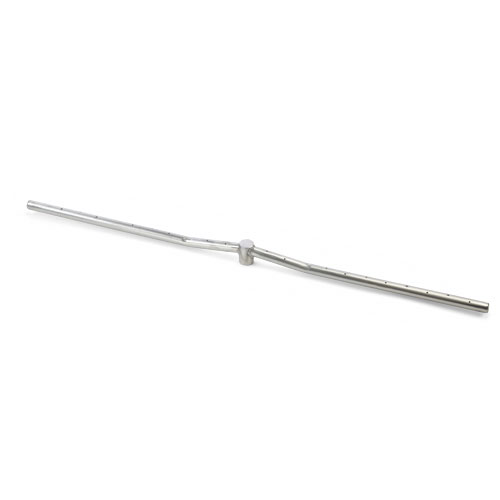

The HPC Fire Linear T-Burner is a straight 304 stainless steel torpedo burner made by HPC for linear fire tables, troughs and long fire features. It comes in seven lengths from 24" to 120", as a burner kit or with valve, flange and flex line.
Key Features
- Straight T-burner: One flame line along the length of the feature.

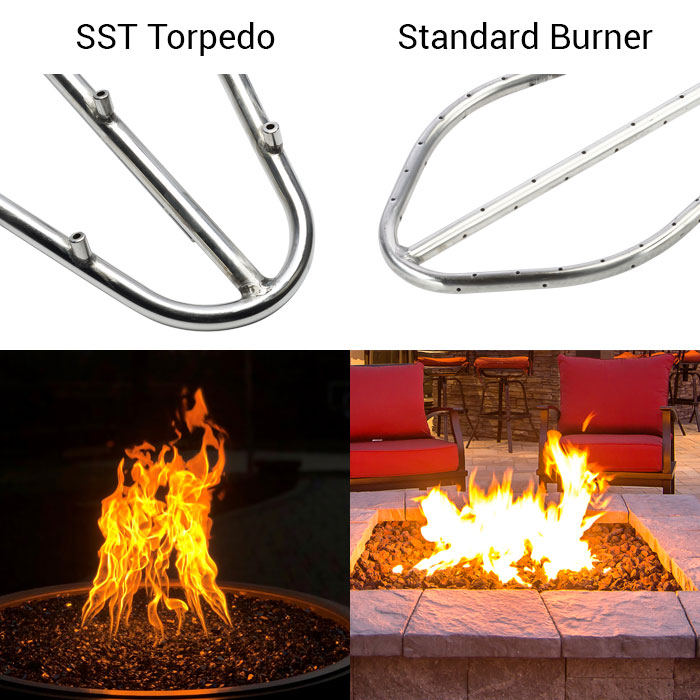

- Torpedo burner: Torpedo versions raise the recommended BTU (see the chart).
- Two kit styles: Choose "Just the burner" for the burner kit only, or "Burner, valve, polished flange and flex line" for a match lit kit with the key valve, polished chrome flange and flex line.
Specifications
| Specification | Details |
|---|---|
| Brand | HPC Fire |
| Model | TOR-LTBSS[length] KIT; LP versions end in LP; TOR-FPS/TRGH kits include valve, flange and flex line |
| Material | #304 stainless steel |
| Lengths | 24", 36", 48", 60", 72", 96", 120" |
| Gas | Natural gas or liquid propane |
Sizes and BTU (HPC burner drawing)
| Length | Recommended BTU, standard | Recommended BTU, torpedo | Hub size |
|---|---|---|---|
| 24" | 50K | 100K | 1/2" |
| 36" | 75K | 125K | 1/2" |
| 48" | 100K | 150K | 1/2" |
| 60" | 125K | 175K | 1/2" |
| 72" | 150K | 200K | 1/2" |
| 96" | 200K | 250K | 1/2" |
| 120" | 250K | 300K | 1/2" |
Installation & Requirements
- For fixed piping systems only; residential gas pressure only. Natural gas supply pressure: minimum 3.5" W.C., maximum 7.0" W.C. LP: minimum 8" W.C., maximum 11.0" W.C.
- Enclosures: up to 200K BTU need at least 2 vents of 18 sq. in. each on opposing sides; above 200K BTU need at least 4.
- Bowls (copper, concrete or metal): up to 90K BTU need at least 2 vents of 9 sq. in. on opposing sides, or the bowl raised at least 3/4" with a hole of at least 6" diameter in the bottom.
- These are burner components; they are not certified fire pit inserts. Follow local codes and have a qualified gas professional connect the gas supply.
Warranty: HPC lists a lifetime warranty on its stainless steel fire pit burners (HPC manuals); coverage is for parts and HPC in-house labor, excluding installation labor and damage from overheating, modification or abuse.
