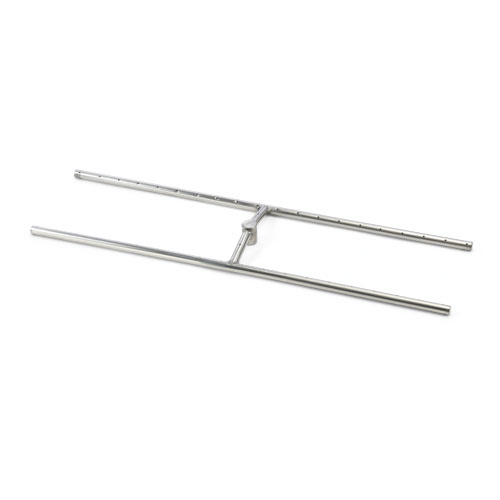

The HPC Fire H-Burner is a 304 stainless steel burner with a bottom inlet whose flames point inward, giving a full flame that also hides the burner itself. It works in outdoor fire pits and indoor gas fireplaces, in eight sizes from 18" x 6" to 84" x 10".
Key Features
- Inward-pointing flame: The H layout gives a full flame and hides the burner in the media.
- Bottom inlet: Gas enters from below the burner.

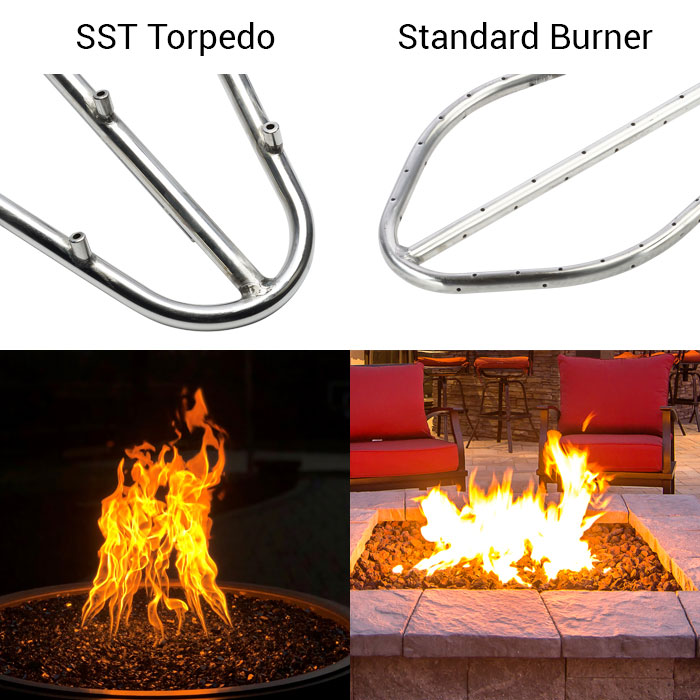

- Torpedo burner: Torpedo versions raise the recommended BTU (see the chart).
- Two kit styles: Choose "Just the burner" for the burner kit only, or "Burner, valve, polished flange and flex line" for a match lit kit with the key valve, polished chrome flange and flex line.
Specifications
| Specification | Details |
|---|---|
| Brand | HPC Fire |
| Model | TOR-HBSB[size] KIT; TOR-FPS/HBSB[size] KIT with valve, flange and flex line; LP versions end in LP |
| Material | 304 stainless steel |
| Sizes | 18x6", 24x6", 30x8", 36x8", 48x10", 60x10", 72x10", 84x10" |
| Gas | Natural gas or liquid propane |
Sizes and BTU (HPC burner drawing)
| Size | Recommended BTU, standard | Recommended BTU, torpedo | Hub size |
|---|---|---|---|
| 18" x 6" | 60K | 125K | 1/2" |
| 24" x 6" | 90K | 150K | 1/2" |
| 30" x 8" | 90K | 175K | 1/2" |
| 36" x 8" | 150K | 200K | 1/2" |
| 48" x 10" | 150K | 250K | 1/2" |
| 60" x 10" | 250K | 300K | 1/2" |
| 72" x 10" | 300K | 300K | 1/2" |
| 84" x 10" | 300K | 300K | 1/2" |
Installation & Requirements
- For fixed piping systems only; residential gas pressure only. Natural gas supply pressure: minimum 3.5" W.C., maximum 7.0" W.C. LP: minimum 8" W.C., maximum 11.0" W.C.
- Enclosures: up to 200K BTU need at least 2 vents of 18 sq. in. each on opposing sides; above 200K BTU need at least 4.
- Bowls (copper, concrete or metal): up to 90K BTU need at least 2 vents of 9 sq. in. on opposing sides, or the bowl raised at least 3/4" with a hole of at least 6" diameter in the bottom.
- These are burner components; they are not certified fire pit inserts. Follow local codes and have a qualified gas professional connect the gas supply.
Warranty: HPC lists a lifetime warranty on its stainless steel fire pit burners (HPC manuals); coverage is for parts and HPC in-house labor, excluding installation labor and damage from overheating, modification or abuse.
