The ITALFORNI Visor is a multifunction electric deck oven for pizza, pastry and bread with a refractory-lined chamber and a maximum of 450°C (842°F). The VS70 bakes 6 pizzas of 35 cm (13.8 in) per deck and the VS105 bakes 9, stacked one to three high, with a choice of hood module or motorised design hood and optional side covers.
Key Features
- Refractory chamber, fast heat-up: Hype elements inside the baking floor and exposed elements above heat a refractory-lined chamber quickly and recover between loads.
- Separate floor and ceiling power: Hyper P-Heating regulates each digitally from a touch screen panel.

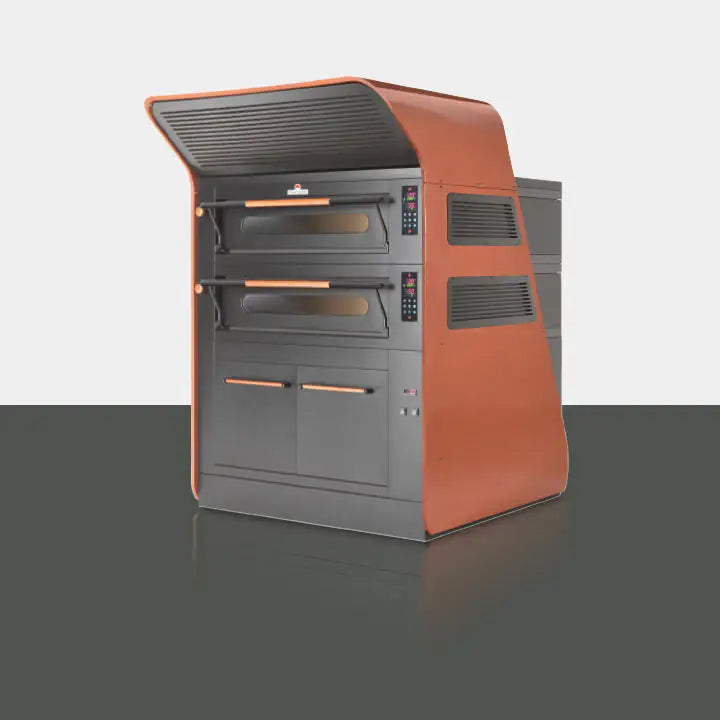

- Three looks from one oven: Start from the basic VN model and add a hood and side covers to suit the room (MultiDesign).

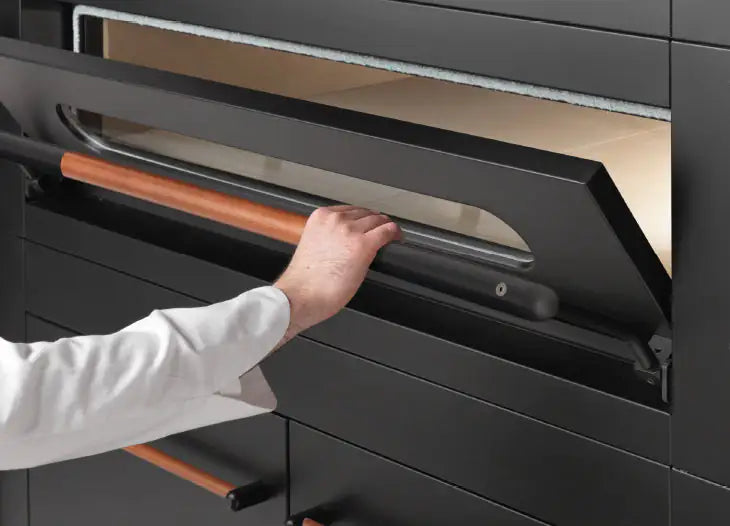

- Comfortable to work: Full-length tempered-glass door on a counter-balanced hinge, solid-wood handle, Lighting Plus and an adjustable steam exhaust valve; Fold 3D Tech insulation limits outward heat.
Specifications
| Specification | VS70 | VS105 |
|---|---|---|
| Pizzas per deck, Ø 35 cm (13.8 in) | 6 | 9 |
| Baking pans 60 × 40 cm per deck | 2 | 4 |
| Chamber, internal (H × W × D) | 17 × 105 × 70 cm (6.7 × 41.3 × 27.6 in) | 17 × 105 × 105 cm (6.7 × 41.3 × 41.3 in) |
| External dimensions (H × W × D) | 40 × 144 × 100 cm (15.7 × 56.7 × 39.4 in) | 40 × 144 × 135 cm (15.7 × 56.7 × 53.1 in) |
| Weight | 205 kg (452 lb) | 235 kg (518 lb) |
| Electrical supply | 400 V / 3 ph / 50-60 Hz | 400 V / 3 ph / 50-60 Hz |
| Power | 9 kW max; 4.5 kW/h average | 11 kW max; 5.5 kW/h average |
| Current draw | 11 A | 16 A |
| Temperature range | 0 to 450°C (32 to 842°F) | 0 to 450°C (32 to 842°F) |
Matching hoods, provers and stands
| Component | For VS70 | For VS105 |
|---|---|---|
| Hood module without motor | KVS70: 16 × 144 × 100 cm (6.3 × 56.7 × 39.4 in), 23 kg (51 lb) | KVS105: 16 × 144 × 135 cm (6.3 × 56.7 × 53.1 in), 28 kg (62 lb) |
| Design extractor hood with motor | KDVS70: 42 × 148 × 145 cm (16.5 × 58.3 × 57.1 in), 45 kg (99 lb); 230 V / 1 ph, 0.3 kW | KDVS105: 42 × 148 × 160 cm (16.5 × 58.3 × 63 in), 56 kg (123 lb); 230 V / 1 ph, 0.3 kW |
| Prover (hermetic, with wheels) | BVS70: 70/50 × 144 × 100 cm (27.6/19.7 × 56.7 × 39.4 in), 100 kg (220 lb), 6 pans; 230 V / 1 ph, 1 kW max, 0.5 kW/h average | BVS105: 70/50 × 144 × 135 cm (27.6/19.7 × 56.7 × 53.1 in), 125 kg (276 lb), 12 pans; 230 V / 1 ph, 1 kW max, 0.5 kW/h average |
| Stand (with wheels) | SVS70: 86/70/50 × 145 × 100 cm (33.9/27.6/19.7 × 57.1 × 39.4 in), 50/43/36 kg (110/95/79 lb), 6 pans | SVS105: 86/70/50 × 145 × 135 cm (33.9/27.6/19.7 × 57.1 × 53.1 in), 50/48/40 kg (110/106/88 lb), 9 pans |
Installation & Requirements
- Power: Requires a 400 V, 3-phase supply. Italforni has not confirmed a US-voltage version or US certification for the Visor series; ask us before ordering for a US site.
Sold separately: VRE steamer (adds 21 cm / 8.3 in depth, 1.4 kW/h); EXT hood extractor for KVS hoods (adds 27 cm / 10.6 in height); AKB steam damper kit with activated carbon filter for KDVS hoods; CAL side covers (2 pieces); PPD prover feet (8 to 20 cm / 3.1 to 7.9 in). Package variants of this product include the stand or prover and hood named in the variant.
Ordering & Lead Time
- Factory direct from Italforni in Italy, with a total lead time of 6 to 8 weeks.
- Final sale: not eligible for change-of-mind returns. Full manufacturer warranty and damaged-on-arrival protection still apply.
