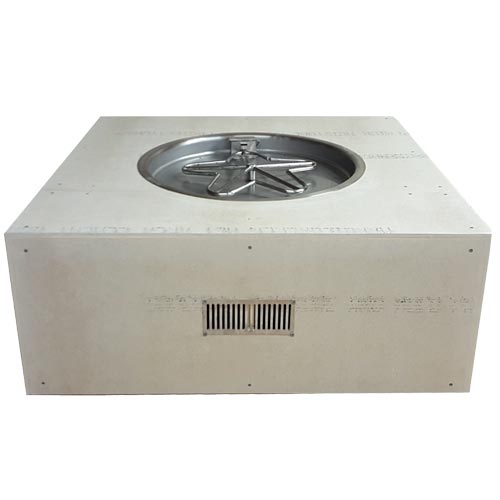

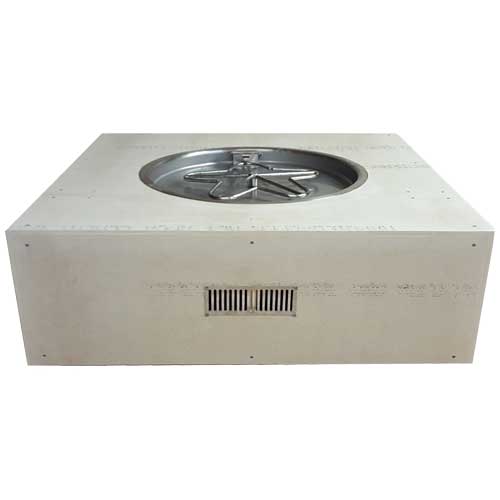

The HPC Fire Square Ready-to-Finish fire pit is a complete kit: an unfinished enclosure with a welded steel frame and cement board shell, plus a CSA certified stainless steel insert, ready to be finished in stone, veneer or stucco. It comes in a 45" square, 18" tall size with electronic, push button or match lit ignition, a standard or torpedo burner where offered, and natural gas or propane.
Key Features
- Ready to finish: The unfinished enclosure takes stone, veneer, stucco or other finishing material to match the patio or outdoor kitchen.
- Welded steel frame, cement board shell: .065 mild steel welded frame with a 1/2" cement board shell; the enclosure weighs 150 lbs.
- Fully assembled insert: The CSA certified insert arrives fully assembled with the enclosure.
- Three ignition systems: Electronic ignition (On/Off, 120VAC or 24VAC), push button flame sensing on an AA battery, or match lit.
Specifications
| Specification | Details |
|---|---|
| Brand | HPC Fire |
| Series | Ready-to-Finish (RTF) enclosure with insert |
| Construction | .065 mild steel welded frame, 1/2" cement board shell |
| Enclosure weight | 150 lbs (HPC drawing) |
| Insert | 25" stainless bowl pan with 18" Penta burner (PENTA25 EI, FPPK or MLFPK; add TOR- for torpedo) |
| Ignition | Electronic On/Off (120VAC or 24VAC); push button flame sensing (AA battery); match lit |
| Included, electronic models | Enclosure fully assembled, insert, input flex line, instructions |
| Included, push button models | Enclosure fully assembled, insert, mounting sleeve, instructions |
| Included, match lit models | Enclosure fully assembled, insert, instructions |
| Gas | Natural gas or liquid propane |
| Certification | Insert CSA certified, outdoor use only, for commercial and residential use (HPC drawing) |
Sizes and BTU (HPC drawing)
| Model | Enclosure size | Electronic | Push button | Match lit |
|---|---|---|---|---|
| U45S | 45" x 18" | 125K | 125K | 65K |
Installation & Requirements
- The enclosure has full open venting along the bottom; keep venting clear of debris and finishing material, and provide adequate drainage.
- The frame is pre-cut for push button or match lit valves; the board is not pre-cut.
- Gas supply: fixed piping systems only; not for use with small tanks.
- Natural gas supply pressure: minimum 3.5" W.C., maximum 7.0" W.C. LP supply pressure: minimum 8.0" W.C., maximum 11.0" W.C.
- Any flex line from the permanent gas supply must be rated to the product's maximum BTU and certified to ANSI Z21.75/CSA 6.27.
- Modifying the product voids its certification and warranty. Follow HPC's installation instructions and local codes.
Warranty: HPC warrants its fire pits against manufacturing defects that prevent safe and correct function: stainless steel burners, lifetime; electronics and gas valve, 3 years residential and 1 year commercial; pilot assembly, 2 years residential and 1 year commercial; stainless steel pan and valve box, 5 years residential and 1 year commercial. Coverage runs from the date of original sale or shipment from HPC and covers parts and HPC in-house labor through an HPC return authorization; installation and maintenance labor and damage from overheating, modification, abuse or improper storage are not covered.
