The HPC Fire Small Tank Ready-to-Finish kit gives a propane fire pit a built-in look while the LP tank stays hidden inside the enclosure, for patios with no natural gas line. Each kit includes the unfinished enclosure, a fully assembled insert, flex line and instructions, ready to finish in concrete, brick or stone. Choose a round, square or rectangle enclosure with push button flame sensing or match lit ignition and a standard or torpedo burner.
Key Features

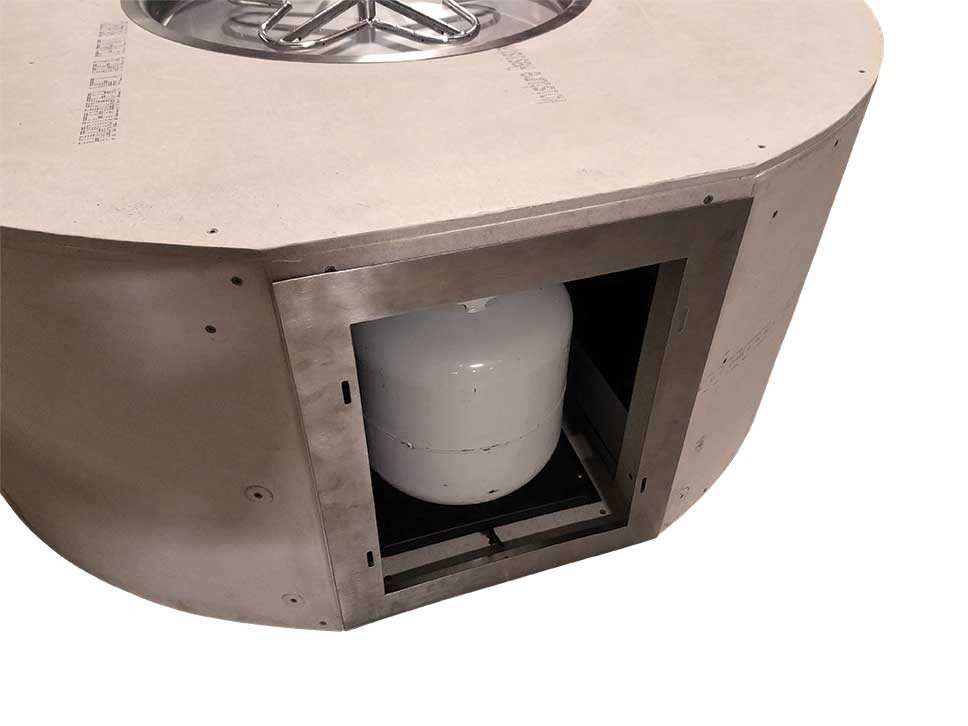

- Hidden propane tank: The tank sits inside the enclosure, so no gas line is needed.
- Ready to finish: The unfinished enclosure takes concrete, brick, stone or other finishing material.
- Flame sensing on push button models: Push button models use HPC's flame control technology to monitor the flame.
- 24" gas flex line: The included flex line makes hookup and testing easier.
- Six configurations: Round 60", square 54", or 70" or 80" rectangles with an H-burner, trough or interlink insert.
Specifications
| Specification | Details |
|---|---|
| Brand | HPC Fire |
| Series | Ready-to-Finish Small Tank (UST) |
| Gas | Liquid propane, small tank only |
| Ignition | Push button flame sensing (90K BTU) or match lit (65K BTU) |
| Burner | Standard or torpedo |
| Included | Enclosure, fully assembled insert, 24" flex line, instructions |
| Certification | Insert CSA certified (HPC product text) |
Configurations (HPC drawings)
| Model | Enclosure | Pan | Burner | BTU (push button / match lit) |
|---|---|---|---|---|

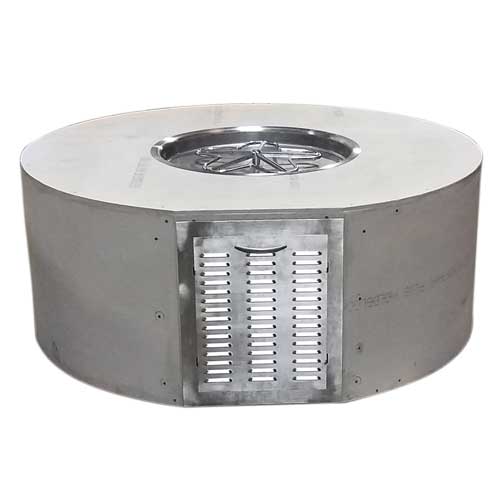

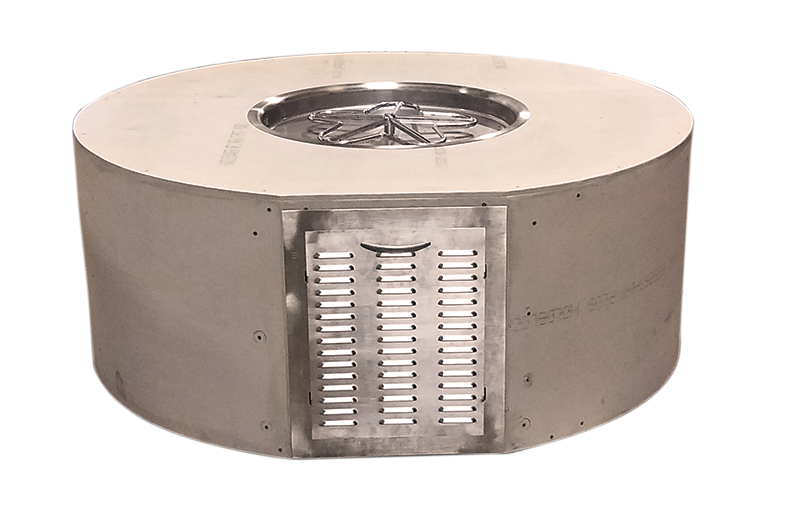

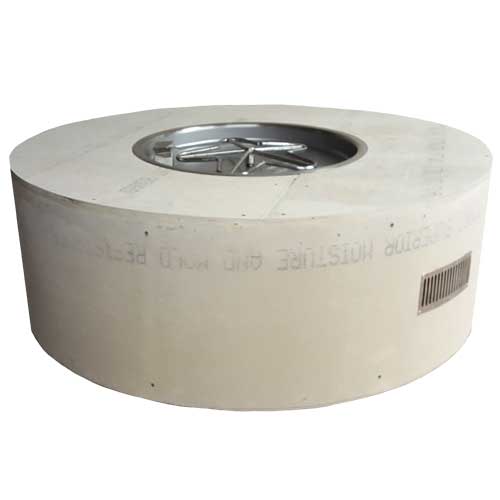

| UST60R | 60" x 23.5" round | 25" | 18" Penta | 90K / 65K |

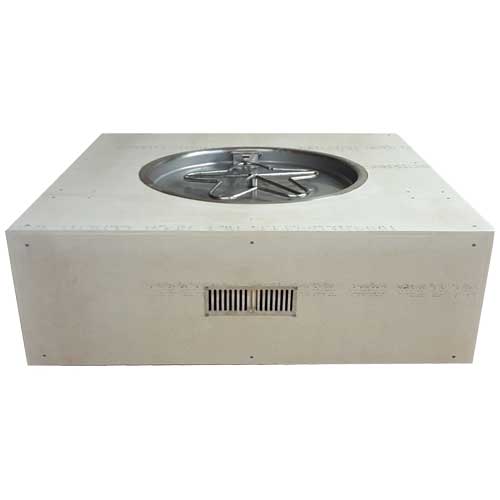

| UST54S | 54" x 54" x 23.5" | 25" | 18" Penta | 90K / 65K |

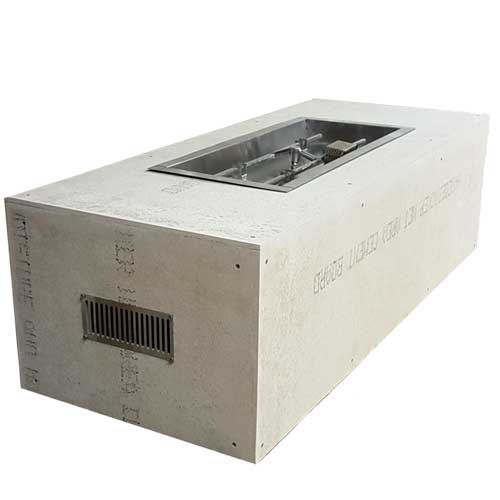

| UST70X24/36X14 | 70" x 24" x 23.5" | 36" x 14" | 30" x 8" H-burner | 90K / 65K |
| UST70X24/36 | 70" x 24" | 36" trough | 36" | Not listed on drawing |

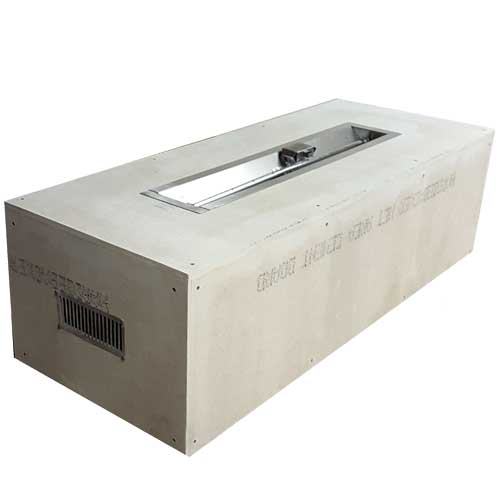

| UST80X24/48 | 80" x 24" x 23.5" | 48" trough | 48" | 90K / 65K |

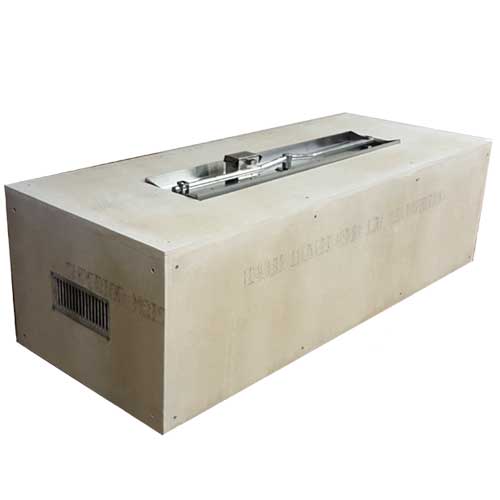

| UST80X24/49X8 | 80" x 24" x 23.5" | 49" x 8" interlink | 48" | 90K / 65K |
Installation & Requirements
- Gas supply: for use with small LP tanks. LP operating supply pressure: minimum 8.0" W.C., maximum 11.0" W.C.
- Do not block the enclosure venting.
- Modifying the product voids its certification and warranty. Follow HPC's installation instructions and local codes.
Warranty: HPC warrants its fire pits against manufacturing defects that prevent safe and correct function: stainless steel burners, lifetime; electronics and gas valve, 3 years residential and 1 year commercial; pilot assembly, 2 years residential and 1 year commercial; stainless steel pan and valve box, 5 years residential and 1 year commercial. Coverage runs from the date of original sale or shipment from HPC and covers parts and HPC in-house labor through an HPC return authorization; installation and maintenance labor and damage from overheating, modification, abuse or improper storage are not covered.
