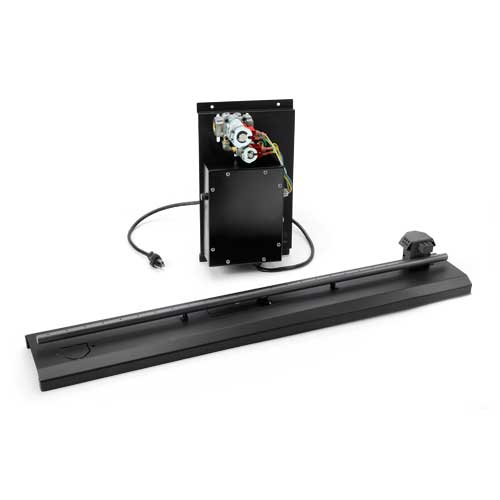

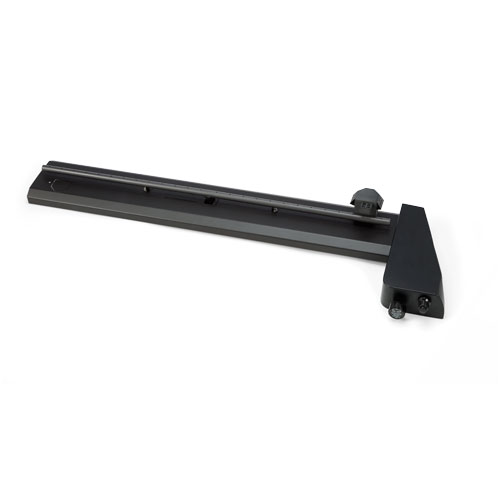

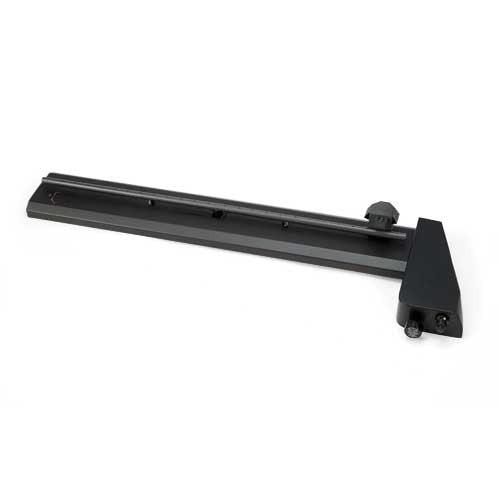

The HPC Fire Linear Outdoor Gas Fireplace burner converts a wood-burning outdoor fireplace to gas, so the fire starts and stops on demand with no smoke, embers or wood to cut. It comes in six sizes for fireplaces from 36" to 96" wide, with electronic or push button flame sensing ignition.
Key Features
- Six sizes: For outdoor fireplaces from 36" to 96" wide.
- Low-profile burner: A low linear burner with weep holes built in to shed water.
- Black powder-coated stainless: Stainless steel with a black powder coat.

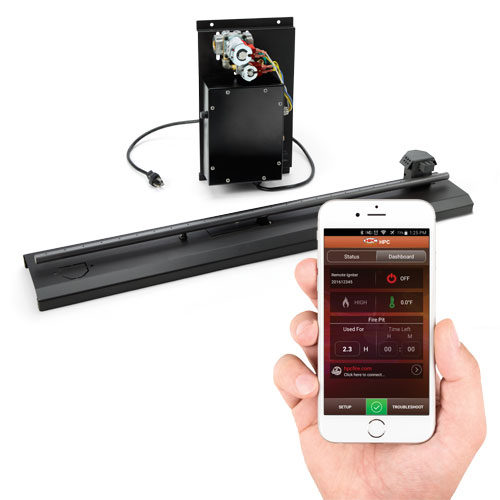

- Ignition choice: Electronic On/Off or Hi/Lo (120VAC or 24VAC) or push button flame sensing on a AAA battery.
Specifications
| Specification | Details |
|---|---|
| Brand | HPC Fire |
| Model | LBOF[size]EI (electronic), LBOF[size]PBFS (push button) |
| Material | 304 stainless steel, black powder coated |
| Gas | Natural gas or liquid propane |
Sizes and BTU (HPC drawings)
| Fireplace width | Pan | Burner | BTU | Minimum opening (front x height x depth) |
|---|---|---|---|---|
| 36" | 22" | 21" | 50K | 36" x 18" x 18" |
| 42" | 28" | 27" | 75K | 42" x 18" x 18" |
| 60" | 46" | 45" | 100K | 60" x 18" x 18" |
| 72" | 58" | 57" | 110K | 72" x 18" x 18" |
| 84" | 70" | 69" | 120K | 84" x 18" x 18" |
| 96" | 82" | 81" | 130K | 96" x 18" x 18" |
Installation & Requirements
- For fixed piping systems only; not for use with small tanks. Rated for altitudes 0 to 4,500 ft (HPC drawings).
- Natural gas supply pressure: minimum 3.5" W.C., maximum 7.0" W.C. LP: minimum 8" W.C., maximum 11.0" W.C.
- Modifying the product voids its certification and warranty. Follow HPC's installation instructions and local codes.
Warranty: HPC lists a lifetime warranty on its stainless steel outdoor fireplace burners; electronics and gas valve 3 years residential, 1 year commercial; pilot assembly 2 years residential, 1 year commercial; stainless steel pan and valve box 5 years residential, 1 year commercial (HPC manuals). Coverage is for parts and HPC in-house labor.
