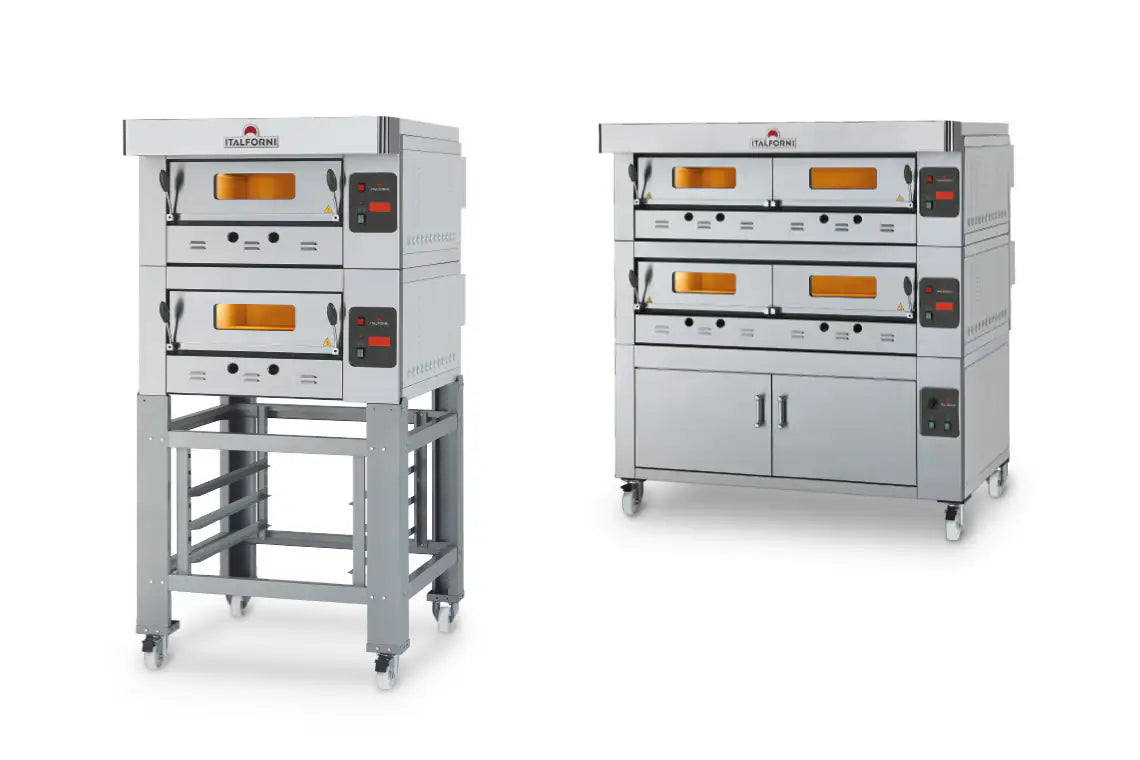

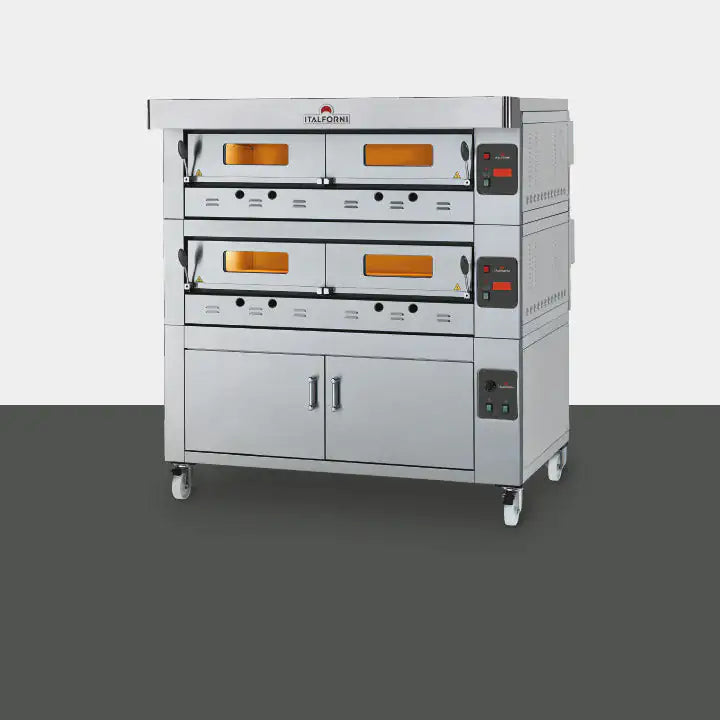

The ITALFORNI ECO-GAS is a modular gas deck oven for pizza, pastry and bread, with atmospheric burners under a refractory baking floor. Three sizes bake 4, 6 or 12 pizzas of 30 cm (11.8 in) per chamber, in one or two chambers on a stand or prover, and the controls run on single-phase 230 V.
Key Features
- Gas heat under stone: Atmospheric burners with safety valves heat the refractory floor from below for a strong bottom bake and quick recovery.
- Chamber control: Electronic temperature regulation per chamber on an electromechanical panel; digital control is available on request.
- Integrated hood: A hood module and vapour discharge are built in.
- Easy loading: Tempered-glass door on a counter-balanced hinge, protected halogen lighting, and a stainless steel or rustic front.
Specifications
| Specification | EGA | EGB | EGC |
|---|---|---|---|
| Pizzas per chamber, Ø 30 cm (11.8 in) | 4 | 6 | 12 |
| Baking pans 60 × 40 cm per chamber | 1 | 2 | 4 |
| Chamber, internal (H × W × D) | 15 × 61 × 64 cm (5.9 × 24 × 25.2 in) | 15 × 61 × 94 cm (5.9 × 24 × 37 in) | 15 × 123 × 93 cm (5.9 × 48.4 × 36.6 in) |
| External dimensions (H × W × D), with integrated hood | 47 + 5 × 96 × 105 cm (18.5 + 2 × 37.8 × 41.3 in) | 47 + 5 × 96 × 135 cm (18.5 + 2 × 37.8 × 53.1 in) | 47 + 5 × 160 × 142 cm (18.5 + 2 × 63 × 55.9 in) |
| Weight | 120 kg (265 lb) | 150 kg (331 lb) | 240 kg (529 lb) |
| Gas input | 12,000 kcal/h max (about 47,600 BTU/h); 6,500 kcal/h average (about 25,800 BTU/h) | 16,300 kcal/h max (about 64,700 BTU/h); 8,500 kcal/h average (about 33,700 BTU/h) | 24,000 kcal/h max (about 95,200 BTU/h); 12,500 kcal/h average (about 49,600 BTU/h) |
| Electrical supply | 230 V / 1 ph / 50-60 Hz | 230 V / 1 ph / 50-60 Hz | 230 V / 1 ph / 50-60 Hz |
| Temperature range | 0 to 420°C (32 to 788°F) per technical table; 0 to 450°C (842°F) per configuration sheet | 0 to 420°C (32 to 788°F) per technical table; 0 to 450°C (842°F) per configuration sheet | 0 to 420°C (32 to 788°F) per technical table; 0 to 450°C (842°F) per configuration sheet |
| Chamber and floor | Aluminium-coated steel chamber, refractory floor | Aluminium-coated steel chamber, refractory floor | Aluminium-coated steel chamber, refractory floor |
Matching provers and stands
| Component | EGA | EGB | EGC |
|---|---|---|---|
| Prover | BGA/I: 70 × 96 × 70 cm (27.6 × 37.8 × 27.6 in), 60 kg (132 lb), 3 trays (7 on configuration sheet) | BGB/I: 70 × 96 × 100 cm (27.6 × 37.8 × 39.4 in), 75 kg (165 lb), 6 trays (14 on configuration sheet) | BGC/I: 70 × 160 × 100 cm (27.6 × 63 × 39.4 in), 100 kg (220 lb), 6 trays (28 on configuration sheet) |
| Prover supply | 230 V / 1 ph / 50-60 Hz; 1 kW, 0.5 kW/h average; 0 to 90°C (32 to 194°F) | 230 V / 1 ph / 50-60 Hz; 1 kW, 0.5 kW/h average; 0 to 90°C (32 to 194°F) | 230 V / 1 ph / 50-60 Hz; 1 kW, 0.5 kW/h average; 0 to 90°C (32 to 194°F) |
| Stand | SEGA: 86/70/50 × 97 × 74 cm (33.9/27.6/19.7 × 38.2 × 29.1 in), 25/21/15 kg (55/46/33 lb), 3 trays (7/6/3 on configuration sheet) | SEGB: 86/70/50 × 97 × 104 cm (33.9/27.6/19.7 × 38.2 × 40.9 in), 26/22/16 kg (57/49/35 lb), 6 trays (14/12/6 on configuration sheet) | SEGC: 86/70/50 × 160 × 104 cm (33.9/27.6/19.7 × 63 × 40.9 in), 50/46/40 kg (110/101/88 lb), 6 trays (18/12/6 on configuration sheet) |
Installation & Requirements
- Gas: A qualified installer should size the gas supply to the maximum input of the chosen model (up to 24,000 kcal/h, about 95,200 BTU/h, per chamber on the EGC).
- Height: With two chambers, the total height is 99 cm (39 in) including the integrated hood. Specify the stand height (86, 70 or 50 cm) on the order confirmation.
- Certification: Italforni has not confirmed US certification (such as CSA or ETL gas listings) for ECO-GAS; ask us before ordering for a US site.
Sold separately: BG provers, SEG stands, 4 wheels (13 cm / 5.1 in for EGA and EGB stands, 16 cm / 6.3 in for EGC; 15 cm / 5.9 in and 18 cm / 7.1 in for provers), PPD prover feet (8 to 20 cm / 3.1 to 7.9 in), digital control on request.
Ordering & Lead Time
- Factory direct from Italforni in Italy, with a total lead time of 6 to 8 weeks.
- Final sale: not eligible for change-of-mind returns. Full manufacturer warranty and damaged-on-arrival protection still apply.
