Ice-O-Matic 48-Inch Modular Full Cube Ice Maker, Water-Cooled, 1,860 lb/24 hr, 208-230V 3-Phase CIM2047FW

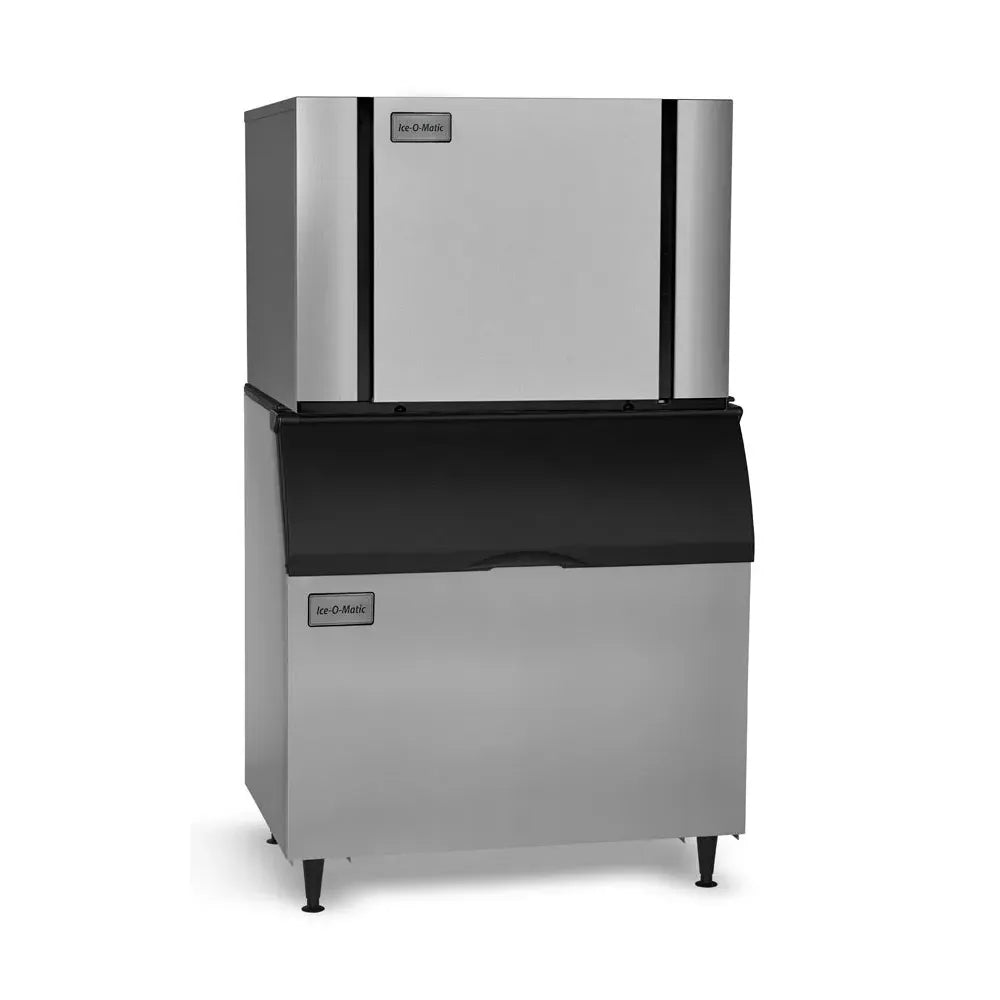

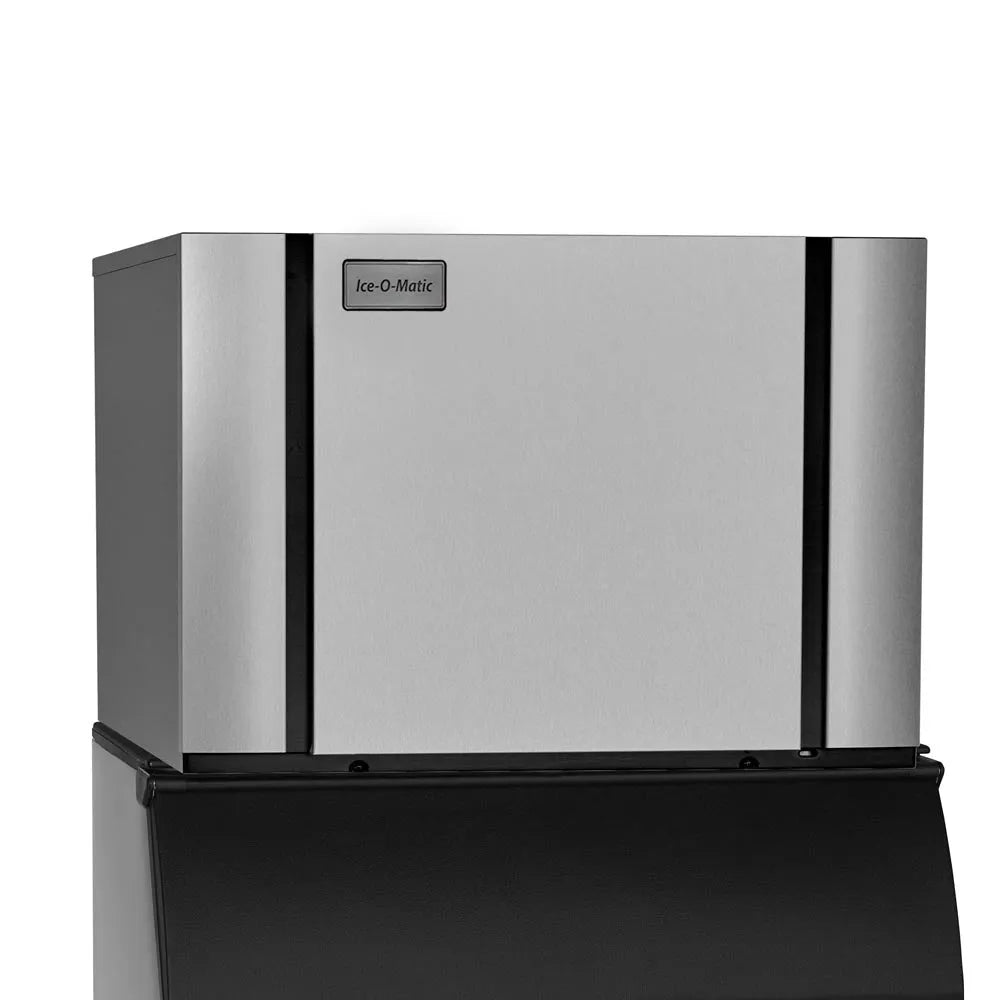

The Ice-O-Matic CIM2047FW is a 48-inch water-cooled modular ice maker that produces up to 1,860 lb of full cube ice per 24 hours at 70°F air and 50°F water. It mounts on a separate ice bin or dispenser (sold separately) and runs on 208-230/60/3 power with R404A refrigerant.
Key Features
- Harvest Assist: Keeps ice production consistent for the life of the machine while reducing energy consumption and increasing capacity.
- Nickel-plated evaporator: Electroless nickel plating on the evaporator plates protects the freezing surface for reliable, long-term production.
- Pure Ice antimicrobial protection: Built-in antimicrobial protection inhibits bacteria growth on ice maker surfaces for the life of the machine.
- Aluminum exterior: Corrosion-resistant, fingerprint-proof aluminum and plastic keeps the cabinet looking clean.
Specifications
| Specification | CIM2047FW |
|---|---|
| Model | CIM2047FW |
| Ice production per 24 hrs at 70°F air / 50°F water | 1,860 (844) lb (kg) |
| Ice production per 24 hrs at 90°F air / 70°F water | 1,565 (709) lb (kg) |
| Condensing unit | Water |
| Voltage characteristics | 208-230/60/3 |
| Min. circuit ampacity | 15.1 |
| Max breaker size | 25 |
| kWh used per 100 lbs of ice at 90°F air / 70°F water | 39 (as printed by Ice-O-Matic) |
| Potable water usage at 90°F air / 70°F water | 15.0 gallons per 100 lbs of ice |
| Condenser water usage at 90°F air / 70°F water | 134.2 gallons per 100 lbs of ice |
| Approx. BTUs per hour | 27,200 |
| Number of wires | 3 (including ground) |
| Refrigerant | R404A |
| Dimensions, W x D x H (in.) | 48.25 x 24.25 x 26.8 in. |
| Dimensions, W x D x H (mm) | 1,226 x 616 x 660 mm |
| Approx. shipping weight | 335 (152) lb (kg) |
| Ice form - full cube dimensions, W x D x H (in.) | 7/8 x 7/8 x 7/8 in. |
| Ice form - full cube dimensions, W x D x H (mm) | 22 x 22 x 22 mm |
| Ice form - half cube dimensions, W x D x H (in.) | 3/8 x 7/8 x 7/8 in. |
| Ice form - half cube dimensions, W x D x H (mm) | 10 x 22 x 22 mm |
| Ambient air temperature (min. to max.) | 50°F (10°C) to 100°F (38°C) |
| Water temperature (min.) | 40°F (4.4°C) |
| Water Pressure (min. to max.) | 20 PSIG (1.4 BAR) to 80 PSIG (5.5 BAR) |
| Remote Condenser temperature (min. to max.) | -20°F (-29°C) to 120°F (50°C) |
| Water filter | Ice-O-Matic optional water filtration system provides protection against unpleasant tastes, odors and scale formation; manifold system IFQ2-XL with replacement IOMQXL (2); Replace the filter every six months to extend the evaporator warranty to 7 years parts and labor (available in the U.S. and Canada only) |
Installation & Requirements
- Requires an ice storage bin or dispenser (sold separately); see the suggested combinations below.
- Electrical: voltage characteristics 208-230/60/3; min. circuit ampacity 15.1; max breaker size 25.
- Connections: Ice maker potable water in, 3/8" FPT; Ice maker water out, 3/4" FPT; Hole for electrical connections, 7/8"; Electrical junction box; Condenser water in, 3/8" FPT (water only); Condenser water out, 1/2" FPT (water only).
Suggested Bin Combinations
Ice-O-Matic suggests these bin and adapter combinations for the CIM2047FW:
- B110
Sold separately: KSI-1 SafeIce Purification System (add-on option for CIM machines); https://www.youtube.com/watch?v=toReJT8QG6A&t=7s.
Warranty: COMMERCIAL WARRANTY; Ice Maker - 3 years parts and labor; Evaporator and Compressor - 5 years parts; Evaporator (when enrolled in the Ice-O-Matic filter program) - 7 years parts and labor; Purchase an Ice-O-Matic water filter with your cube ice maker, replace the filter every six months, and the evaporator warranty is extended to 7 years parts and labor (available in the U.S. and Canada only).
