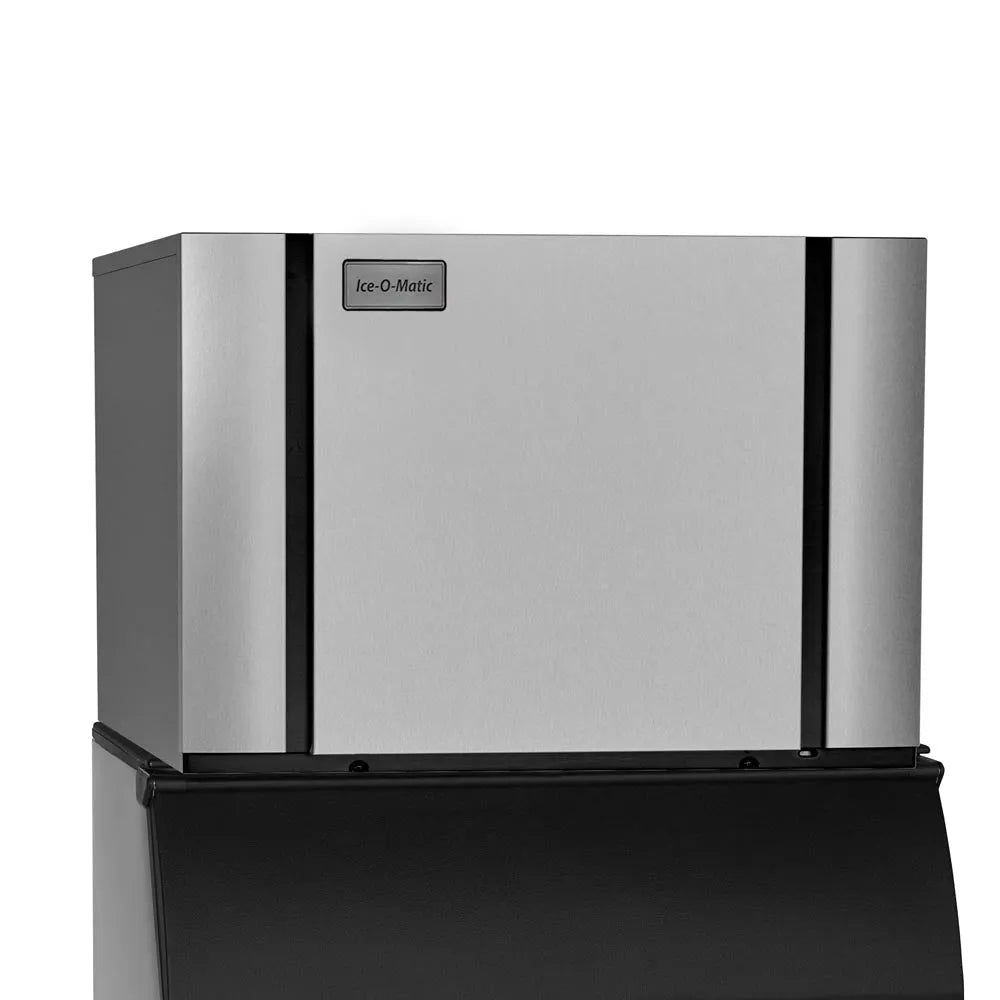

Ice-O-Matic 48-Inch Modular Full Cube Ice Maker, Water-Cooled, 1,700 lb/24 hr, 208-230V CIM1446FW49
The Ice-O-Matic CIM1446FW49 is a 48-inch water-cooled modular ice maker that produces up to 1,700 lb of full cube ice per 24 hours at 70°F air and 50°F water. It mounts on a separate ice bin or dispenser (sold separately) and runs on 208-230/60/1 power with R449A refrigerant.
Key Features
- Harvest Assist: Keeps ice production consistent for the life of the machine while reducing energy consumption and increasing capacity.
- Faster cleaning: The front-facing evaporator and dishwasher-safe plastic components (up to 180°F) make routine cleaning quicker, which lowers operating costs.
- Nickel-plated evaporator: Electroless nickel plating on the evaporator plates protects the freezing surface for reliable, long-term production.
- Simple service: Shares many common parts with other CIM machines, so service technicians work with familiar components.
- R449A refrigerant: Charged with R449A, which Ice-O-Matic describes as a more environmentally friendly and efficient refrigerant.
- Aluminum exterior: Corrosion-resistant, fingerprint-proof aluminum keeps the cabinet looking clean.
Specifications
| Specification | CIM1446FW49 |
|---|---|
| Model | CIM1446FW49 |
| Ice production per 24 hrs at 70° air / 50° water | 1700 (771) lb (kg) |
| Ice production per 24 hrs at 90° air / 70° water | 1599 (725) lb (kg) |
| Condensing Type | Water |
| Voltage/Hertz/Phase | 208-230/60/1 |
| Min. Circuit Amp | 18.85 |
| Max Breaker Size | 30 A |
| kWh per 100 lbs of ice at 70°F air / 50°F water | 3.15 |
| kWh per 100 lbs of ice at 90°F air / 70°F water | 3.52 |
| Potable water usage, gallons per 100 lbs of ice at 90°F air / 70°F water | 15 |
| Condenser water usage, gallons per 100 lbs of ice at 90°F air / 70°F water | 99 |
| BTU (approx per hour) | 22000 |
| Number of Wires | 3 (including ground) |
| Refrigerant | R449A |
| Refrigeration Charge | 30 oz |
| Unit Width | 48.25 | 1226 |
| Unit Depth | 24.25 | 616 |
| Unit Height | 26.84 | 682 |
| Shipping Weight | 310 lbs / 141 kg |
| Shipping Dimensions (in.) | 51 (W) x 27 (D) x 33 (H) |
| Shipping Dimensions (mm) | 1295 (W) x 686 (D) x 838 (H) |
| Ice form / cube size | FULL CUBE; 7/8 x 7/8 x 7/8 in.; 22 x 22 x 22 mm |
| Ambient air temperature (min. to max.) | 50°F (10°C) to 100°F (38°C) |
| Water Temp (min. to max.) | 40°F (4°C) to 100°F (38°C) |
| Water Pressure (min. to max.) | 20 PSIG (1.4 BAR) to 80 PSIG (5.5 BAR) |
| Water filter | IFQ1-M manifold system with IOMQ-M replacement cartridge |
Installation & Requirements

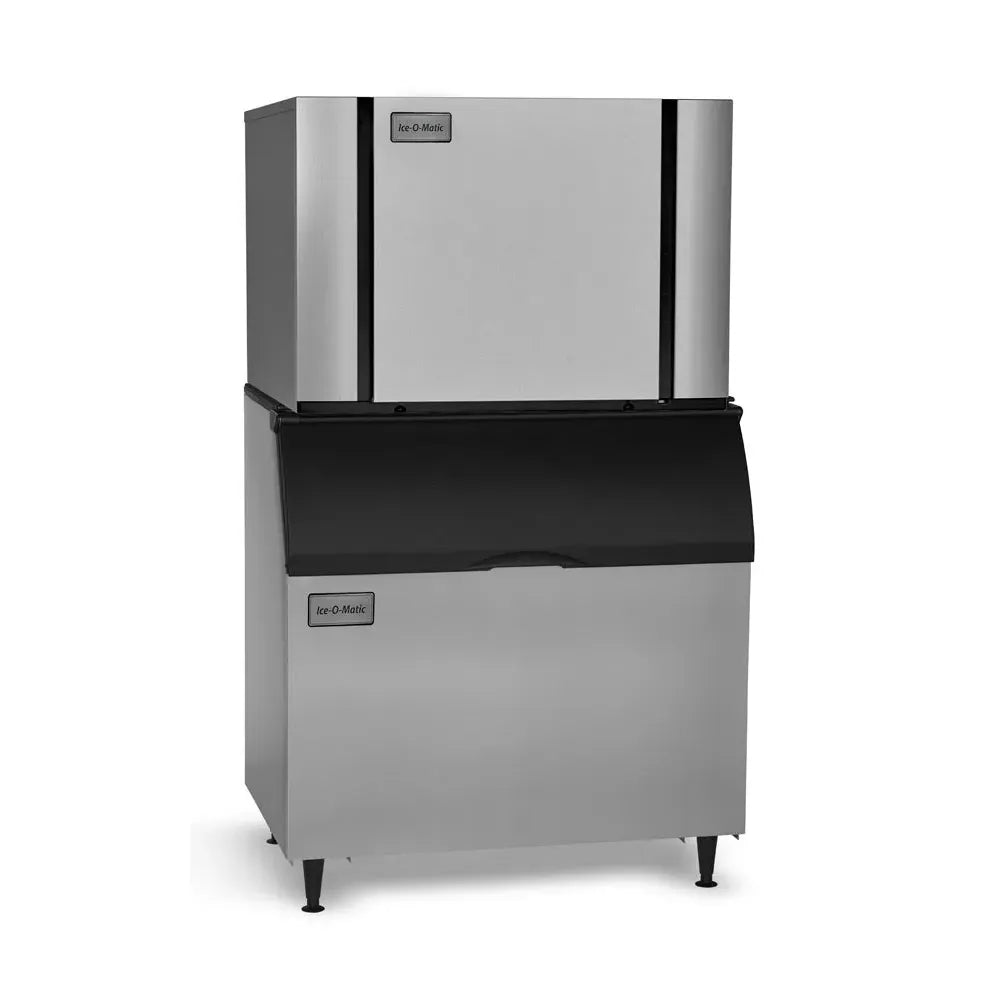

- Requires an ice storage bin or dispenser (sold separately); see the suggested combinations below.
- Electrical: voltage/hertz/phase 208-230/60/1; min. circuit amp 18.85; max breaker size 30 A.
- Connections: Ice Maker Drain, 3/4" FPT; Ice Maker Potable Water Inlet, 3/8" FPT; Electrical Connection, .875" (22.2 mm) (2); Condensate Base Drain, .50" (12.7 mm); Water Condenser Inlet, 3/8" FPT; Water Condenser Outlet, 1/2" FPT.
Suggested Bin Combinations
Ice-O-Matic suggests these bin and adapter combinations for the CIM1446FW49:
- B110
Sold separately: KSI-1 Safe Ice Module; B110.
Warranty: Ice Maker: 3 years parts and labor; Evaporator and Compressor: 5 years parts; Evaporator: 7 years parts and labor (if enrolled in the filter program for US & Canada).
