Ice-O-Matic 30-Inch Modular Full Cube Ice Maker, Remote Condenser, 610 lb/24 hr, 208-230V CIM0636FR49

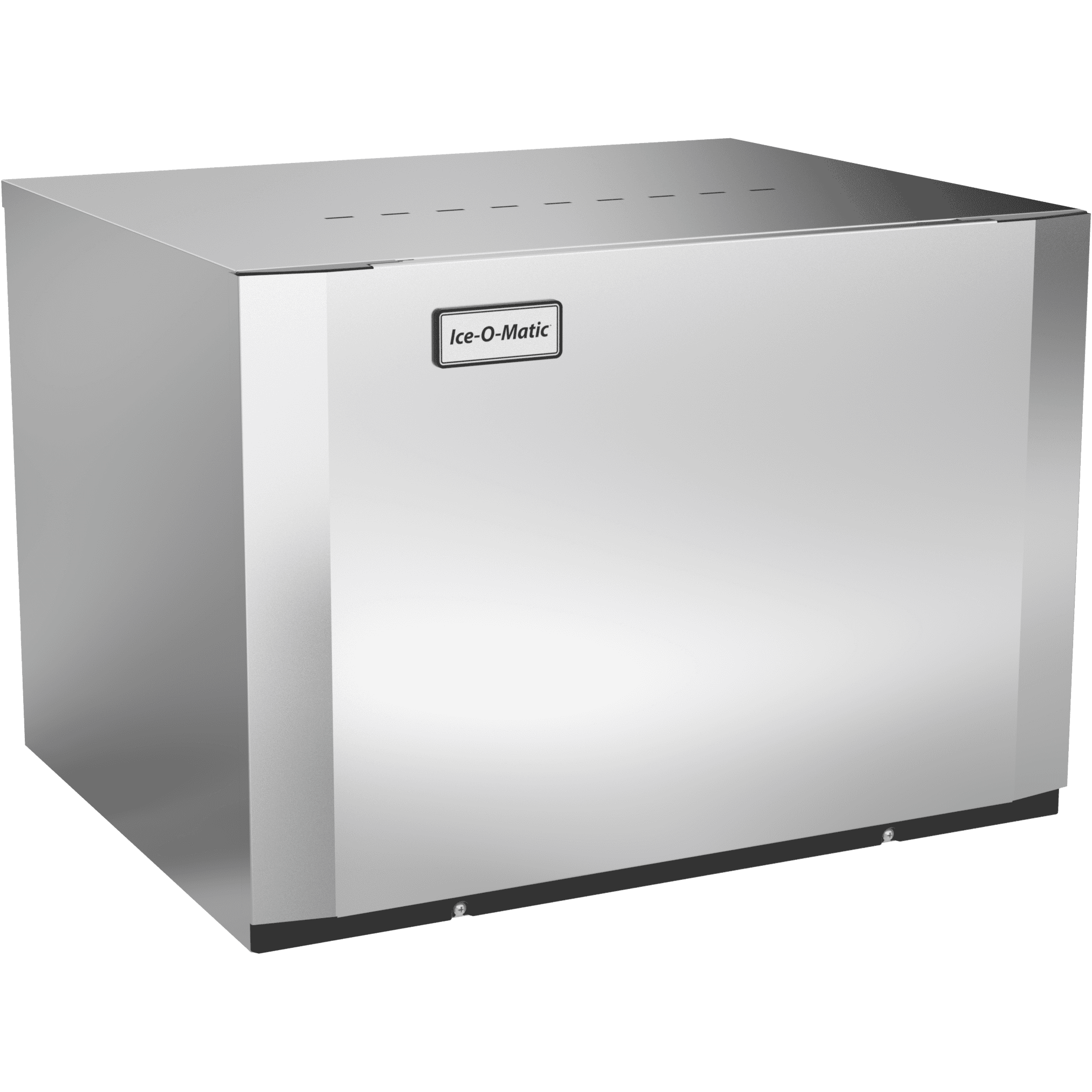

The Ice-O-Matic CIM0636FR49 is a 30-inch remote-condenser modular ice maker that produces up to 610 lb of full cube ice per 24 hours at 70°F air and 50°F water. It mounts on a separate ice bin or dispenser (sold separately) and runs on 208-230/60/1 power with R449A refrigerant. Pair it with the RC106C49 remote condenser and a line set, both sold separately.
Key Features
- Modular design: Mounts on a compatible Ice-O-Matic bin or ice and beverage dispenser, so you can match storage to your volume.
- Harvest Assist: Keeps ice production consistent for the life of the machine while reducing energy consumption and increasing capacity.
- Faster cleaning: The front-facing evaporator and dishwasher-safe plastic components (up to 180°F) make routine cleaning quicker, which lowers operating costs.
- Nickel-plated evaporator: Electroless nickel plating on the evaporator plates protects the freezing surface for reliable, long-term production.
- Simple service: Shares many common parts with other CIM machines, so service technicians work with familiar components.
- Aluminum exterior: Corrosion-resistant, fingerprint-proof aluminum keeps the cabinet looking clean.
Specifications
| Specification | CIM0636FR49 |
|---|---|
| Model | CIM0636FR49 |
| BABA Compliant | Yes |
| Ice production per 24 hrs at 70° air / 50° water | 610 (277) lb (kg) |
| Ice production per 24 hrs at 90° air / 70° water | 510 (231) lb (kg) |
| Condensing type | Remote |
| Voltage/Hertz/Phase | 208-230/60/1 |
| Min. Circuit Amp | 9.9 |
| Max Breaker Size | 15 A |
| kWh per 100 lbs of ice at 70°F air / 50°F water | 4.27 |
| kWh per 100 lbs of ice at 90°F air / 70°F water | 5.15 |
| Potable water usage, gallons per 100 lbs of ice at 90°F air / 70°F water | 17 |
| Condenser water usage, gallons per 100 lbs of ice at 90°F air / 70°F water | N/A |
| BTU (approx per hour) | 10720 |
| Number of Wires | 3 (including ground) |
| Refrigerant | R449A |
| Refrigeration Charge | 132 oz |
| Unit Width | 30.26 in / 769 mm |
| Unit Depth | 24.62 in / 625 mm |
| Unit Height | 21.25 in / 540 mm |
| Shipping Weight | 165 lbs / 75 kg |
| Shipping Dimensions (in.) | 33 (W) x 27 (D) x 27 (H) |
| Shipping Dimensions (mm) | 838 (W) x 686 (D) x 686 (H) |
| Ice form / cube size | FULL CUBE |
| Ice cube size | 7/8 x 7/8 x 7/8 in. / 22 x 22 x 22 mm |
| Ambient air temperature (min. to max.) | 50°F (10°C) to 100°F (38°C) |
| Water Temp (min. to max.) | 40°F (4°C) to 100°F (38°C) |
| Water Pressure (min. to max.) | 20 PSIG (1.4 BAR) to 80 PSIG (5.5 BAR) |
| Water filter | IFQ1-S manifold system with IOMQ-S replacement cartridge |
Installation & Requirements
- Requires an ice storage bin or dispenser (sold separately); see the suggested combinations below.
- Requires the RC106C49 remote condenser and a line set (RL49-25, RL49-40 or RL49-75 precharged; KRL-25, KRL-40 or KRL-75 noncharged), all sold separately.
- Electrical: voltage/hertz/phase 208-230/60/1; min. circuit amp 9.9; max breaker size 15 A.
- Connections: Ice Maker Drain, 3/4" FPT; Ice Maker Potable Water Inlet, 3/8" FPT; Electrical Connection, .875" (22.2 mm) (2); Condensate Base Drain, .50" (12.7 mm); Remote Condenser Discharge Line, 1/2" male quick connect for line set; Remote Condenser Liquid Line, 3/8" male quick connect for line set.
Suggested Bin Combinations
Ice-O-Matic suggests these bin and adapter combinations for the CIM0636FR49:
- B40
- B55
- B110 with BPF-1
Sold separately: KSI-1 Safe Ice Module; KCUBEDISPB for ice level control for a dispenser - verify the adapter with the dispenser manufacturer.
Warranty: Ice Maker: 3 years parts and labor; Evaporator and Compressor: 5 years parts; Evaporator: 7 years parts and labor (if enrolled in the filter program for US & Canada).
