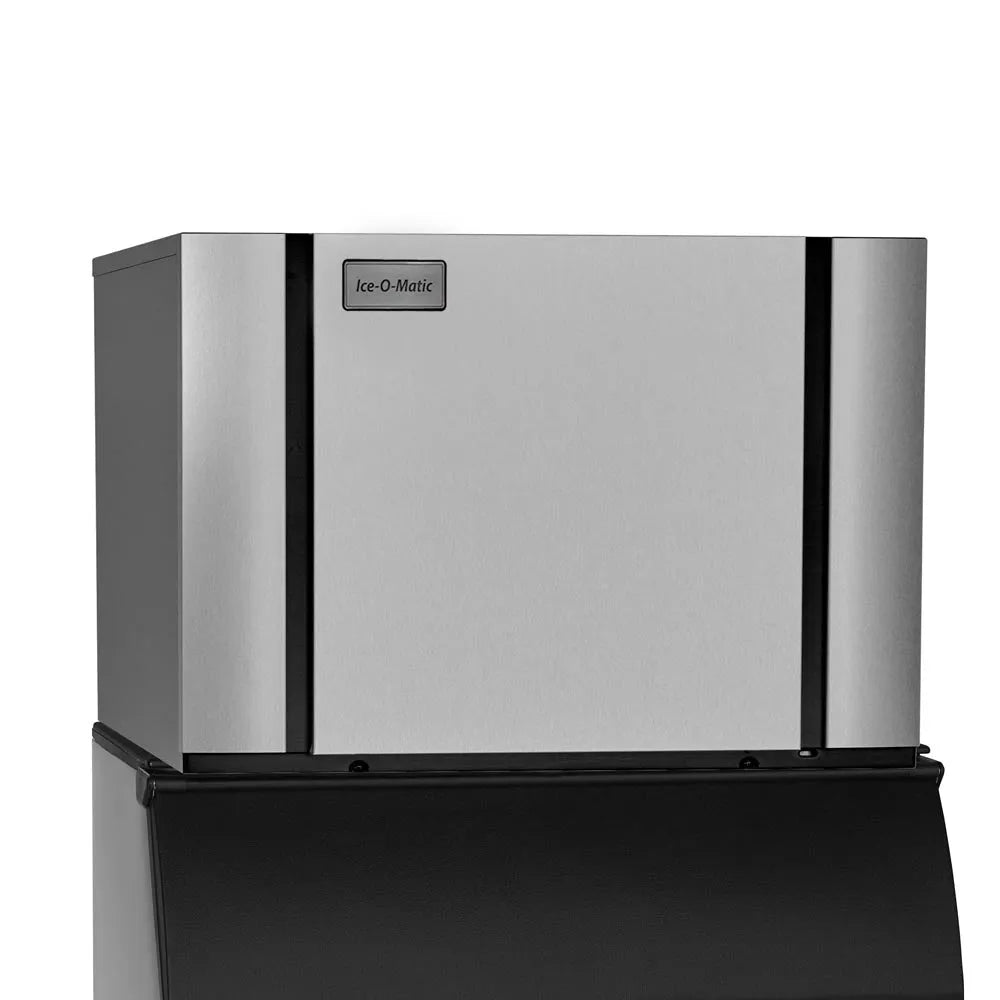

Ice-O-Matic 48-Inch Modular Full Cube Ice Maker, Remote Condenser, 1,560 lb/24 hr, 208-230V 3-Phase CIM1447FR

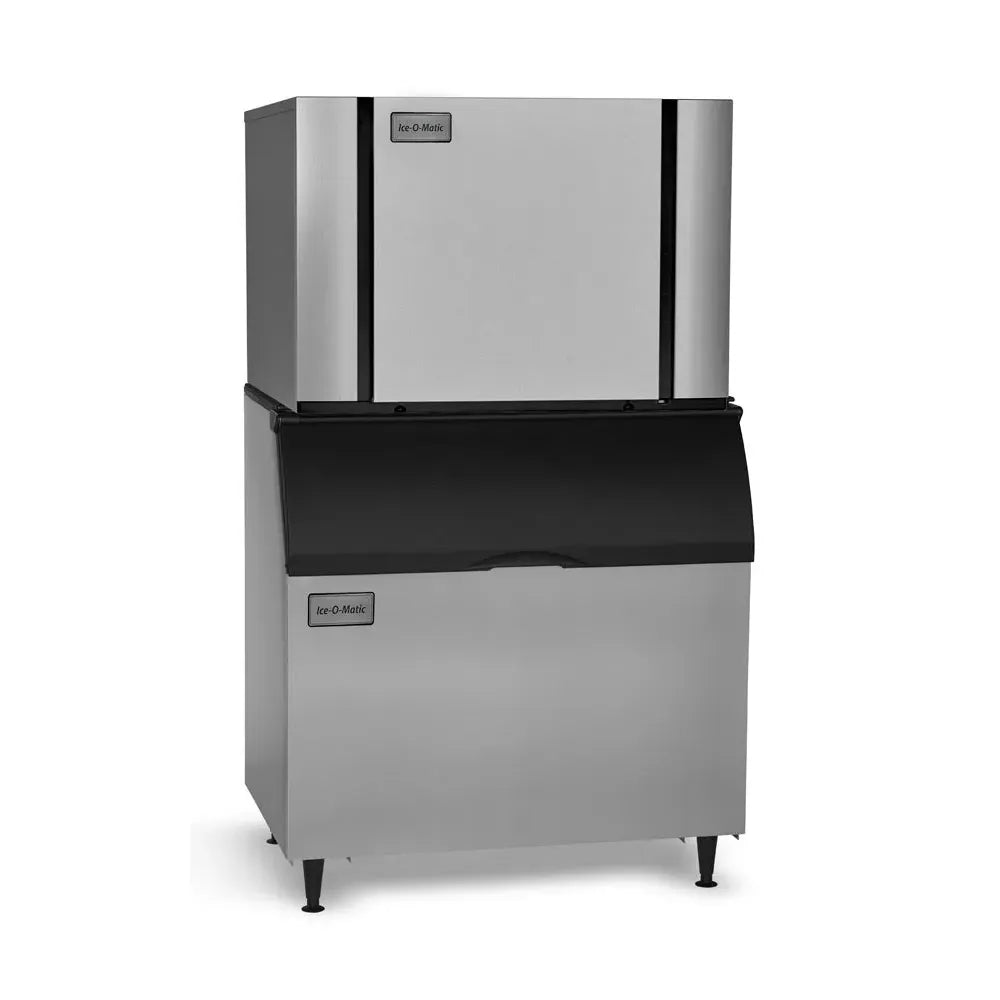

The Ice-O-Matic CIM1447FR is a 48-inch remote-condenser modular ice maker that produces up to 1,560 lb of full cube ice per 24 hours at 70°F air and 50°F water. It mounts on a separate ice bin or dispenser (sold separately) and runs on 208-230/60/3 power with R404A refrigerant. Pair it with the matching Ice-O-Matic remote condenser and a line set, both sold separately.
Key Features
- Modular, dual-exhaust design: Mounts on a compatible bin or dispenser, and dual exhaust gives the installer more freedom in where the machine sits and how heat leaves the cabinet.
- Harvest Assist: Keeps ice production consistent for the life of the machine while reducing energy consumption and increasing capacity.
- Nickel-plated evaporator: Electroless nickel plating on the evaporator plates protects the freezing surface for reliable, long-term production.
- Pure Ice antimicrobial protection: Built-in antimicrobial protection inhibits bacteria growth on ice maker surfaces for the life of the machine.
- Stainless steel exterior: Corrosion-resistant, fingerprint-resistant stainless steel for durability and easy cleaning.
Specifications
| Specification | CIM1447FR |
|---|---|
| Model | CIM1447FR |
| Ice production per 24hrs at 70°F air/50°F water | 1,560 (708) lb (kg) |
| Ice production per 24hrs at 90°F air/70°F water | 1,290 (585) lb (kg) |
| Condensing type | Remote |
| Voltage characteristics | 208-230/60/3 |
| Min. circuit ampacity | 13.6 |
| Max breaker size | 20 |
| kWh used per 100 lbs of ice at 90°F air/70°F water | 4.3 |
| Potable water usage per 100 lbs of ice at 90°F air/70°F water | 15.0 gallons |
| Condenser water usage per 100 lbs of ice at 90°F air/70°F water | N/A |
| Approx. BTUs per hour | 21,000 |
| Number of wires | 3 (including ground) |
| Refrigerant | R404A |
| Unit dimensions W x D x H (in.) | 48.25 x 24.25 x 26.8 |
| Unit dimensions W x D x H (mm) | 1,226 x 616 x 660 |
| Approx. shipping weight | 280 (127) lb (kg) |
| Ice form - Full cube dimensions W x D x H (in.) | 7/8 x 7/8 x 7/8 |
| Ice form - Full cube dimensions W x D x H (mm) | 22 x 22 x 22 |
| Ice form - Half cube dimensions W x D x H (in.) | 3/8 x 7/8 x 7/8 |
| Ice form - Half cube dimensions W x D x H (mm) | 10 x 22 x 22 |
| Daily ice production basis | Half cube configuration |
| Ambient temperature range - air (min. to max.) | 50°F (10°C) to 100°F (38°C) |
| Water temperature (min.) | 40°F (4.4°C) |
| Water pressure (min. to max.) | 20 PSIG (1.4 BAR) to 80 PSIG (5.5 BAR) |
| Remote condenser temperature (min. to max.) | -20°F (-29°C) to 120°F (50°C) |
| Water filter | manifold system IFQ2-XL with replacement IOMQXL (2) |
Installation & Requirements
- Requires an ice storage bin or dispenser (sold separately); see the suggested combinations below.
- Requires an Ice-O-Matic remote condenser and a line set (RL49-25, RL49-40 or RL49-75 precharged; KRL-25, KRL-40 or KRL-75 noncharged), all sold separately.
- Electrical: voltage characteristics 208-230/60/3; min. circuit ampacity 13.6; max breaker size 20.
- Connections: Ice maker potable water in, 3/8" FPT; Ice maker water out, 3/4" FPT; Hole for electrical connections, 7/8"; Electrical junction box; Liquid line, 3/8" male quick connect coupling for precharged line set (remote only); Discharge line, 1/2" male quick connect coupling for precharged line set (remote only); Hole for remote electrical connections, 7/8" (remote only).
Sold separately: KSI-1 SafeIce Purification System (add-on option for CIM machines).
Warranty: Ice Maker: 3 years parts and labor; Evaporator and Compressor: 5 years parts; Evaporator (when enrolled in the Ice-O-Matic filter program): 7 years parts and labor; Purchase an Ice-O-Matic water filter with your cube ice maker, replace the filter every six months, and the evaporator warranty is extended to 7 years parts and labor (available in the U.S. and Canada only).
