The HPC Fire Assembled Flame Control System is the electronic ignition package from HPC's fire pit inserts, built for a burner and pan you supply. The large control box version is rated from 75K to 400K BTU, for fire pits larger than 19". Choose On/Off or Hi/Lo (with Bluetooth remote and app), 120VAC, 24VAC or 12VAC, a standard or torpedo burner rating, and natural gas or propane.
Key Features
- Hot surface ignition with flame sensing: The control box lights the burner and monitors the flame.
- On/Off or Hi/Lo: Hi/Lo models add a Bluetooth remote and antenna extension; the HPC Fire app works with a smartphone or tablet.
- Three voltages: 120VAC, 24VAC or 12VAC to suit the site wiring.
- Pre-assembled: Control box, manifold, wiring harness and blowout box come ready to connect.
Specifications
| Specification | Details |
|---|---|
| Brand | HPC Fire |
| Model | FCS-[box]-[gas]/[voltage]-[BTU]; Hi/Lo models FCS-HI/LO-...; add TOR- for torpedo burner rating |
| Control box | Large version |
| BTU ratings | 75K to 400K BTU, for fire pits larger than 19" |
| Control | Electronic On/Off or Hi/Lo (Bluetooth) |
| Voltage | 120VAC (1 amp), 24VAC or 12VAC (4 amp) |
| Gas | Natural gas or liquid propane |
| Gas input flex line | 24" |
Installation & Requirements
- For permanent fixed piping only; not for small LP tanks. Natural gas supply pressure: minimum 3.5" W.C., maximum 7.0" W.C. LP: minimum 8.0" W.C., maximum 11.0" W.C.
- Power: 120VAC (1 amp) or 24VAC/12VAC (4 amp, Class II, at least 100 W). HPC recommends its 311-PS (24VAC) or 313-PS (12VAC) power supplies, a dedicated line for each fire pit, and 14 gauge wire up to 75 ft or 12 gauge beyond.
- Use a GFCI-protected circuit. A wall switch is required for safety shutoff.
- Any flex line from the permanent gas supply must be rated to the maximum BTU and certified to ANSI Z21.75/CSA 6.27.
- HPC recommends installation by professionals licensed for gas piping. Modifying the product voids its certification and warranty.

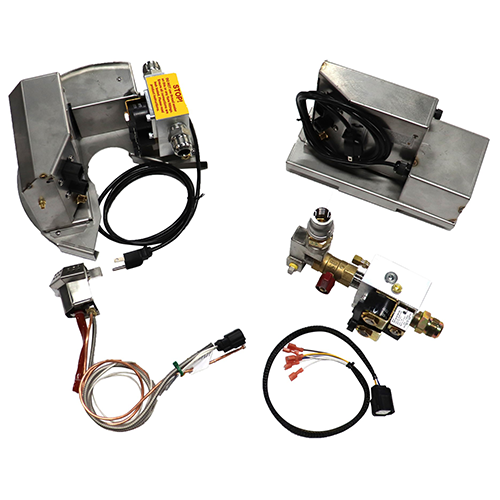

What's Included
- Linear or round control box with valve
- Universal gas ignition system blowout box
- Manifold assembly
- Wiring harness
- 24" gas input flex line
- 3/4" coupler and 3/4" to 1/2" reducer coupler
- Bluetooth remote control, antenna, antenna extension cable and bracket (Hi/Lo models)
- Installation and operation instructions
Warranty: HPC warrants its fire pits against manufacturing defects that prevent safe and correct function: stainless steel burners, lifetime; electronics and gas valve, 3 years residential and 1 year commercial; pilot assembly, 2 years residential and 1 year commercial; stainless steel pan and valve box, 5 years residential and 1 year commercial. Coverage runs from the date of original sale or shipment from HPC and covers parts and HPC in-house labor through an HPC return authorization; installation and maintenance labor and damage from overheating, modification, abuse or improper storage are not covered.
