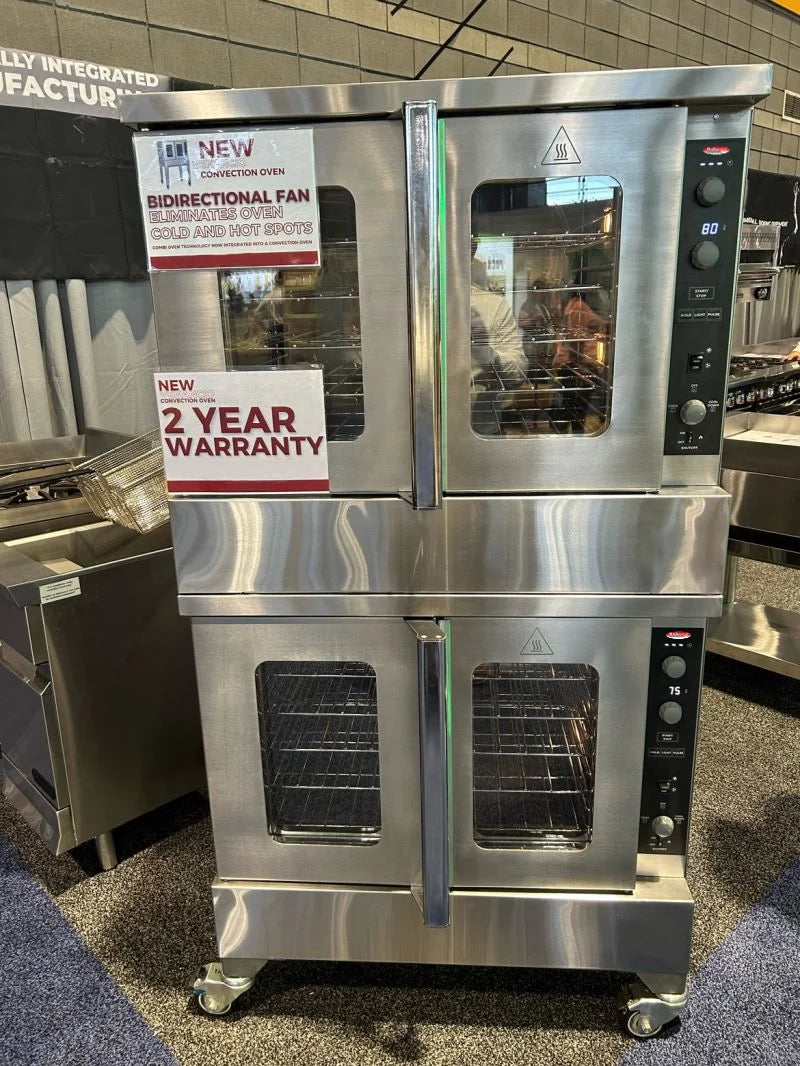

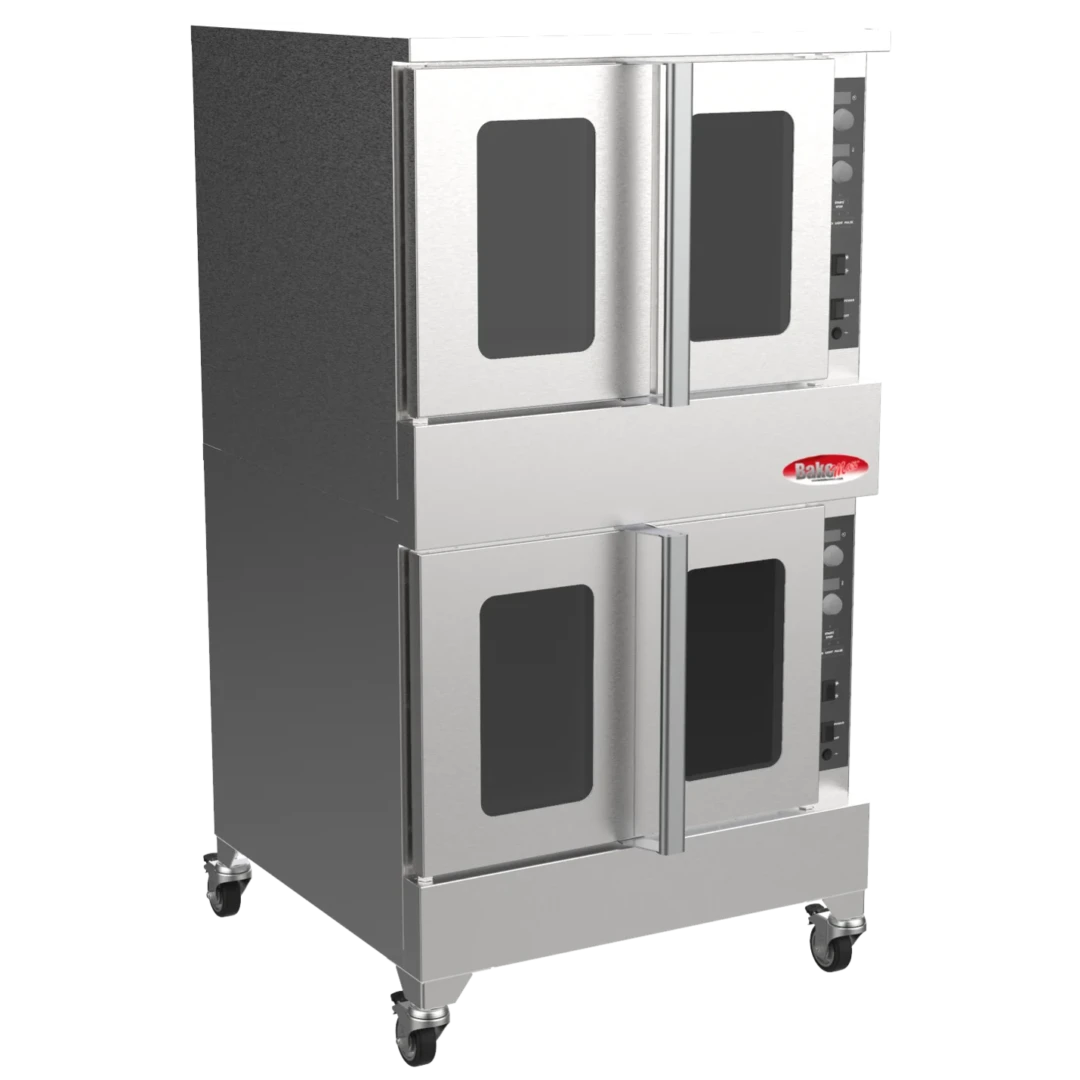

Why BakeMax BADCO5E Double Stacked Electric Convection Oven?
Built for high-volume restaurant and bakery production, the BakeMax America BADCO5E is a commercial floor-model, double stacked electric convection oven engineered for speed, consistency, and long-term serviceability. With 22,000W total output and a forced-air circulation system, it delivers even baking across multiple racks while supporting efficient workflows—an investment-grade solution sourced through Perfection Plaza.
Performance & Key Features
- Commercial double-stacked floor model design: Two independent oven cavities in one footprint to increase throughput without expanding your line.
- Production output: 22,000W (two 11,000W heating elements): High electric power for fast recovery and efficient cooking during peak service.
- Capacity: holds 24 full size pans: Supports large batch baking/roasting to reduce cycle counts and labor per pan.
- Rack capacity: 24 different rack positions at 1.5” spacing: Fine-tune rack placement for product height and airflow control across varied menu items.
- Forced air circulation system: Even heat distribution for consistent results while maximizing efficiency for energy savings.
- ¾ HP two-speed blower motor (1125 and 1725 RPM) with reversible rotation: Select airflow intensity for delicate bakes or high-load roasting, and reverse rotation to promote uniformity.
- Two fan speeds (High & Low): Match convection intensity to product type for better texture and browning control.
- Solid state thermostat, 150-500°F (65-260°C): Wide operating range for proofing-style low temps through high-heat baking and roasting.

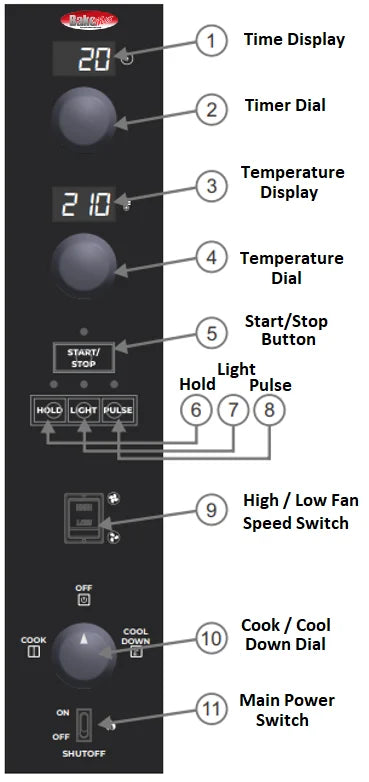

- Digital controls: Precise, repeatable settings to standardize output across shifts.
- Two auxiliary cooking features (Hold & Pulse): Hold supports controlled finishing/holding, while Pulse provides targeted airflow/heat management for product consistency.
- Integrated safety system: Automatically shuts off power to the fan when the oven door is opened to enhance operator safety.
- Interior long-lasting halogen lights: Clear visibility for doneness checks without unnecessary door openings.
- Number of doors: 2; door type: hinged: Practical access for loading/unloading in busy production environments.
- Stainless steel door with double glass front window: Viewing window helps monitor product while supporting heat retention.
- Manual heating element & gas shut-off switch: Manual shut-off control for safe servicing and operational control (Gas Type: None).
- 4” locking casters: Roll the 885 lb unit for cleaning and service access, then lock in place for stable operation.
- Electrical (hard wired): 240V, 102 amps, 22,000 watts, 60 Hz, 1Ph—specified for dedicated commercial electrical installation planning.
- Gas Type: None: All-electric operation for facilities standardizing on electric equipment.
- Country of Origin: Brazil: Documented origin for procurement requirements.
- Approvals: ETL, ETL US, UL, UL US: Recognized safety certifications to support compliance and inspection readiness.
- Warranty: 2-Year Limited Warranty (Warranty Duration: Two Years): Added protection for a high-duty production asset.
- Product dimensions (W x D x H): 38” x 46.6” x 71.4” to plan placement and clearances for a floor-model installation.
- Product weight: 885 pounds for stable, heavy-duty operation in high-volume kitchens.
- Shipping dimensions (W x D x H): 43.4” x 49.3” x 77.6” to coordinate receiving paths, doorways, and freight handling.
- Shipping weight: 985 pounds for accurate freight planning and dock requirements.
Build Quality & Design
- Hygienic stainless-steel construction: Stainless steel build supports durability and easier wipe-downs in demanding commercial environments.
- Heavy-duty removable front door: Designed for easier deep cleaning and maintenance access.

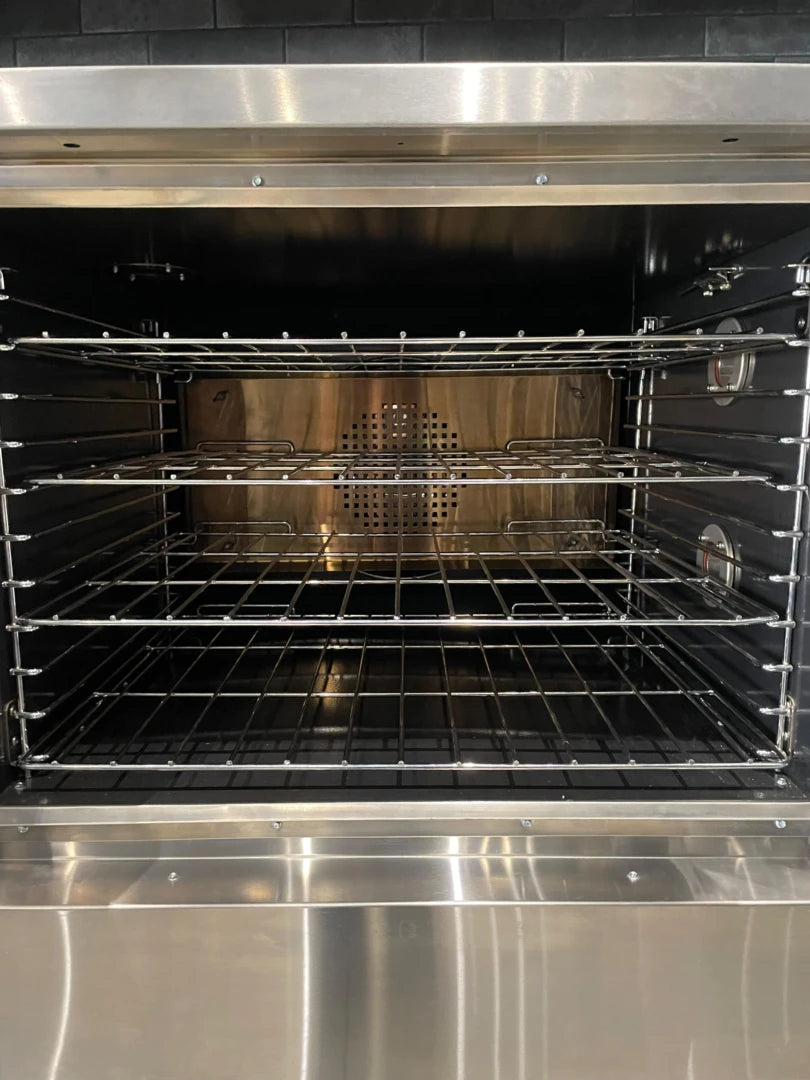

- Porcelain-enameled oven cavity with removable rack supports: Smooth, durable interior surfaces and removable components simplify cleaning and reduce downtime.
- Rounded cavity corners: Promotes better heat circulation and makes corners easier to clean.
- Floor model form factor: Purpose-built for commercial production lines where capacity and stability matter.
Product Details
Production Output: 22000W
Capacity: 24 Different Rack Positions at 1.5” Spacing
Construction: Stainless Steel
Controls Type: Digital
Design: Floor Model
Number of Doors: 2
Type of Door: hinged
Warranty Duration: Two Years
Dimensions and Weights
Product
Width: 38"
Depth: 46.6"
Height: 71.4"
Weight: 885 pounds
Shipping
Width: 43.4"
Depth: 49.3"
Height: 77.6"
Weight: 985 pounds
Other Information
Gas Type: None
Country of Origin: Brazil
Aprovals: ETL, ETL US, UL, UL US
