Why Bromic Heating Affinity Smart-Heat® Dimmer Controllers?
Enjoy precise, app-based heat control for Bromic Platinum Electric and Tungsten Electric heaters with the Affinity Dimmer Series. Designed to help you fine-tune comfort and energy use, these dimmer controllers deliver granular output control (down to 1% increments) plus customizable scenes, an investment in better outdoor experiences and smarter heater management from Perfection Plaza.
Performance & Key Features
- 1%, precision dimming control: Instantly adjust heat output in 1% increments for exact comfort without overheating the space.
- 1, 2, or 5 channel options: Choose the right control architecture for single-zone, multi-zone, or larger installations.
- Up to 6000W (6kW) per channel: High-capacity channel control supports demanding electric heater loads while maintaining stable performance.
- Wi‑Fi + Bluetooth control: Enabled Wi‑Fi (2.4GHz compatible) and Bluetooth connectivity let you control and customize settings via the Bromic Heating App.
- App scenes & settings: Create and recall unique scenes for repeatable comfort profiles across different times and use cases.
- 3‑Phase 5‑Channel advanced integration: Includes an expansion board for Ethernet integration for a more “full-proof” connection, plus 0-10V control for Home or Business Automation integration.
- Outdoor-ready protection rating (IP54): Helps protect internal components from dust and splashing water for dependable operation in exposed environments.
- Wide operating temperature range: Rated from -4°F to +86°F to maintain control performance across seasonal conditions.
- Safe storage tolerance: Non-operating temperature range of -22°F to +158°F supports resilience during transport or off-season storage.
- Certified controls compliance: UL 60730-1 and CAN/CSA E60730-1 approvals support confidence in electrical control safety requirements.
- Heater compatibility: Engineered specifically for Platinum Electric and Tungsten Electric heater models for correct pairing and reliable control.
- 1-year warranty: Backed by a 1 Year warranty for added purchase assurance.
Build Quality & Design

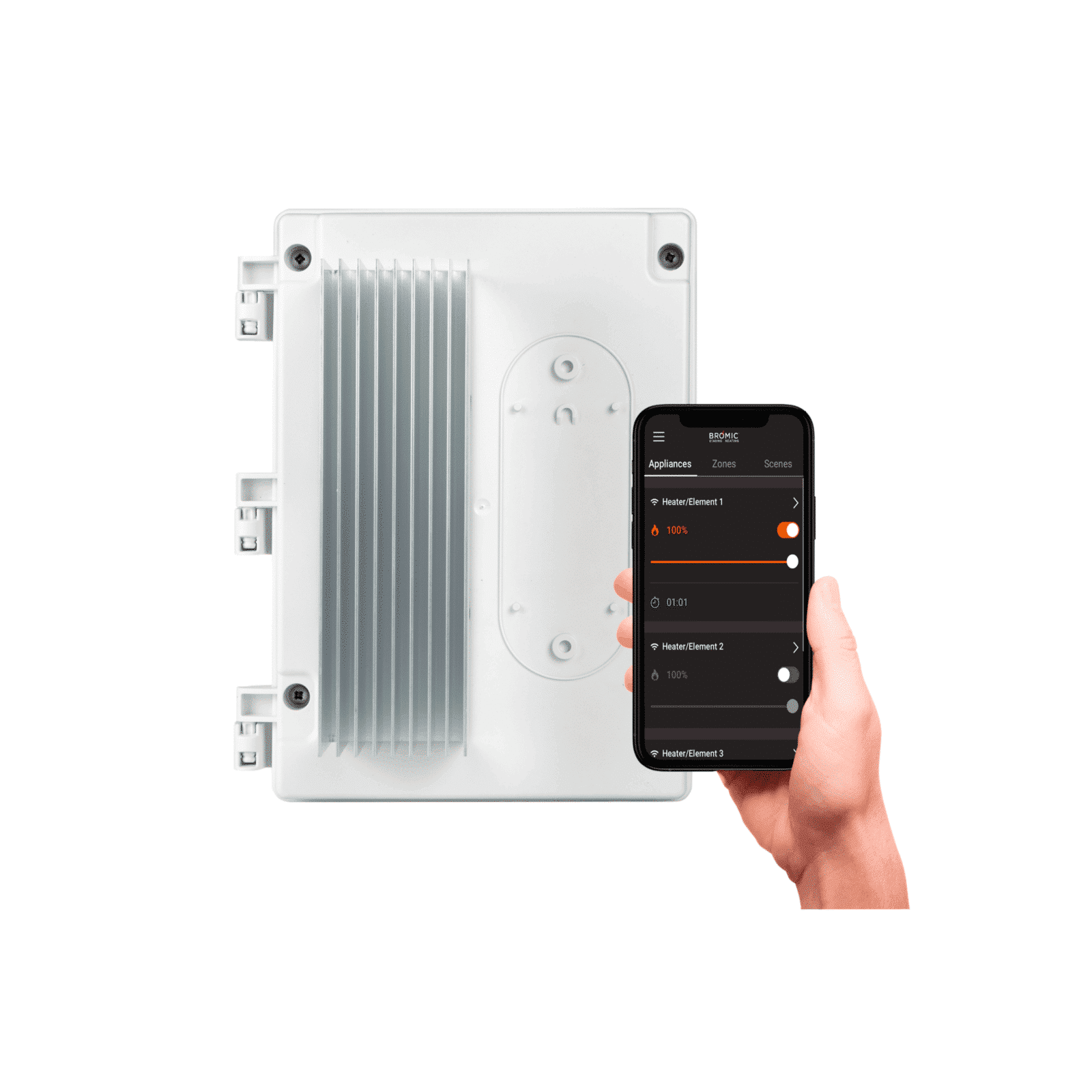

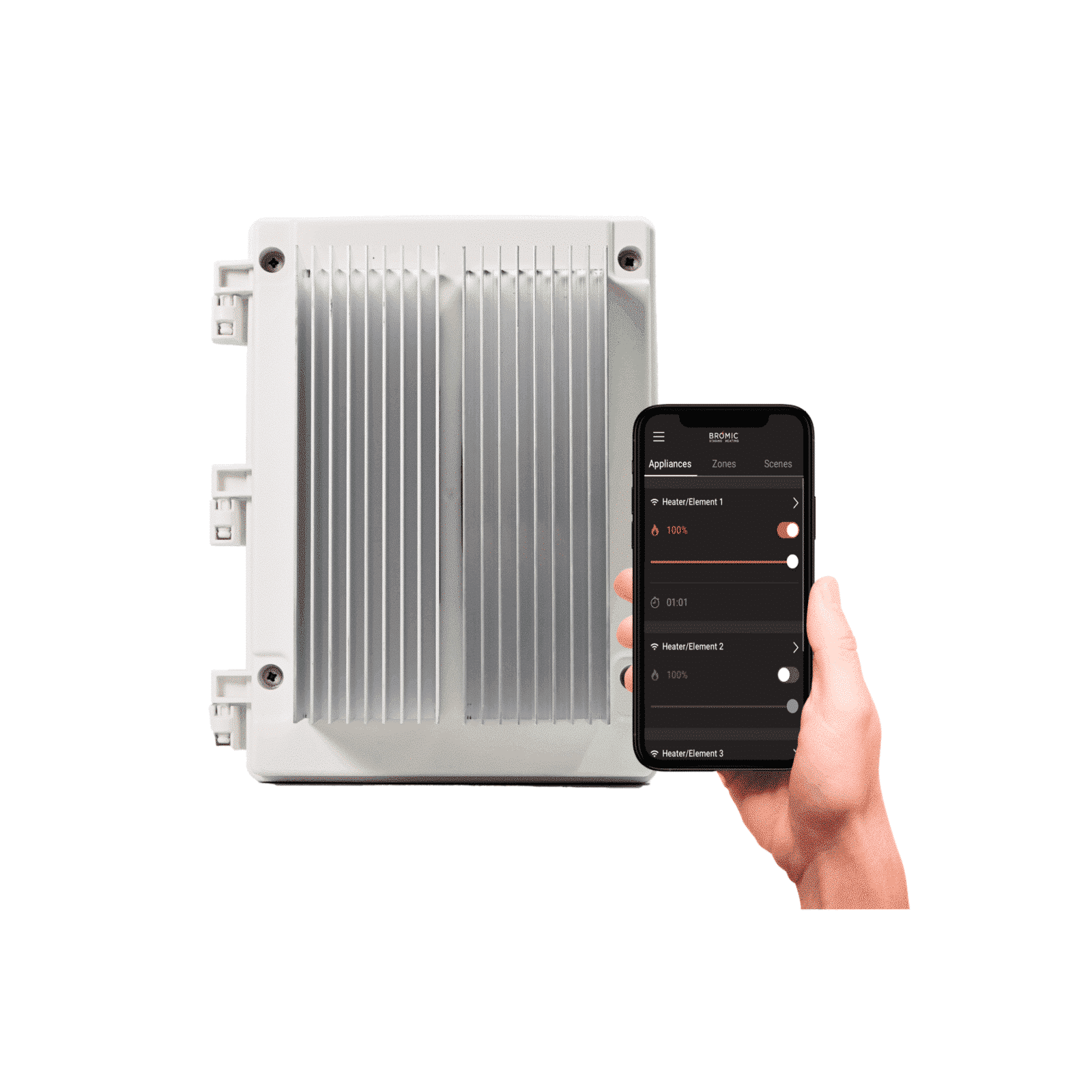

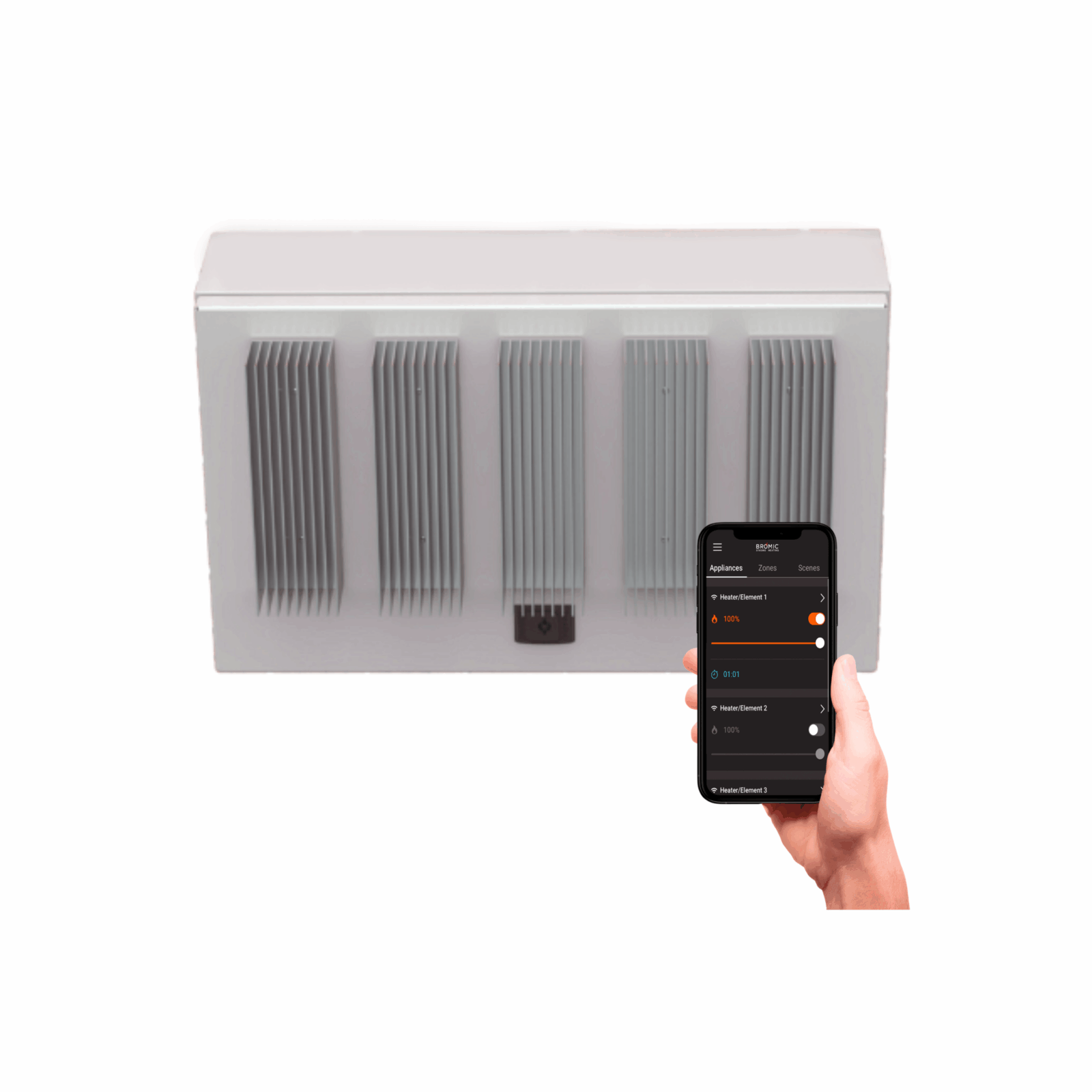

- Installation-friendly controller enclosures: Compact footprints for 1CH/2CH (11.4 x 8.0 x 6.4″) and a larger 5CH housing (19.7 x 13.4 x 10.0″) to accommodate expanded channel architecture.
- Weight matched to configuration: 1CH (3.5 lbs), 2CH (5.3 lbs), and 5CH (27.6 lbs) to support appropriate mounting and planning for each system size.
- Connectivity-forward design: Built-in 2.4GHz Wi‑Fi support across models, with the 5CH model adding Ethernet expansion and 0-10V integration capability for automation ecosystems.
Specifications
| Model | AFFINITY DIMMER | ||
| Number of Channels | 1 CH | 2 CH | 5 CH |
| Part Number | BH3130061 | BH3130062 | BH3130063 |
| Voltage / Max Capacity Per Channel | 208-277V: 6kW | 208-277V: 6kW |
3N-220/380V: 6kW 3N-230/400V: 6kW 3N-240/415V: 6kW 3N-277/480V: 6kW 3- 120/208V: 6kW |
| Operating Temperature Range | -4°F to +86°F | -4°F to +86°F | -4°F to +86°F |
| Non-Operating Temperature Range | -22°F to +158°F | -22°F to +158°F | -22°F to +158°F |
| Protection Rating | IP54 | IP54 | IP54 |
| Dimensions | 11.4 x 8.0 x 6.4″ | 11.4 x 8.0 x 6.4″ | 19.7 x 13.4 x 10.0″ |
| Weight | 3.5 lbs | 5.3 lbs | 27.6 lbs |
| WiFi Connectivity | 2.4GHZ | 2.4GHZ | 2.4GHZ |
| Warranty | 1 Year | ||
| Approval Certification | UL 60730-1, CAN/CSA E60730-1 | ||
| Heater Compatibility | Platinum Electric Tungsten Electric |
||
