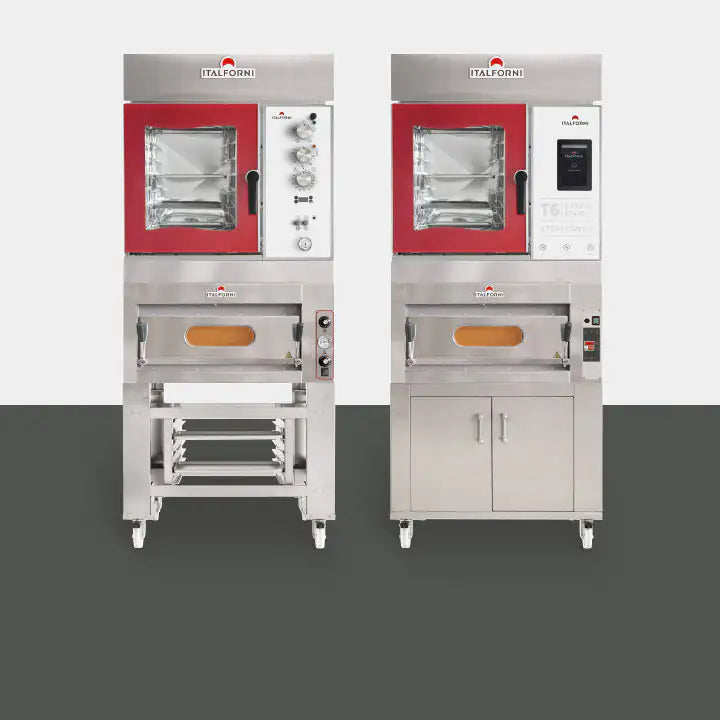

The ITALFORNI TOTEM stacks two ovens in one footprint: a WINDY ventilated oven with direct steam injection on top for gastronomy and pastry, and a static deck oven with a refractory floor below for pizza and bread at up to 450°C (842°F). It stands on a tray stand or a prover base, with digital or mechanical controls.
Key Features
- Convection and deck in one column: Bake trays of pastry above while pizzas and bread bake on refractory stone below.
- Ventilated oven: Adjustable-speed fan and direct steam injection in a 6- or 10-tray WINDY with 70 mm (2.8 in) tray spacing.
- Deck oven control: P-Regulation sets floor and ceiling power separately; Hyper T-Heating digital temperature control is optional.
- Finish: Stainless steel or rustic front, tempered-glass doors on counter-balanced hinges and Lighting Plus.
Specifications
Ventilated oven (top)
| Specification | WINDY-T6E / M6E | WINDY-T10E / M10E |
|---|---|---|
| Capacity | 6 trays 60 × 40 cm or 6 GN 1/1 | 10 trays 60 × 40 cm or 10 GN 1/1 |
| Chamber, internal (H × W × D) | 52 × 45 × 63 cm (20.5 × 17.7 × 24.8 in) | 76 × 45 × 63 cm (29.9 × 17.7 × 24.8 in) |
| External dimensions (H × W × D) | 78.5 × 88 × 88.5 cm (30.9 × 34.6 × 34.8 in); also listed as 75 cm (29.5 in) high for the T6E | 104 × 88 × 88.5 cm (40.9 × 34.6 × 34.8 in); also listed as 100.5 cm (39.6 in) high for the T10E |
| Weight | 115 kg (254 lb) | 150 kg (331 lb) |
| Supply | 3N AC 400 V | 3N AC 400 V |
| Power | 8 kW | 16 kW |
| Tray spacing | 70 mm (2.8 in) | 70 mm (2.8 in) |
Static pizza deck (bottom)
| Specification | T1A/I | T1B/I |
|---|---|---|
| Capacity | 4 pizzas Ø 30 cm (11.8 in) and 1 pan 60 × 40 cm | 6 pizzas Ø 30 cm (11.8 in) and 2 pans 60 × 40 cm |
| Chamber, internal (H × W × D) | 15 × 61 × 62 cm (5.9 × 24 × 24.4 in) | 15 × 61 × 92 cm (5.9 × 24 × 36.2 in) |
| External dimensions (H × W × D) | 46 × 85 × 95 cm (18.1 × 33.5 × 37.4 in) | 46 × 85 × 125 cm (18.1 × 33.5 × 49.2 in) |
| Weight | 76 kg (168 lb) | 110 kg (243 lb) |
| Supply | 400 V / 3 ph / 50-60 Hz | 400 V / 3 ph / 50-60 Hz |
| Power | 4 kW max; 2 kW/h average | 6 kW max; 3 kW/h average |
| Current draw | 6 A | 9 A |
| Temperature range | 0 to 450°C (32 to 842°F) | 0 to 450°C (32 to 842°F) |
| Baking floor | Refractory, aluminium-coated steel chamber | Refractory, aluminium-coated steel chamber |
Hood, provers and stands
| Component | A size (T1A) | B size (T1B) |
|---|---|---|
| Prover | BT1A/I: 86 × 85 × 85 cm (33.9 × 33.5 × 33.5 in), 70 kg (154 lb), 3 pans | BT1B/I: 86 × 85 × 115 cm (33.9 × 33.5 × 45.3 in), 80 kg (176 lb), 6 pans |
| Prover supply | 230 V / 1 ph / 50-60 Hz; 1 kW, 0.5 kW/h average; 0 to 90°C (32 to 194°F) | 230 V / 1 ph / 50-60 Hz; 1 kW, 0.5 kW/h average; 0 to 90°C (32 to 194°F) |
| Stand | ST1A: 86/70 × 86 × 85 cm (33.9/27.6 × 33.9 × 33.5 in), 26/22 kg (57/49 lb), 6 pans | ST1B: 86/70 × 86 × 115 cm (33.9/27.6 × 33.9 × 45.3 in), 28/23 kg (62/51 lb), 6 pans |
| Hood with motor | CAPO0610: 40 × 93 × 102 cm (15.7 × 36.6 × 40.2 in), 20 kg (44 lb), 0.1 kW | CAPO0610: same |
Installation & Requirements
- Power: Requires a 400 V, 3-phase supply. Italforni has not confirmed a US-voltage version or US certification for the TOTEM series; ask us before ordering for a US site.
Sold separately: CAPO0610 hood; 4 wheels (13 cm / 5.1 in for stands, 15 cm / 5.9 in for provers); CMT1 digital control panel; PPD prover feet (10 cm / 3.9 in); AKB steam damper kit; SRT stacking ring.
Ordering & Lead Time
- Factory direct from Italforni in Italy, with a total lead time of 6 to 8 weeks.
- Final sale: not eligible for change-of-mind returns. Full manufacturer warranty and damaged-on-arrival protection still apply.
