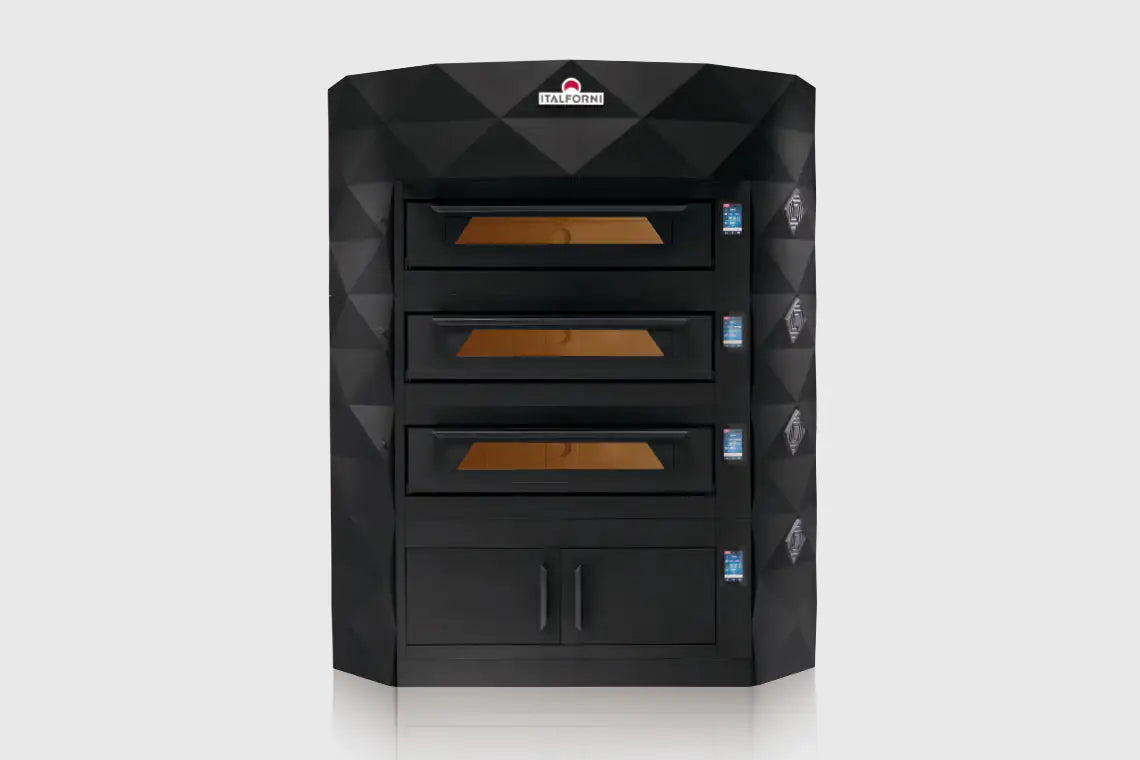

The ITALFORNI Diamond is a modular electric deck oven for pizza, pastry and bread, built as a front-of-house centrepiece with a diamond-effect recyclable aluminium shell. One, two or three refractory chambers each bake 9 pizzas of 35 cm (13.8 in) or 4 pans of 60 × 40 cm, and the oven installs in the open (CS, 360° view) or against a wall (FM).
Key Features
- Three ovens in one: Pizza, pastry and bread programs from the same refractory chambers, up to 450°C.

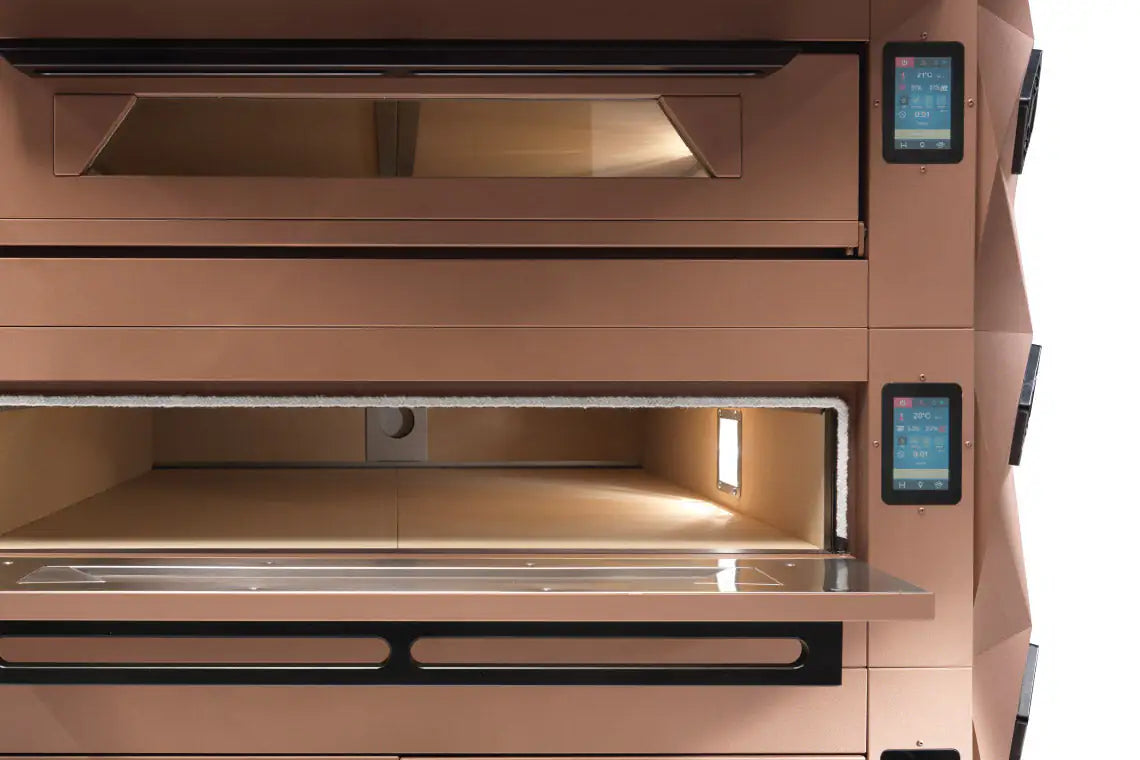

- Digital control: HYPER P-HEATING sets floor and ceiling power separately from a Touch Screen 65K panel with SMART EVO functions and ultra-fast heat-up.
- Heat stays inside: Hype elements are built into the baking floor, and FOLD 3D TECH insulation keeps the exterior around 30°C (86°F).

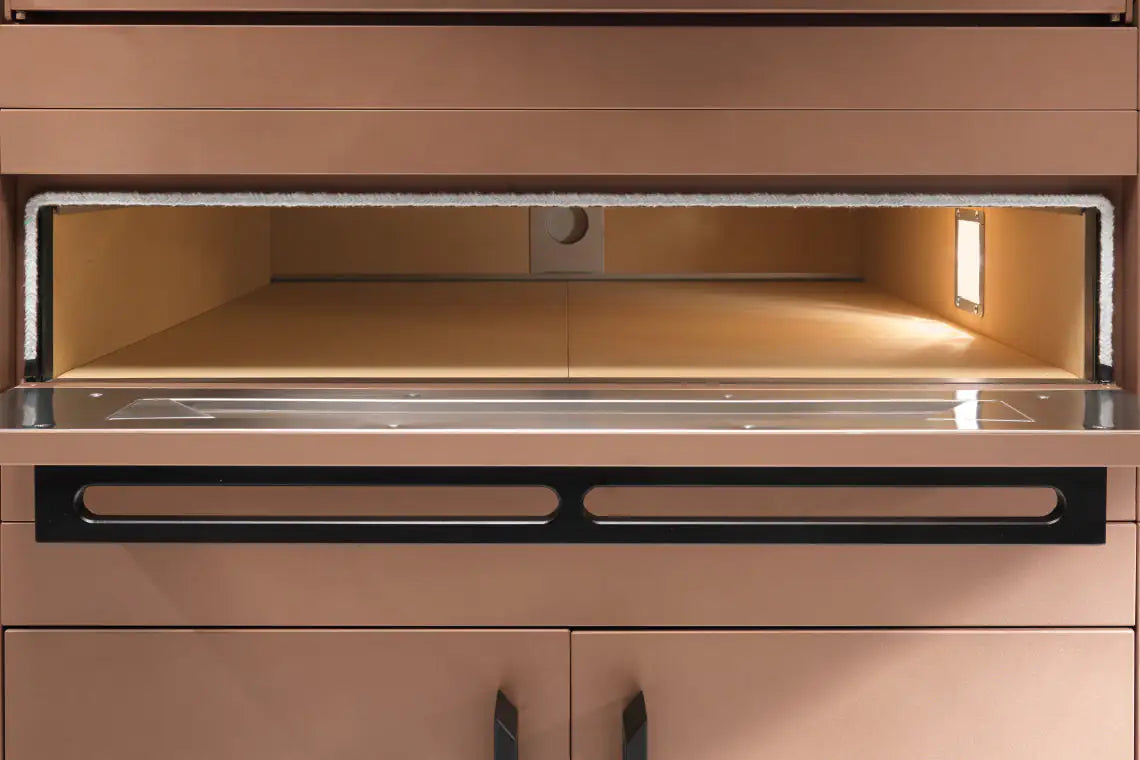

- Designed to be seen: Full-length tempered-glass doors on counter-balanced hinges, Lighting Plus, hidden hardware and an aluminium shell in four colours.
Specifications
| Specification | F-DIA (oven) | 1-DIA | 2-DIA | 3-DIA |
|---|---|---|---|---|
| Chambers | 1 (oven module) | 1 | 2 | 3 |
| Pizzas, Ø 35 cm (13.8 in) | 9 | 9 | 18 | 27 |
| Baking pans 60 × 40 cm | 4 | 4 | 8 | 12 |
| Chamber, internal (H × W × D) | 17 × 105 × 105 cm (6.7 × 41.3 × 41.3 in) | 17 × 105 × 105 cm (6.7 × 41.3 × 41.3 in) | 17 × 105 × 105 cm (6.7 × 41.3 × 41.3 in) | 17 × 105 × 105 cm (6.7 × 41.3 × 41.3 in) |
| External, central installation CS (H × W × D) | 40 × 190 × 170 cm (15.7 × 74.8 × 66.9 in) | 170 × 190 × 190 cm (66.9 × 74.8 × 74.8 in) | 210 × 190 × 190 cm (82.7 × 74.8 × 74.8 in) | 230 × 190 × 190 cm (90.6 × 74.8 × 74.8 in) |
| Weight, CS | 260 kg (573 lb) | 480 kg (1058 lb) | 740 kg (1631 lb) | 1000 kg (2205 lb) |
| External, wall installation FM (H × W × D) | 40 × 190 × 150 cm (15.7 × 74.8 × 59.1 in) | 170 × 190 × 170 cm (66.9 × 74.8 × 66.9 in) | 210 × 190 × 170 cm (82.7 × 74.8 × 66.9 in) | 230 × 190 × 170 cm (90.6 × 74.8 × 66.9 in) |
| Weight, FM | 250 kg (551 lb) | 450 kg (992 lb) | 700 kg (1543 lb) | 950 kg (2094 lb) |
| Power | 11 kW max; 5.5 kW/h average | 12.3 kW max; 6.3 kW/h average | 23.3 kW max; 11.8 kW/h average | 34.3 kW max; 17.3 kW/h average |
| Oven supply | 400 V / 3 ph / 50-60 Hz | 400 V / 3 ph / 50-60 Hz | 400 V / 3 ph / 50-60 Hz | 400 V / 3 ph / 50-60 Hz |
| Hood and prover supply | 230 V / 1 ph / 50-60 Hz | 230 V / 1 ph / 50-60 Hz | 230 V / 1 ph / 50-60 Hz | |
| Temperature range | 0 to 450°C (32 to 842°F); one Italforni table lists 0 to 460°C (860°F) | 0 to 450°C (32 to 842°F); one Italforni table lists 0 to 460°C (860°F) | 0 to 450°C (32 to 842°F); one Italforni table lists 0 to 460°C (860°F) | 0 to 450°C (32 to 842°F); one Italforni table lists 0 to 460°C (860°F) |
Installation & Requirements
- Installation: CS models have a back plate for central, 360° placement; FM models omit it for installation against a wall and are 20 cm (7.9 in) shallower.
- Power: The oven requires a 400 V, 3-phase supply. Italforni has not confirmed a US-voltage version or US certification for Diamond; ask us before ordering for a US site.
Sold separately: VRB steamer (adds 21 cm / 8.3 in depth, 1.4 kW/h); AKB steam damper kit with activated carbon filter for the hood.
Ordering & Lead Time
- Factory direct from Italforni in Italy, with a total lead time of 6 to 8 weeks.
- Final sale: not eligible for change-of-mind returns. Full manufacturer warranty and damaged-on-arrival protection still apply.
