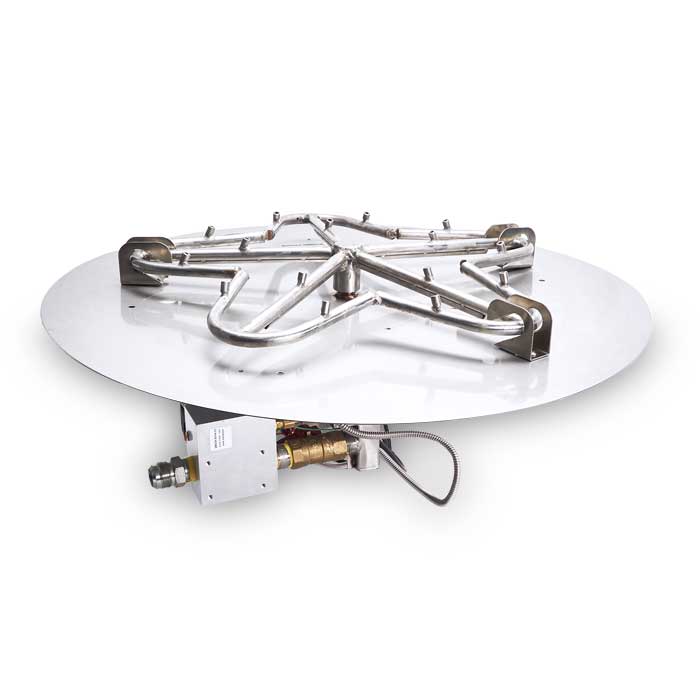

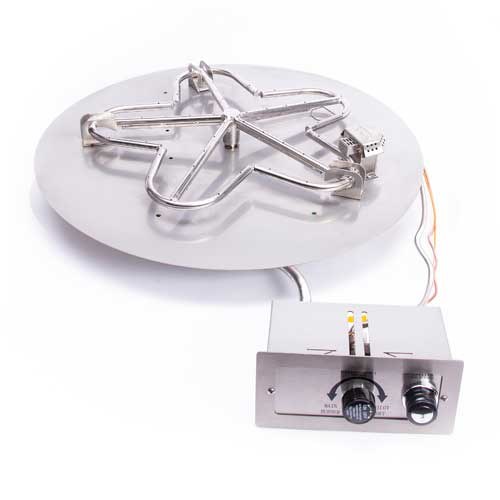

The HPC Fire Round Flat insert is a fully assembled stainless steel pan with a Penta or round burner for round fire pits and tables that need a shallow, flat pan. It comes in eight sizes from 8" to 54", with a standard or torpedo burner and electronic, push button or match lit ignition for natural gas or propane.
Key Features
- Flat 304 stainless steel pan: A flat pan sits shallow in the enclosure, which suits fire tables and low-profile round pits.

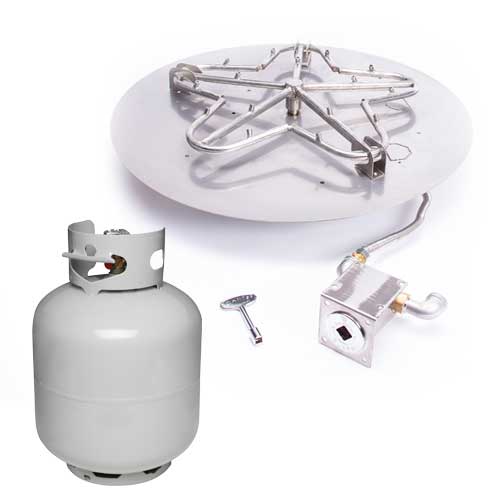

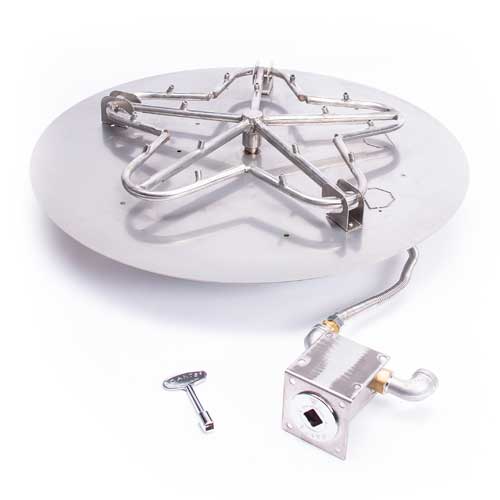

- Penta or round burner: The 14" model uses a round burner; larger sizes use a Penta burner, offered in standard or torpedo style.

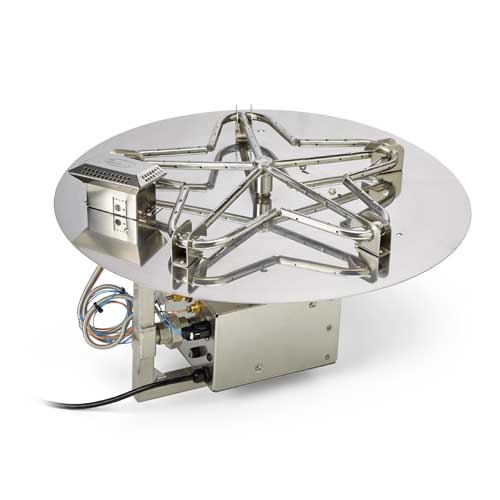

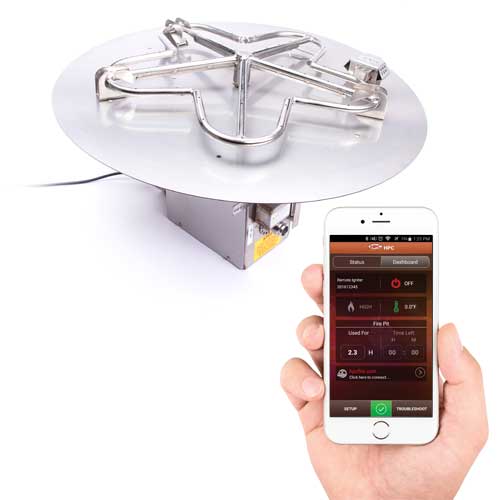

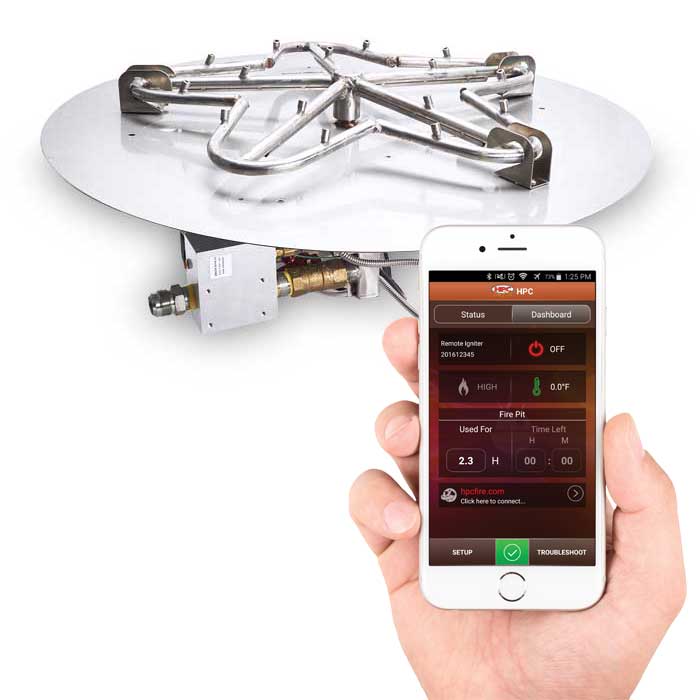

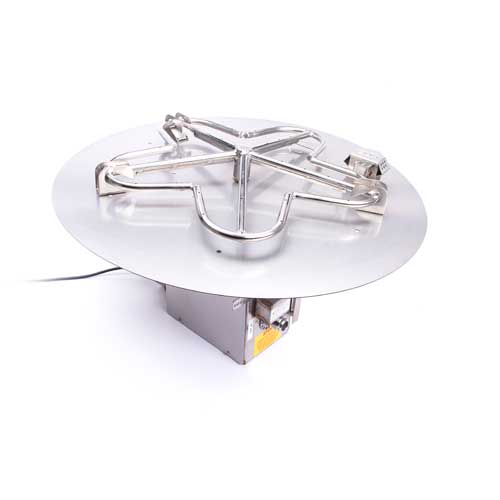

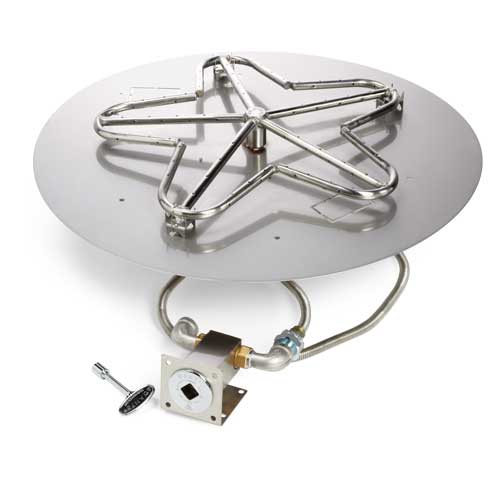

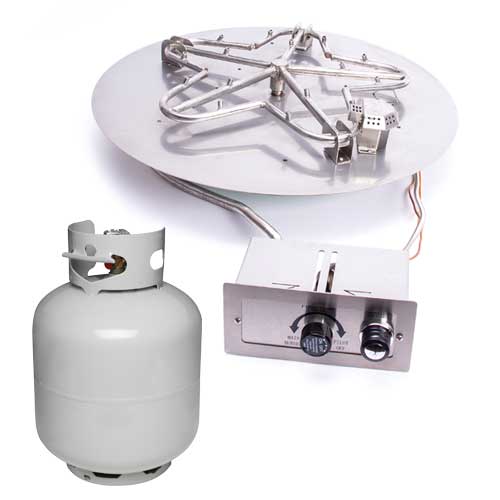

- Electronic, push button or match lit: Electronic hot surface ignition with flame sensing in On/Off or Bluetooth Hi/Lo, push button flame sensing on an AA battery, or a match lit key valve for a simple manual setup.

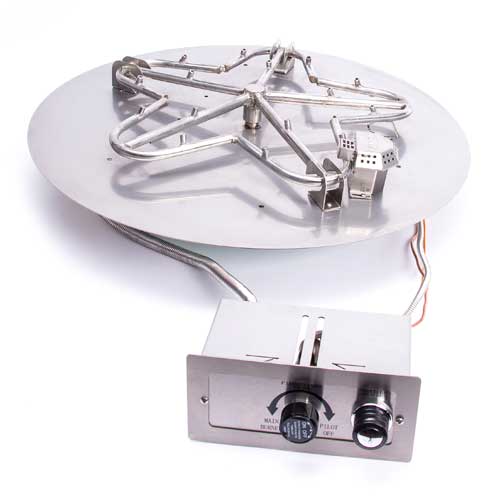

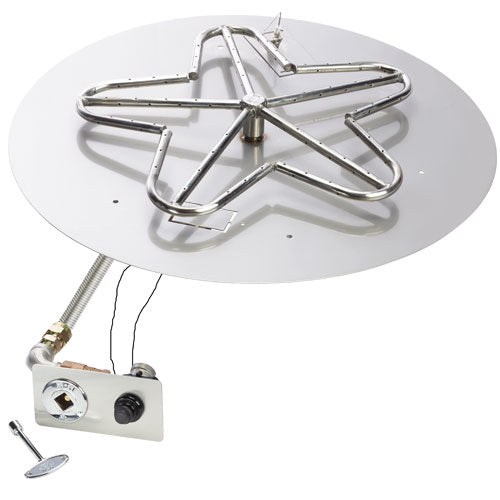

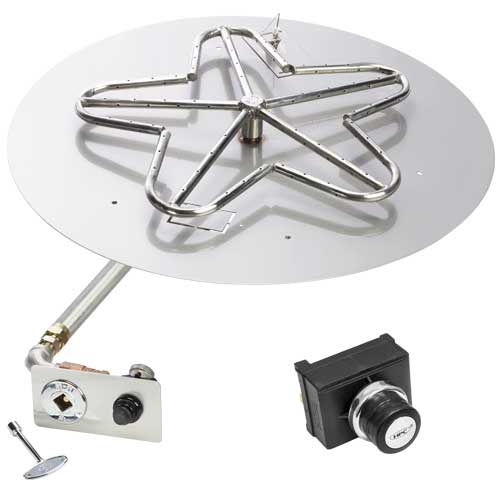

- Non-certified push button kits: The 18", 24" and 30" sizes are also offered as non-certified push button kits with a decorative key valve, listed separately in the ignition option.
Specifications
| Specification | Details |
|---|---|
| Brand | HPC Fire |
| Series | CSA Certified Round Flat Fire Pit Insert |
| Sizes | 8", 14", 18", 24", 30", 36", 42", 54" |
| Pan diameter (push button drawing) | 14": 13.75"; 18": 17.75"; 24": 23.75"; 30": 29.75"; 36": 35.75" |
| Material | 304 stainless steel |
| Burner | 14": round burner; 18" and up: Penta burner, standard or torpedo |
| Ignition options | Electronic Hi/Lo with remote and Bluetooth app; Electronic On/Off; Push Button Flame Sensing; Match Lit with key valve (availability by size in the chart below) |
| Electronic ignition | Flame sensing with hot surface ignition; 120VAC or 24VAC; Hi/Lo models reduce BTU by 40% on the low setting |
| Push button ignition | Flame sensing; spark ignition powered by an AA battery |

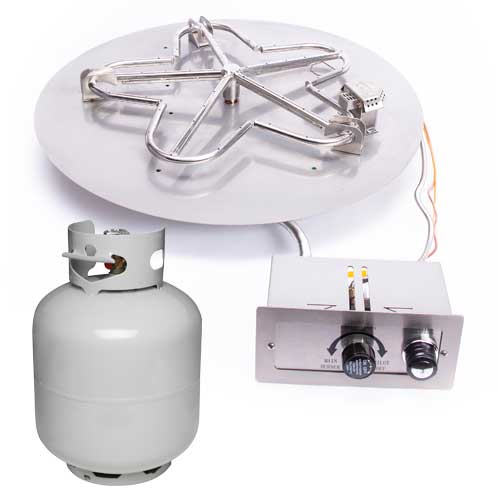

| Gas | Natural gas or liquid propane; small-tank LP versions on the sizes marked in the chart |
| Flex line (push button and match lit) | 36" standard |
| Certification | CSA certified, outdoor use only, for commercial and residential use (HPC drawings); the price list labels some push button models "UL Certified Model" |
| Use | Outdoor only |
BTU rating by size (HPC 2026 price list)
| Size | Electronic (standard / torpedo) | Push button (standard / torpedo) | Match lit | Small-tank LP |
|---|---|---|---|---|
| 8" | Not offered | Not offered | Offered (standard) | Match lit |
| 14" | 90K / not offered | 90K / not offered | 65K | Match lit, push button |
| 18" | 65K / 90K | 65K / 65K | 65K | Match lit, push button |
| 24" | 125K / 140K | 125K / 140K | 65K | Match lit, push button (90K) |
| 30" | 200K / 225K | 200K / 185K | 65K | Match lit |
| 36" | 250K / 275K | 250K / 185K | Not offered | Not offered |
| 42" | 400K / 375K | Not offered | Not offered | Not offered |
| 54" | 400K / 400K | Not offered | Not offered | Not offered |
Installation & Requirements

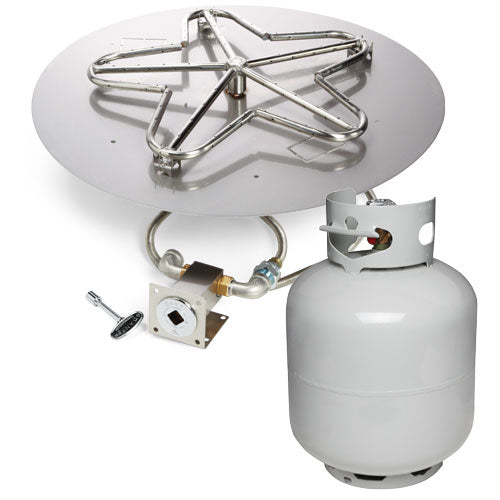

- Gas supply: for fixed piping systems only; the standard models are not for use with small tanks (separate small-tank LP versions are listed where offered).
- Natural gas supply pressure: minimum 3.5" W.C., maximum 7.0" W.C. LP supply pressure: minimum 8" W.C., maximum 11.0" W.C. (HPC drawings dated 7/9/2024).
- Any flex line from the permanent gas supply must be rated to the insert's maximum BTU and certified to ANSI Z21.75/CSA 6.27.
- Enclosure venting: inserts up to 200K BTU need at least 2 vents of 18 sq. in. each on opposing sides; inserts above 200K BTU need at least 4.
- Bowls (copper, concrete or metal): inserts up to 90K BTU need at least 2 vents of 9 sq. in. each on opposing sides, or the bowl raised at least 3/4" above the mounting surface with a hole of at least 6" diameter in the bottom.
- Low-voltage (24VAC) electronic ignition models require a 100-watt power supply, per HPC's electronic ignition drawing.
- Modifying the product voids its certification and warranty. Follow HPC's installation instructions and local codes.
Warranty: HPC warrants its fire pits against manufacturing defects that prevent safe and correct function: stainless steel burners, lifetime; electronics and gas valve, 3 years residential and 1 year commercial; pilot assembly, 2 years residential and 1 year commercial; stainless steel pan and valve box, 5 years residential and 1 year commercial. Coverage runs from the date of original sale or shipment from HPC and covers parts and HPC in-house labor through an HPC return authorization; installation and maintenance labor and damage from overheating, modification, abuse or improper storage are not covered.
Resources
- Round Flat (Dimension drawing, small control box)
- Round Flat (Dimension drawing, electronic ignition)
- Round Flat (Dimension drawing, push button)
- Round Flat (Dimension drawing, match lit)
- Electronic Ignition Hi/Lo (Installation manual)
- Electronic Ignition On/Off (Installation manual)
- Match Lit (Installation manual)
- Push Button / Flame Sense (Installation manual)
- EI pilot assembly remove and replace (Instructions)
- Burner removal (Instructions)
- FPPK valve box (Dimension drawing)
