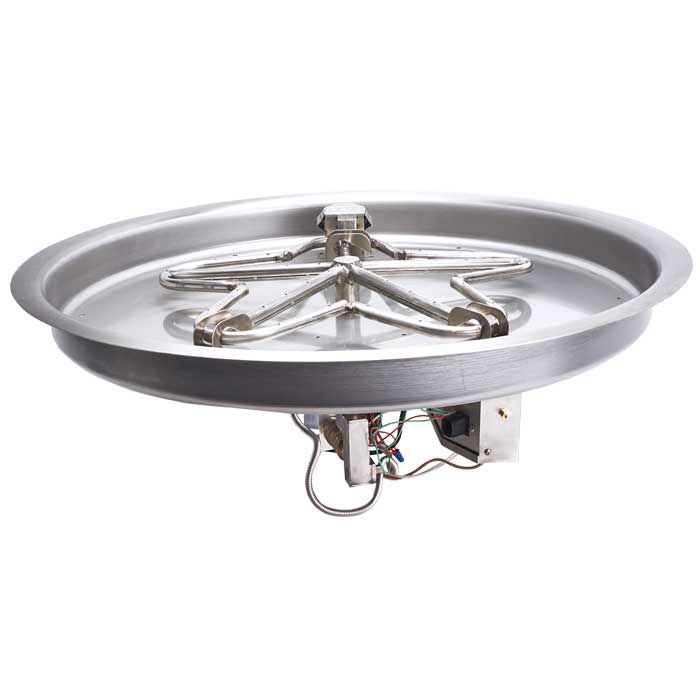

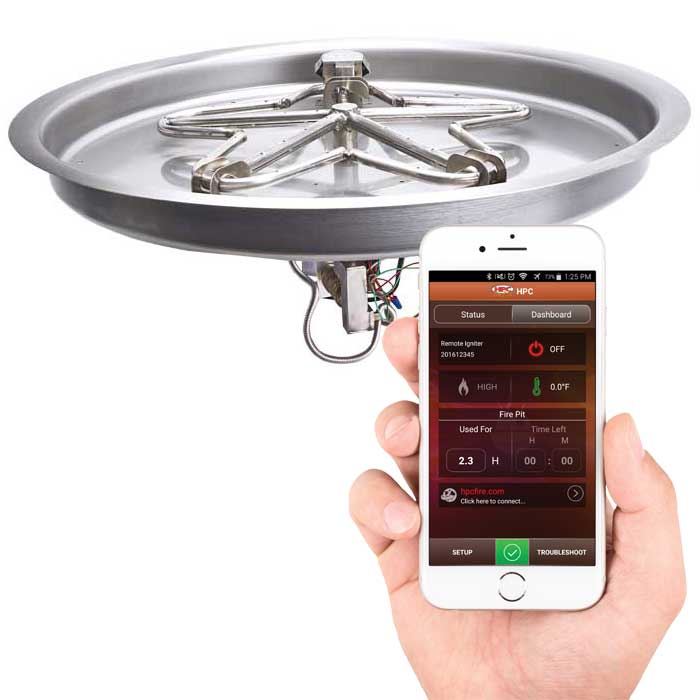

The HPC Fire Round Bowl insert is a fully assembled, spun stainless steel fire pit pan with the burner, controls and gas fitting already in place, ready to drop into a round enclosure or bowl. HPC introduced this spun bowl design in 2004 and it remains its most popular pan style. Choose from six pan sizes, a standard Penta or torpedo burner, and electronic, push button or match lit ignition for natural gas or propane.
Key Features
- Spun 304 stainless steel bowl: The pan is spun from #304, 18 gauge stainless steel, which gives it rigidity, and the sidewall holds fire media in place.
- Recessed burner: The pan lip leaves room for a recessed burner and blowout box, so the flame sits low in the media bed.
- Welded gas fitting and weep holes: The welded fitting adds strength at the gas connection, and weep holes let rainwater drain out of the pan.

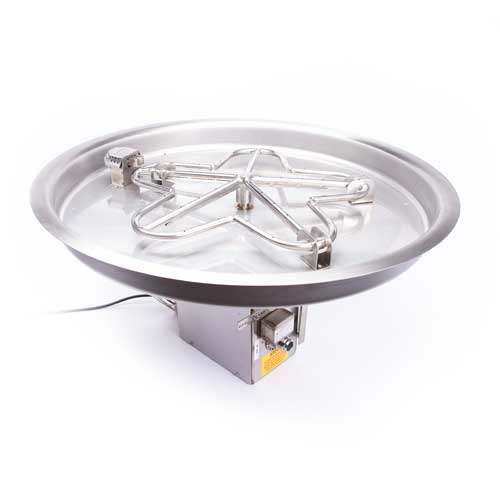

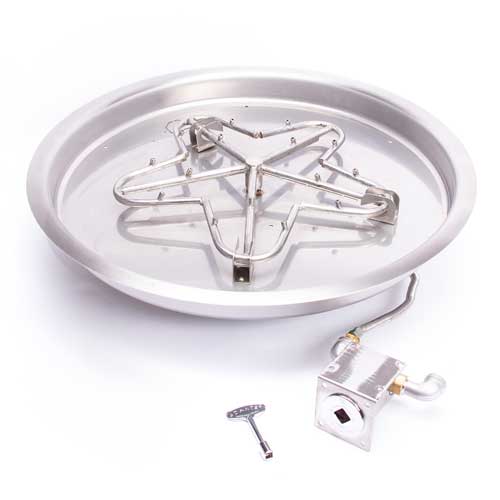

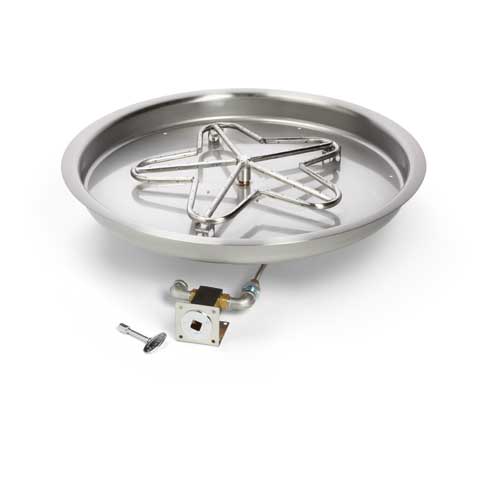

- Four ignition systems: Electronic hot surface ignition with flame sensing (On/Off or Bluetooth Hi/Lo, 120VAC or 24VAC), push button flame sensing, match lit, or a non-certified push button kit with a decorative key valve.

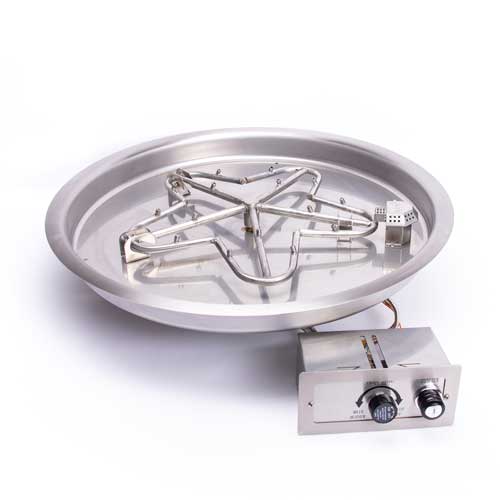

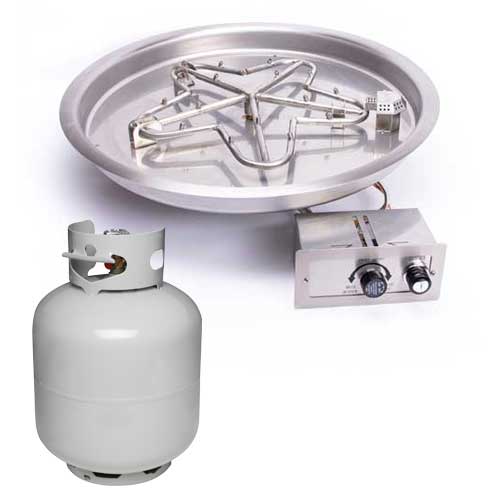

- Standard or torpedo burner: The torpedo version of each Penta burner gives a different flame pattern and, on several electronic sizes, a higher BTU rating (see the BTU chart).
Specifications
| Specification | Details |
|---|---|
| Brand | HPC Fire (Hearth Products Controls, Miamisburg, Ohio) |
| Series | CSA Certified Round Bowl Fire Pit Insert |
| Pan sizes | 13", 19", 25", 31", 37", 43" diameter |
| Pan lip | 1.25" (electronic ignition drawing); 1 1/4" (push button and match lit drawings) |
| Material | #304 stainless steel, 18 gauge, spun bowl |
| Burner | 13" model: 12" round burner (FRS12); 19" to 43": Penta burner (PENTA12 to PENTA36), standard or torpedo |
| Ignition options | Electronic Hi/Lo with remote and Bluetooth app; Electronic On/Off; Push Button Flame Sensing; Match Lit with key valve; Non-Certified push button kit with chrome decorative key valve |
| Electronic ignition | Flame sensing with hot surface ignition; 120VAC or 24VAC; Hi/Lo models reduce BTU by 40% on the low setting |

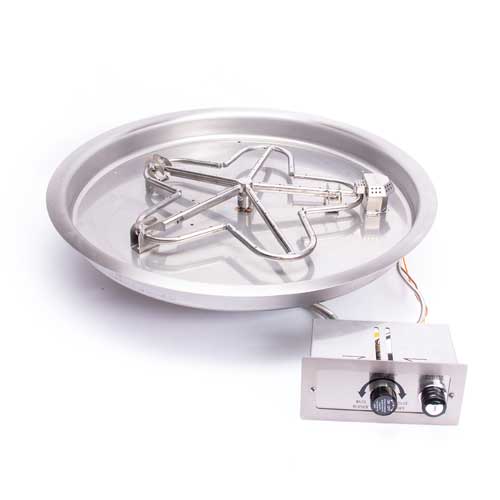

| Push button ignition | Flame sensing; spark ignition powered by an AA battery |

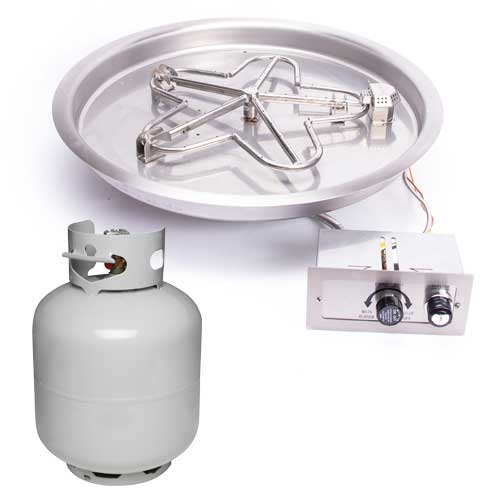

| Gas | Natural gas or liquid propane; small-tank LP versions available for match lit and push button models |
| Gas inlet (match lit) | 1/2" female pipe thread, residential pressure only |
| Flex line (push button and match lit) | 36" standard |
| Certification | CSA certified for outdoor use only, for commercial and residential use (all except the Non-Certified category); the price list labels some natural gas push button models "UL Certified Model" |
| Use | Outdoor only |
BTU rating by size (HPC 2026 price list)
| Pan size | Burner | Electronic (standard / torpedo) | Push button (standard / torpedo) | Match lit | Non-certified kit (standard / torpedo) |
|---|---|---|---|---|---|
| 13" | 12" round | 90K / not offered | 90K / not offered | 65K | Not offered |
| 19" | PENTA12 | 65K / 90K | 65K / 65K | 65K | 65K / 65K |
| 25" | PENTA18 | 125K / 140K | 125K / 140K | 65K | 125K / 140K |
| 31" | PENTA24 | 200K / 225K | 200K / 185K | 65K | 200K / 225K |
| 37" | PENTA30 | 250K / 275K | 250K / 185K | Not offered | Not offered |
| 43" | PENTA36 | 400K / 375K (On/Off only) | Not offered | Not offered | Not offered |
Recommended enclosure size (HPC drawings)
| Pan size | Electronic ignition (drawing 771-045) | Push button (drawing 771-003) | Match lit (drawing 771-009) |
|---|---|---|---|
| 13" | 54" | 45" | 45" |
| 19" | 54" | 45" | 45" |
| 25" | 72" | 54" | 54" |
| 31" | 72" | 54" | 54" |
| 37" | 80" | 54" | Not offered |
| 43" | 90" | Not offered | Not offered |
Installation & Requirements
- Gas supply: for fixed piping systems only; the standard models are not for use with small tanks (separate small-tank LP versions are listed where offered).
- Natural gas supply pressure: minimum 3.5" W.C., maximum 7.0" W.C. LP supply pressure: minimum 8" W.C., maximum 11.0" W.C. (HPC drawings dated 7/9/2024).
- Any flex line from the permanent gas supply must be rated to the insert's maximum BTU and certified to ANSI Z21.75/CSA 6.27.

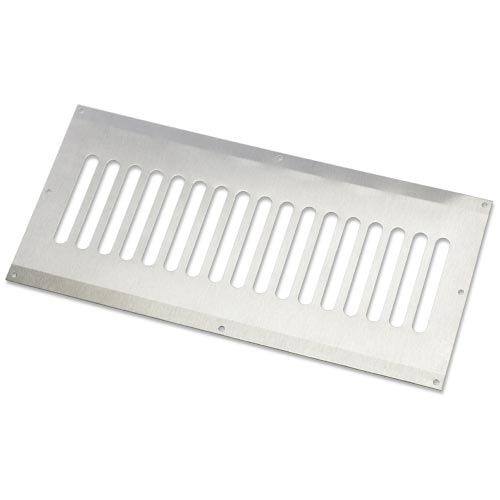

- Enclosure venting: inserts up to 200K BTU need at least 2 vents of 18 sq. in. each on opposing sides; inserts above 200K BTU need at least 4.
- Bowls (copper, concrete or metal): inserts up to 90K BTU need at least 2 vents of 9 sq. in. each on opposing sides, or the bowl raised at least 3/4" above the mounting surface with a hole of at least 6" diameter in the bottom.

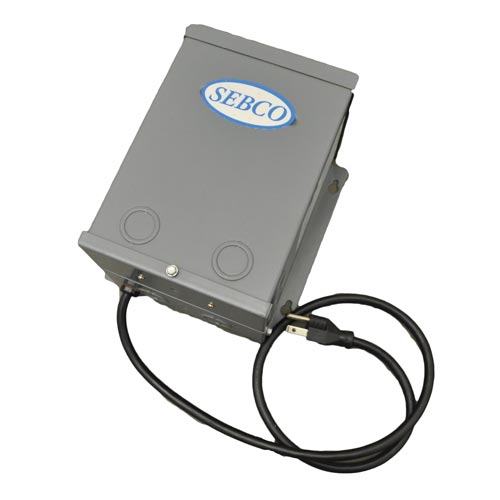

- Low-voltage (24VAC) electronic ignition models require a 100-watt power supply, per HPC's electronic ignition drawing.
- Modifying the product voids its certification and warranty. Follow HPC's installation instructions and local codes.

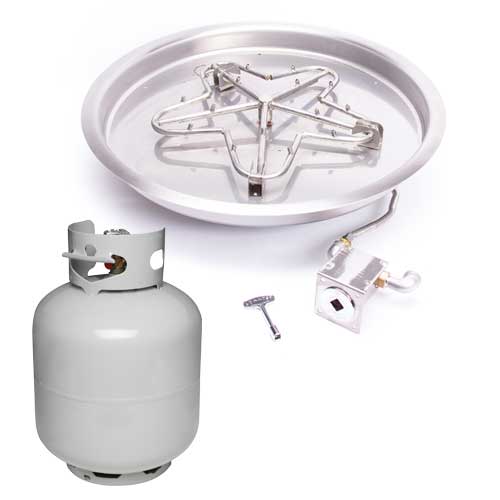

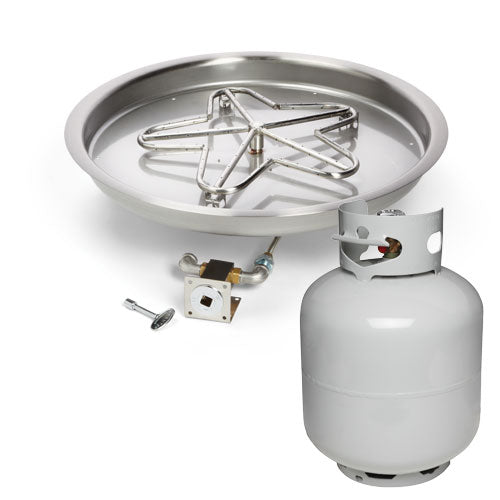

- Small-tank LP push button and match lit versions are rated at 90K and 65K BTU per HPC's price list.
Warranty: HPC warrants its fire pits against manufacturing defects that prevent safe and correct function: stainless steel burners, lifetime; electronics and gas valve, 3 years residential and 1 year commercial; pilot assembly, 2 years residential and 1 year commercial; stainless steel pan and valve box, 5 years residential and 1 year commercial. Coverage runs from the date of original sale or shipment from HPC and covers parts and HPC in-house labor through an HPC return authorization; installation and maintenance labor and damage from overheating, modification, abuse or improper storage are not covered.
Resources
- Round Bowl (Dimension drawing, small control box)
- Round Bowl (Dimension drawing, electronic ignition)
- Round Bowl (Dimension drawing, push button)
- Round Bowl (Dimension drawing, match lit)
- Electronic Ignition Hi/Lo (Installation manual)
- Electronic Ignition On/Off (Installation manual)
- Match Lit (Installation manual)
- Push Button / Flame Sense (Installation manual)
- EI pilot assembly remove and replace (Instructions)
- Burner removal (Instructions)
- FPPK valve box (Dimension drawing)
