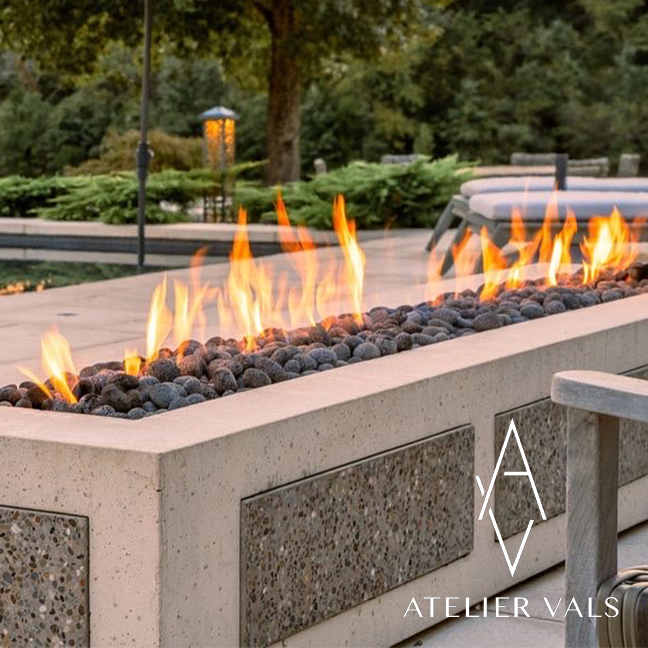

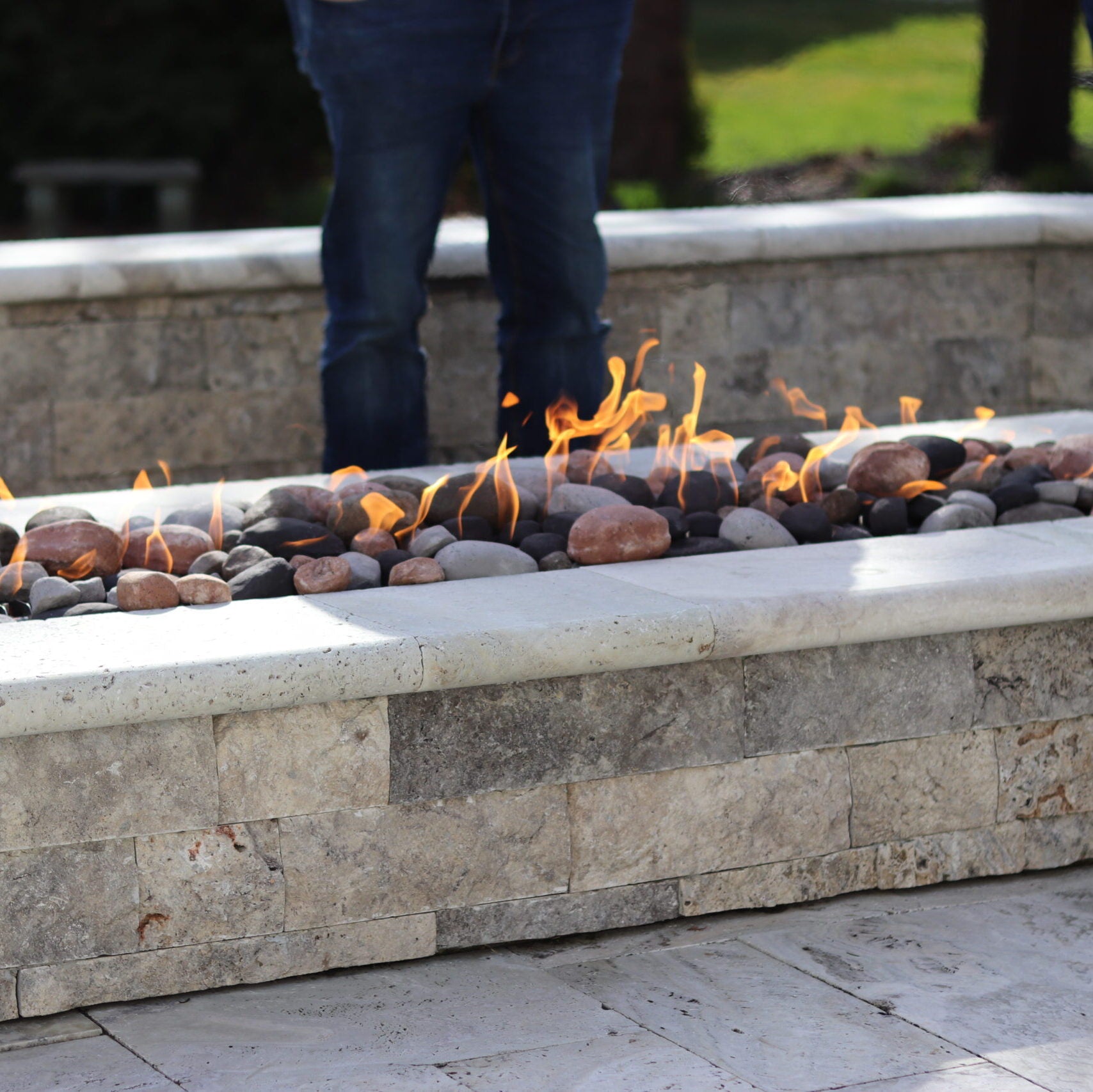

The HPC Fire Linear Trough insert is a narrow stainless steel trough with a straight torpedo burner, made for long, slim fire tables and linear fire features. It comes in six lengths from 24" to 96", with electronic, push button or match lit ignition for natural gas or propane.
Key Features
- Trough pan: The deep, narrow trough holds media along a single flame line.
- Straight torpedo burner: The burner runs nearly the full length of the pan, 24" to 96".

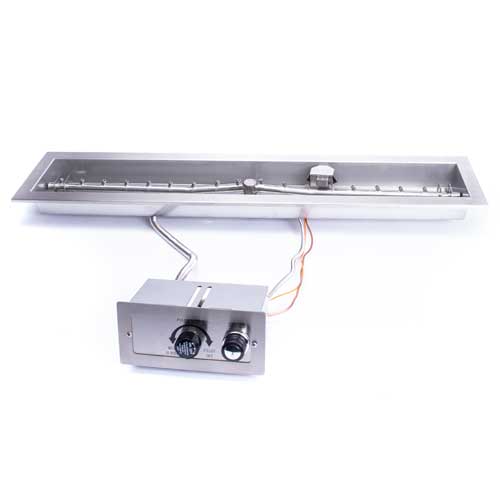

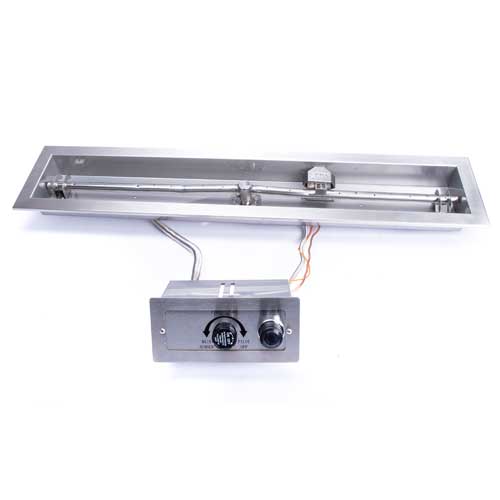

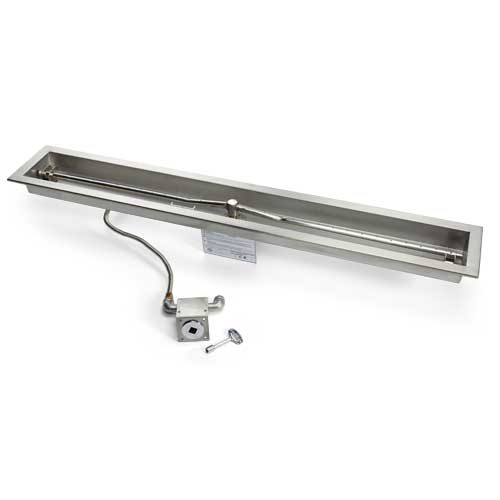

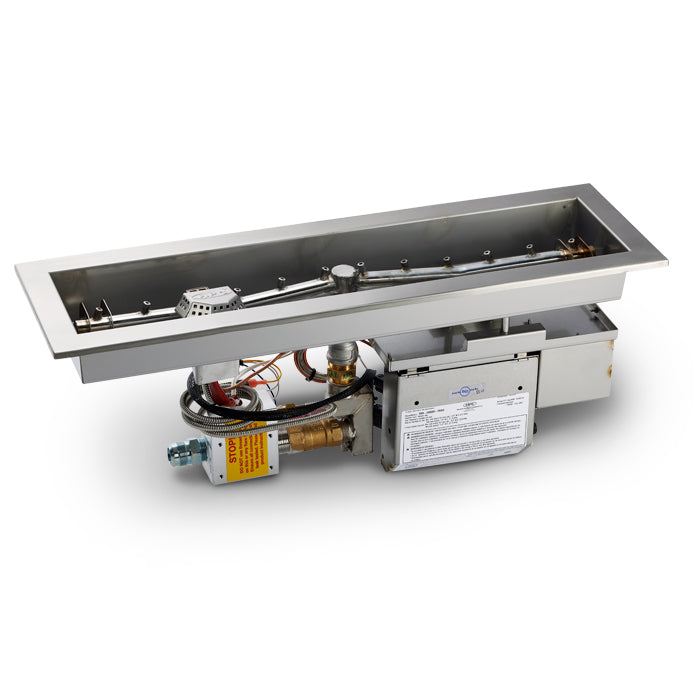

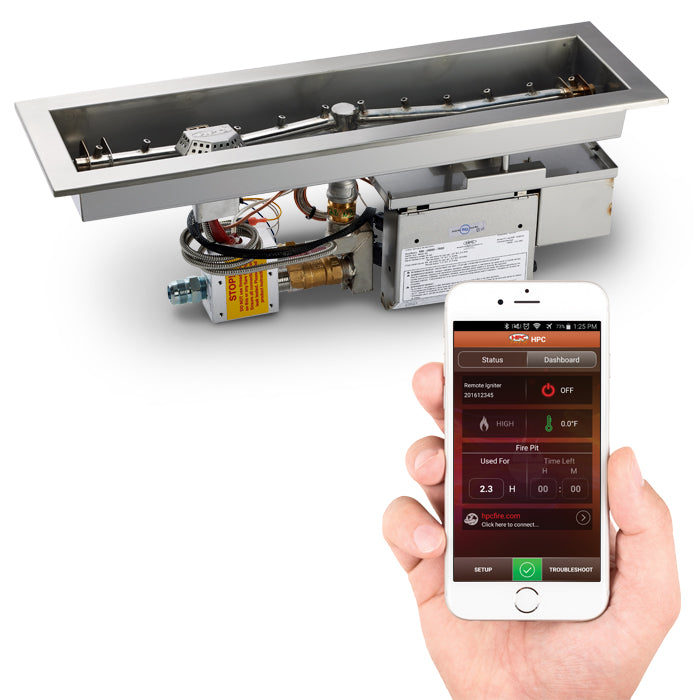

- Electronic, push button or match lit: Electronic hot surface ignition with flame sensing in On/Off or Bluetooth Hi/Lo, push button flame sensing on an AA battery, or a match lit key valve for a simple manual setup.

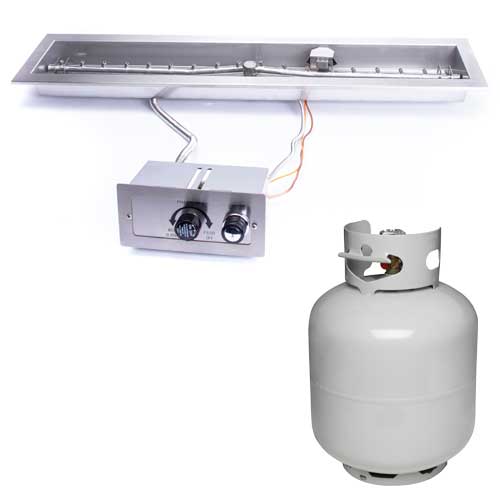

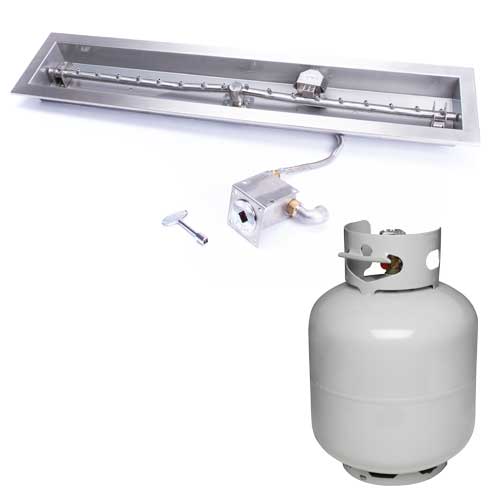

- Small-tank LP versions: Match lit models from 24" to 48" and push button models from 24" to 60" are also built for small LP tanks.
Specifications
| Specification | Details |
|---|---|
| Brand | HPC Fire |
| Series | CSA Certified Linear Trough Fire Pit Insert |
| Lengths | 24", 36", 48", 60", 72", 96" |
| Burner depth C (electronic drawing) | 7-3/4" (+/- 1/2") |
| Material | 304 stainless steel |
| Burner | Torpedo burner on every model in this series |
| Ignition options | Electronic Hi/Lo with remote and Bluetooth app; Electronic On/Off; Push Button Flame Sensing; Match Lit with key valve (availability by size in the chart below) |
| Electronic ignition | Flame sensing with hot surface ignition; 120VAC or 24VAC; Hi/Lo models reduce BTU by 40% on the low setting |
| Push button ignition | Flame sensing; spark ignition powered by an AA battery |
| Gas | Natural gas or liquid propane; small-tank LP versions on the sizes marked in the chart |
| Flex line (push button and match lit) | 36" standard |
| Certification | CSA certified, outdoor use only, for commercial and residential use (HPC drawings); the price list labels some push button models "UL Certified Model" |
| Use | Outdoor only |
Sizes and BTU (HPC drawings and 2026 price list)
| Size | Pan length | Burner length | Electronic | Push button | Match lit | Recommended enclosure (push button) |
|---|---|---|---|---|---|---|
| 24" | 24.5" | 24" | 75K | 75K | 65K | 44" L x 24" W |
| 36" | 36.5" | 36" | 115K | 115K (small tank 90K) | 65K | 56" L x 24" W |
| 48" | 48.5" | 48" | 150K | 150K (small tank 90K) | 65K | 68" L x 24" W |
| 60" | 60.5" | 60" | 175K | 175K (small tank 90K) | Not offered | 80" L x 24" W |
| 72" | 72.5" | 72" | 200K | 200K | Not offered | 92" L x 24" W |
| 96" | 96.5" | 96" | 300K | Not offered | Not offered | Not listed |
Installation & Requirements
- Gas supply: for fixed piping systems only; the standard models are not for use with small tanks (separate small-tank LP versions are listed where offered).
- Natural gas supply pressure: minimum 3.5" W.C., maximum 7.0" W.C. LP supply pressure: minimum 8" W.C., maximum 11.0" W.C. (HPC drawings dated 7/9/2024).
- Any flex line from the permanent gas supply must be rated to the insert's maximum BTU and certified to ANSI Z21.75/CSA 6.27.
- Enclosure venting: inserts up to 200K BTU need at least 2 vents of 18 sq. in. each on opposing sides; inserts above 200K BTU need at least 4.
- Bowls (copper, concrete or metal): inserts up to 90K BTU need at least 2 vents of 9 sq. in. each on opposing sides, or the bowl raised at least 3/4" above the mounting surface with a hole of at least 6" diameter in the bottom.
- Low-voltage (24VAC) electronic ignition models require a 100-watt power supply, per HPC's electronic ignition drawing.
- Modifying the product voids its certification and warranty. Follow HPC's installation instructions and local codes.
Warranty: HPC warrants its fire pits against manufacturing defects that prevent safe and correct function: stainless steel burners, lifetime; electronics and gas valve, 3 years residential and 1 year commercial; pilot assembly, 2 years residential and 1 year commercial; stainless steel pan and valve box, 5 years residential and 1 year commercial. Coverage runs from the date of original sale or shipment from HPC and covers parts and HPC in-house labor through an HPC return authorization; installation and maintenance labor and damage from overheating, modification, abuse or improper storage are not covered.
Resources
- Linear Trough (Dimension drawing, small control box)
- Linear Trough (Dimension drawing, electronic ignition)
- Linear Trough (Dimension drawing, push button)
- Linear Trough (Dimension drawing, match lit)
- Electronic Ignition Hi/Lo (Installation manual)
- Electronic Ignition On/Off (Installation manual)
- Match Lit (Installation manual)
- Push Button / Flame Sense (Installation manual)
- EI pilot assembly remove and replace (Instructions)
- Burner removal (Instructions)
- FPPK valve box (Dimension drawing)
