The HPC Fire H-Flat insert pairs a torpedo H-burner with a flat rectangular stainless steel pan for fire tables and rectangular pits. It comes in eight sizes from 27" x 15" to 93" x 19", with electronic, push button or match lit ignition for natural gas or propane.
Key Features
- Flat rectangular pan: The flat pan keeps the burner shallow for fire tables and low-profile enclosures.
- Torpedo H-burner: The H layout spreads the flame along the pan; the BTU rating is set by size and ignition.

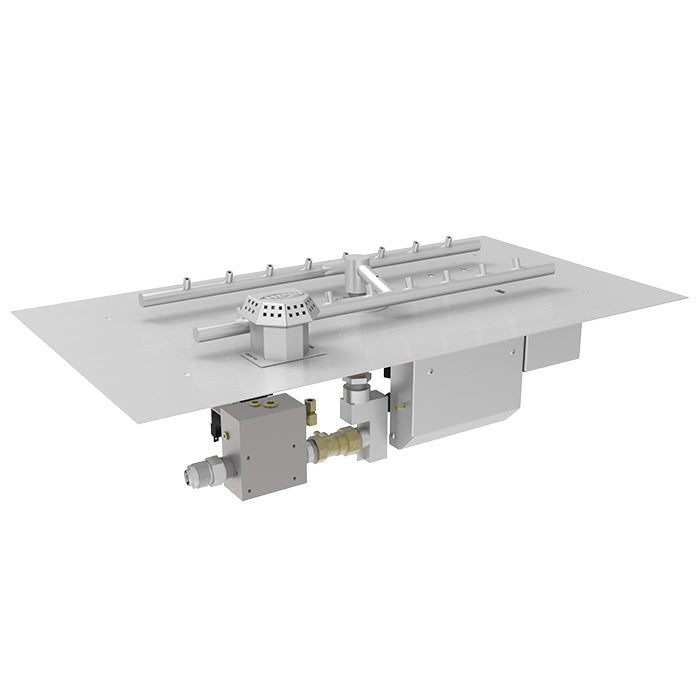

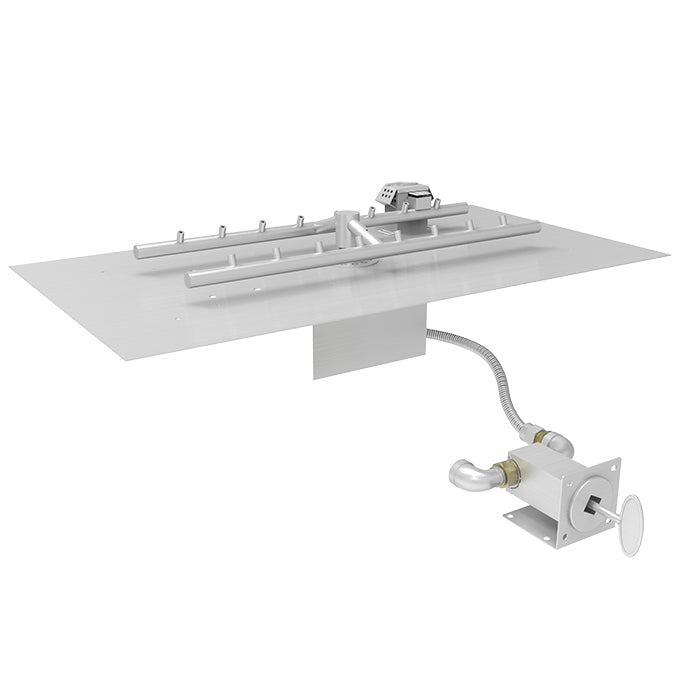

- Electronic, push button or match lit: Electronic hot surface ignition with flame sensing in On/Off or Bluetooth Hi/Lo, push button flame sensing on an AA battery, or a match lit key valve for a simple manual setup.
Specifications
| Specification | Details |
|---|---|
| Brand | HPC Fire |
| Series | CSA Certified H-Flat Fire Pit Insert |
| Sizes (pan A x B) | 27" x 15", 33" x 15", 39" x 17", 45" x 17", 57" x 19", 69" x 19", 81" x 19", 93" x 19" |
| Burner depth C (electronic drawing) | 7-3/4" (+/- 1/2") |
| Material | 304 stainless steel |
| Burner | Torpedo burner on every model in this series |
| Ignition options | Electronic Hi/Lo with remote and Bluetooth app; Electronic On/Off; Push Button Flame Sensing; Match Lit with key valve (availability by size in the chart below) |
| Electronic ignition | Flame sensing with hot surface ignition; 120VAC or 24VAC; Hi/Lo models reduce BTU by 40% on the low setting |

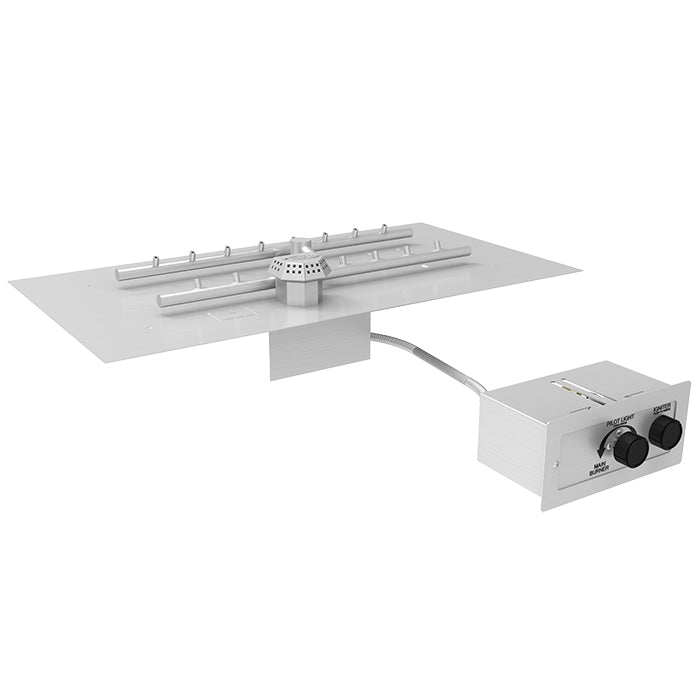

| Push button ignition | Flame sensing; spark ignition powered by an AA battery |
| Gas | Natural gas or liquid propane; small-tank LP versions on the sizes marked in the chart |
| Flex line (push button and match lit) | 36" standard |
| Certification | CSA certified, outdoor use only, for commercial and residential use (HPC drawings); the price list labels some push button models "UL Certified Model" |
| Use | Outdoor only |
BTU rating by size (HPC 2026 price list)
| Size | Electronic | Push button | Match lit | Recommended enclosure (push button drawing) |
|---|---|---|---|---|
| 27" x 15" | 115K | 115K (small tank 75K) | 65K | 56" L x 28" W |
| 33" x 15" | 150K | 150K (small tank 90K) | 65K | 56" L x 28" W |
| 39" x 17" | 175K | 150K (small tank 90K) | 65K | 64" L x 32" W |
| 45" x 17" | 200K | 200K | Not offered | 64" L x 32" W |
| 57" x 19" | 250K | 200K | Not offered | 76" L x 38" W |
| 69" x 19" | 300K | Not offered | Not offered | Not listed |
| 81" x 19" | 350K | Not offered | Not offered | Not listed |
| 93" x 19" | 400K | Not offered | Not offered | Not listed |
Installation & Requirements
- Gas supply: for fixed piping systems only; the standard models are not for use with small tanks (separate small-tank LP versions are listed where offered).
- Natural gas supply pressure: minimum 3.5" W.C., maximum 7.0" W.C. LP supply pressure: minimum 8" W.C., maximum 11.0" W.C. (HPC drawings dated 7/9/2024).
- Any flex line from the permanent gas supply must be rated to the insert's maximum BTU and certified to ANSI Z21.75/CSA 6.27.
- Enclosure venting: inserts up to 200K BTU need at least 2 vents of 18 sq. in. each on opposing sides; inserts above 200K BTU need at least 4.
- Bowls (copper, concrete or metal): inserts up to 90K BTU need at least 2 vents of 9 sq. in. each on opposing sides, or the bowl raised at least 3/4" above the mounting surface with a hole of at least 6" diameter in the bottom.
- Low-voltage (24VAC) electronic ignition models require a 100-watt power supply, per HPC's electronic ignition drawing.
- Modifying the product voids its certification and warranty. Follow HPC's installation instructions and local codes.
Warranty: HPC warrants its fire pits against manufacturing defects that prevent safe and correct function: stainless steel burners, lifetime; electronics and gas valve, 3 years residential and 1 year commercial; pilot assembly, 2 years residential and 1 year commercial; stainless steel pan and valve box, 5 years residential and 1 year commercial. Coverage runs from the date of original sale or shipment from HPC and covers parts and HPC in-house labor through an HPC return authorization; installation and maintenance labor and damage from overheating, modification, abuse or improper storage are not covered.
Resources
- H-Burner Flat (Dimension drawing, small control box)
- H-Burner Flat (Dimension drawing, push button)
- H-Burner Flat (Dimension drawing, match lit)
- Electronic Ignition Hi/Lo (Installation manual)
- Electronic Ignition On/Off (Installation manual)
- Match Lit (Installation manual)
- Push Button / Flame Sense (Installation manual)
- EI pilot assembly remove and replace (Instructions)
- Burner removal (Instructions)
- FPPK valve box (Dimension drawing)
