Why ITALFORNI Tunnel Stone Gas?
The ITALFORNI Tunnel Stone Gas (TSGAS) is engineered for high-throughput, consistent baking with the simplicity of a conveyor—while delivering true stone-deck results. As the only static gas conveyor belt oven designed to cook directly on refractory stone, it’s a smart investment for operations that need repeatable quality, low consumption, and easy training for non-specialized staff. Sourced through Perfection Plaza, it’s built to integrate cleanly into automated production lines where uptime and output matter.
Performance & Key Features

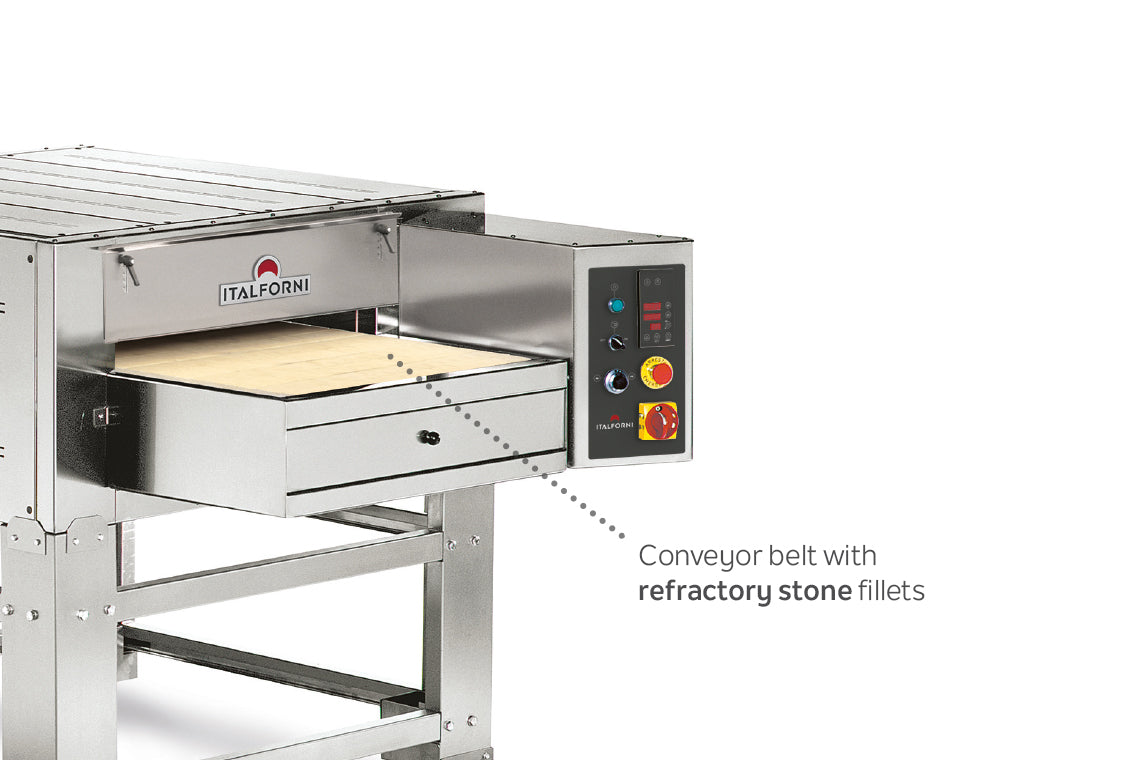

- Static gas conveyor baking on refractory stone: Cooks directly on refractory stone fillets/bars for authentic bottom heat and consistent bake quality across pizzas, focaccia, tortillas, piadine, bruschetta, crostini, chicken wings, and meats.
- Atmospheric burners with safety valves under the baking floor: Heat is delivered where it’s needed most for stable stone performance, with integrated safety valves for controlled operation.
- Maximum temperature 420°C (0–420°C range): High-heat capability supports fast bakes and strong oven spring while maintaining control across a wide operating range.
- Adjustable conveyor belt speed (digital or mechanic): Dial in bake time precisely for different products and loads—supporting both “slow & fast” production requirements.
- +30% cooking capacity vs convection models: Higher throughput per footprint to improve output and ROI in busy service or production environments.
- Conveyor size: 79 cm conveyor (listed as 79 cm and 79 cm (L/W)) to support continuous loading and consistent spacing.
- Internal chamber dimensions (H×W×D): 11 × 85 × 114 cm for a compact bake chamber optimized for conveyor efficiency.
- External dimensions (H×W×D): 66 × 142 × 216 cm to fit production lines while maintaining a high-capacity belt format.
- Gas power rating: Max 40420 Kcal/h (also listed as Max 40420 Kcal) and Med 20700 Kcal/h to balance peak recovery with efficient day-to-day operation.
- Electrical supply: 230/1/50-60 (V/Ph/Hz) for straightforward integration into standard single-phase electrical environments (controls and conveyor drive).
- Excellent thermal insulation: Designed for heat retention and operating efficiency with “excellent insulation” and “thermal insulation” specified.
- Strong isolation with cool-touch exterior: External oven temperature remains around 30°C to improve operator comfort and reduce ambient heat load.
- Full view inside: Complete visibility of the cooking chamber supports quality control without interrupting flow.
- Removable crumb collection drawers/trays: Built-in crumb management with removable trays/drawers for faster cleaning and better hygiene.
- Self-lubricating bearings: Self-lubricated bearing design reduces routine maintenance demands and supports long-term uptime.
- Adjustable inlet and outlet shutters: Fine-tune heat retention and airflow at entry/exit points to stabilize bake results across different products.
-
Hour production (MOD. TSGAS) at 3.0 min baking time:
- Ø 15 cm (6”): 3.0 min | 710 per hour
- Ø 20 cm (8”): 3.0 min | 325 per hour
- Ø 25 cm (10”): 3.0 min | 273 per hour
- Ø 30 cm (12”): 3.0 min | 147 per hour
- Ø 35 cm (14”): 3.0 min | 130 per hour
- Ø 45 cm (18”): 3.0 min | 74 per hour
- Ø 50 cm (20”): 3.0 min | 44 per hour

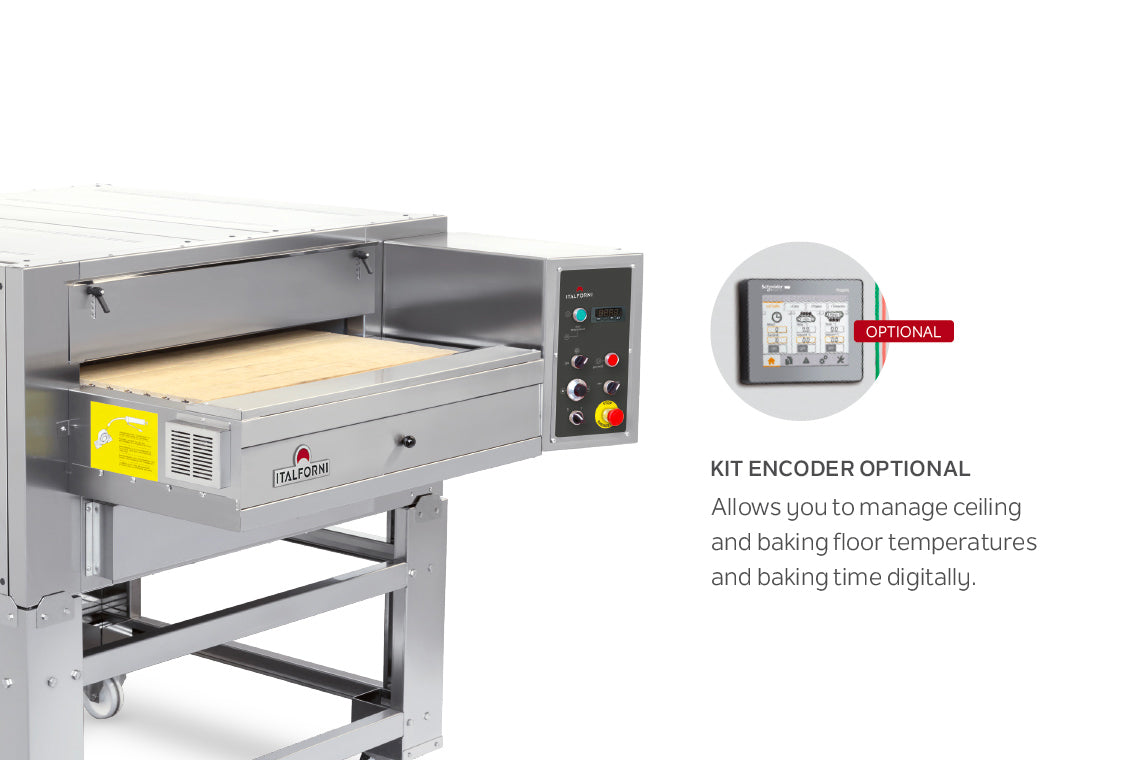

- Optional KIT ENCODER: Digital management of parameters and conveyor belt control through encoder for tighter process control and repeatability.
Build Quality & Design
- Stainless steel (Inox) front finishing (Oven/Deck): Stainless steel front finish supports durability, corrosion resistance, and a professional presentation on the line.
- Stainless steel (Inox) front finishing (Stand): Matching stainless front finish for a cohesive, easy-to-clean installation.
- Deck weight: 400 kg for stable, production-grade placement and reduced vibration during continuous operation.
- Stand dimensions (H×W×D): 62 × 133 × 115 cm to properly support the oven footprint and working height.
- Stand weight: 42 kg for a sturdy base that remains practical for installation planning.
