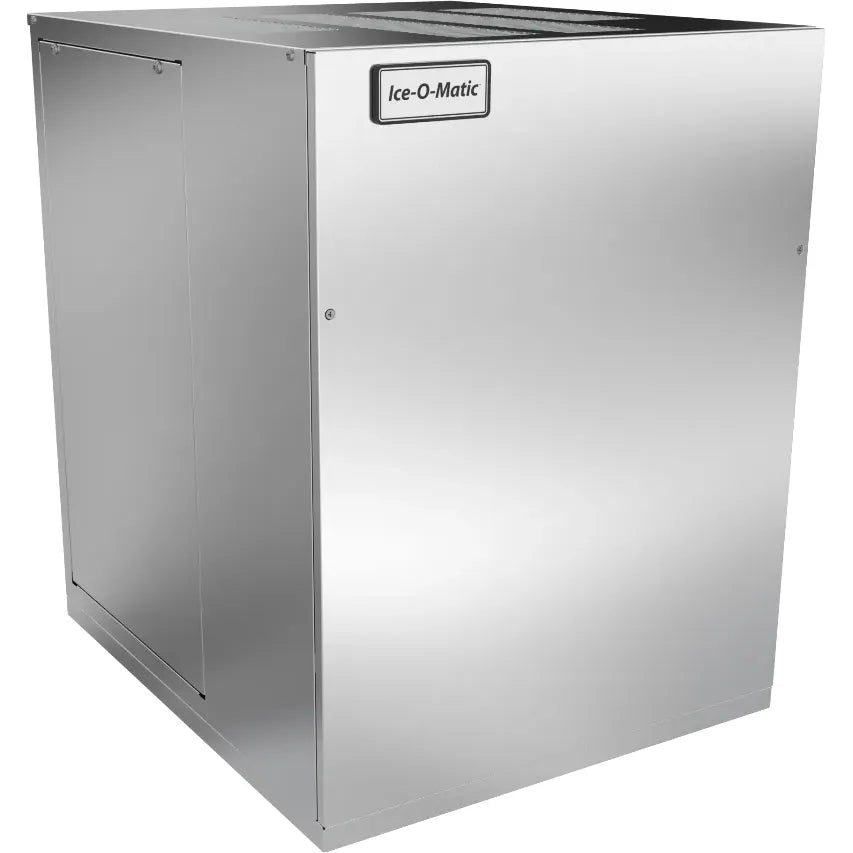

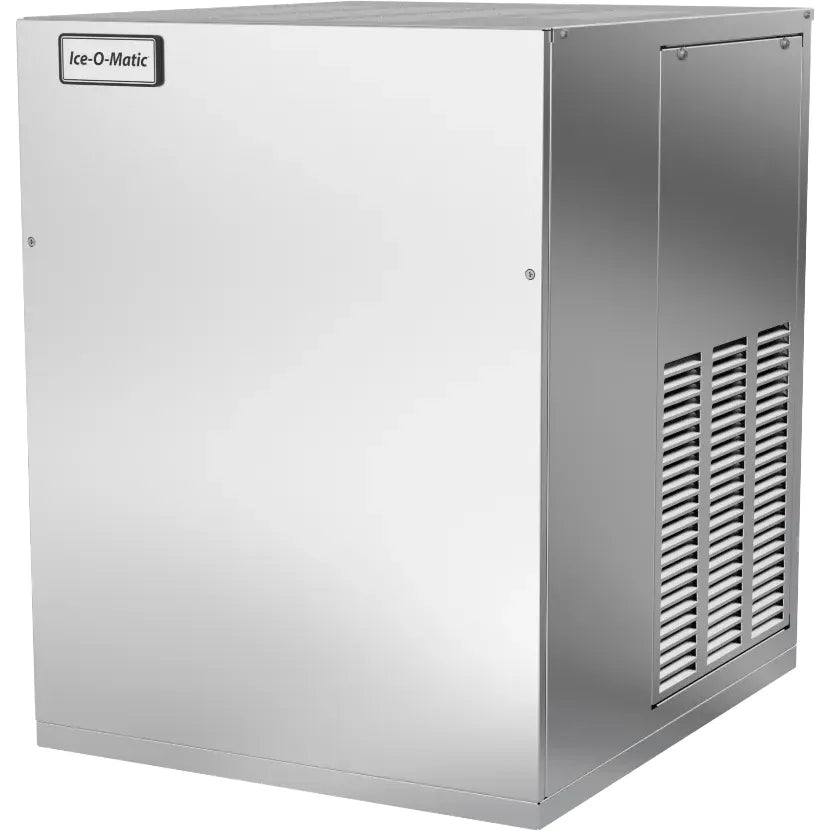

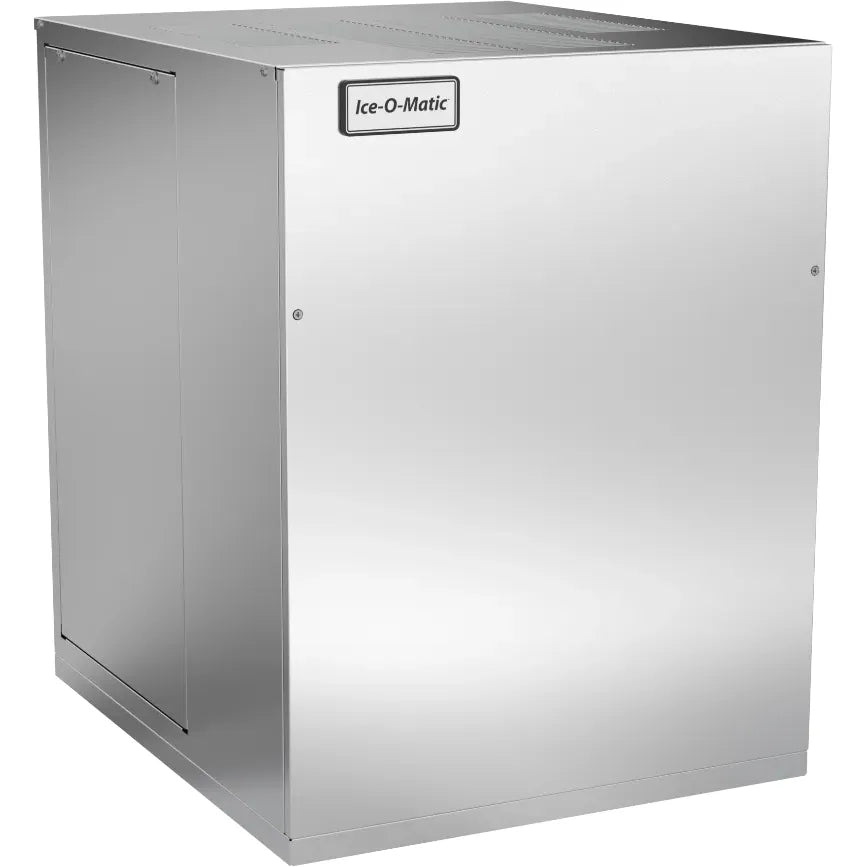

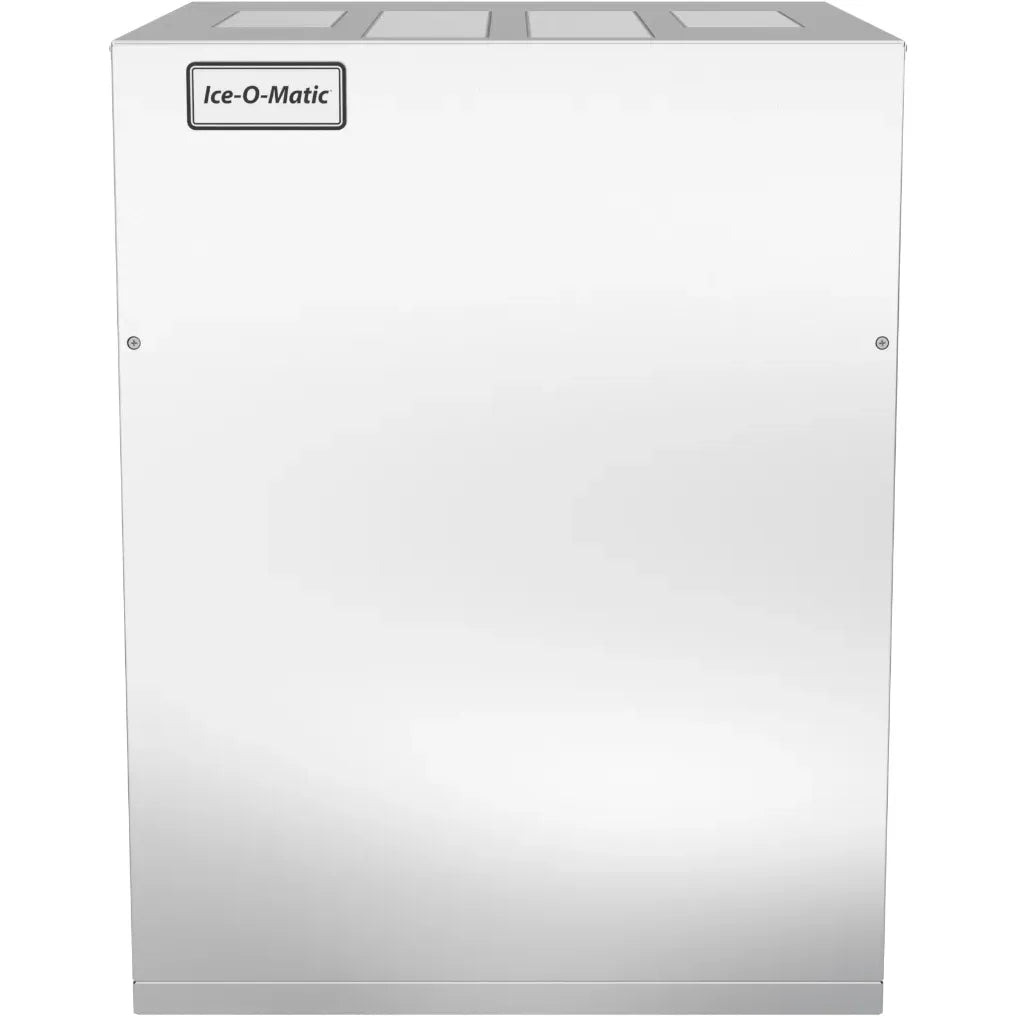

Ice-O-Matic 21-Inch Modular Pearl Nugget Ice Maker, Air-Cooled, 415 lb/24 hr, 115V GEM0450A90
The Ice-O-Matic GEM0450A90 is a 21-inch air-cooled modular ice maker that produces up to 415 lb of Pearl nugget ice per 24 hours at 70°F air and 50°F water. It mounts on a separate ice bin or dispenser (sold separately) and runs on 115/60/1 power with R290 refrigerant.
Key Features
- Pearl Ice: Soft, chewable nugget-style ice that cools beverages faster and longer while maintaining flavors better.
- Lower water and power use: Uses less water and power than cube ice makers.
- Gearbox load monitoring: Constantly checks the workload on the gearbox and shuts the system down before a problem develops, helping prevent costly repairs.
- Heavy-duty drive: A heavy-duty gearbox and maintenance-free, industrial-grade double roller bearings are built for years of trouble-free service.
- Water sensor: Prevents low- or no-water failures and keeps operating in adverse water conditions.
- Non-contact ice detection: A built-in, non-contact ice detection system provides a fail-safe automatic shutoff.
Specifications
| Specification | GEM0450A90 |
|---|---|
| Model | GEM0450A90 |
| Energy Star | Yes |
| Ice production per 24 hrs at 70° air / 50° water | 415 (188) lb (kg) |
| Ice production per 24 hrs at 90° air / 70° water | 303 (137) lb (kg) |
| Condensing type | Air |
| Voltage/Hertz/Phase | 115/60/1 |
| Min. Circuit Amp | 10.7 |
| Max Breaker Size | 15 A |
| kWh per 100 lbs of ice at 70°F air / 50°F water | 2.45 |
| kWh per 100 lbs of ice at 90°F air / 70°F water | 3.7 |
| Potable water usage at 90°F air / 70°F water | 12 gallons per 100 lbs of ice |
| Condenser water usage at 90°F air / 70°F water | N/A |
| BTU (approx per hour) | 4070 |
| Number of Wires | 3 (including ground) |
| Refrigerant | R290 |
| Refrigeration Charge | 4.23 oz / 120 g |
| Unit Width | 21 in (533 mm) |
| Unit Depth | 24.25 in (616 mm) |
| Unit Height | 27.03 in (687 mm) |
| Shipping Weight | 163 lbs / 74 kg |
| Shipping Dimensions (in.) | 24 (W) x 27 (D) x 32 (H) |
| Shipping Dimensions (mm) | 610 (W) x 686 (D) x 813 (H) |
| Ice form | PEARL ICE |
| Ice size | 1/2 x 3/8 in.; 12.7 x 9.5 mm |
| Ambient air temperature (min. to max.) | 50°F (10°C) to 100°F (38°C) |
| Water Temp (min. to max.) | 40°F (4°C) to 100°F (38°C) |
| Water Pressure (min. to max.) | 20 PSIG (1.4 BAR) to 80 PSIG (5.5 BAR) |
| Water filter | IFQ1-FS manifold system with IOMQ-FS replacement cartridge |
Installation & Requirements

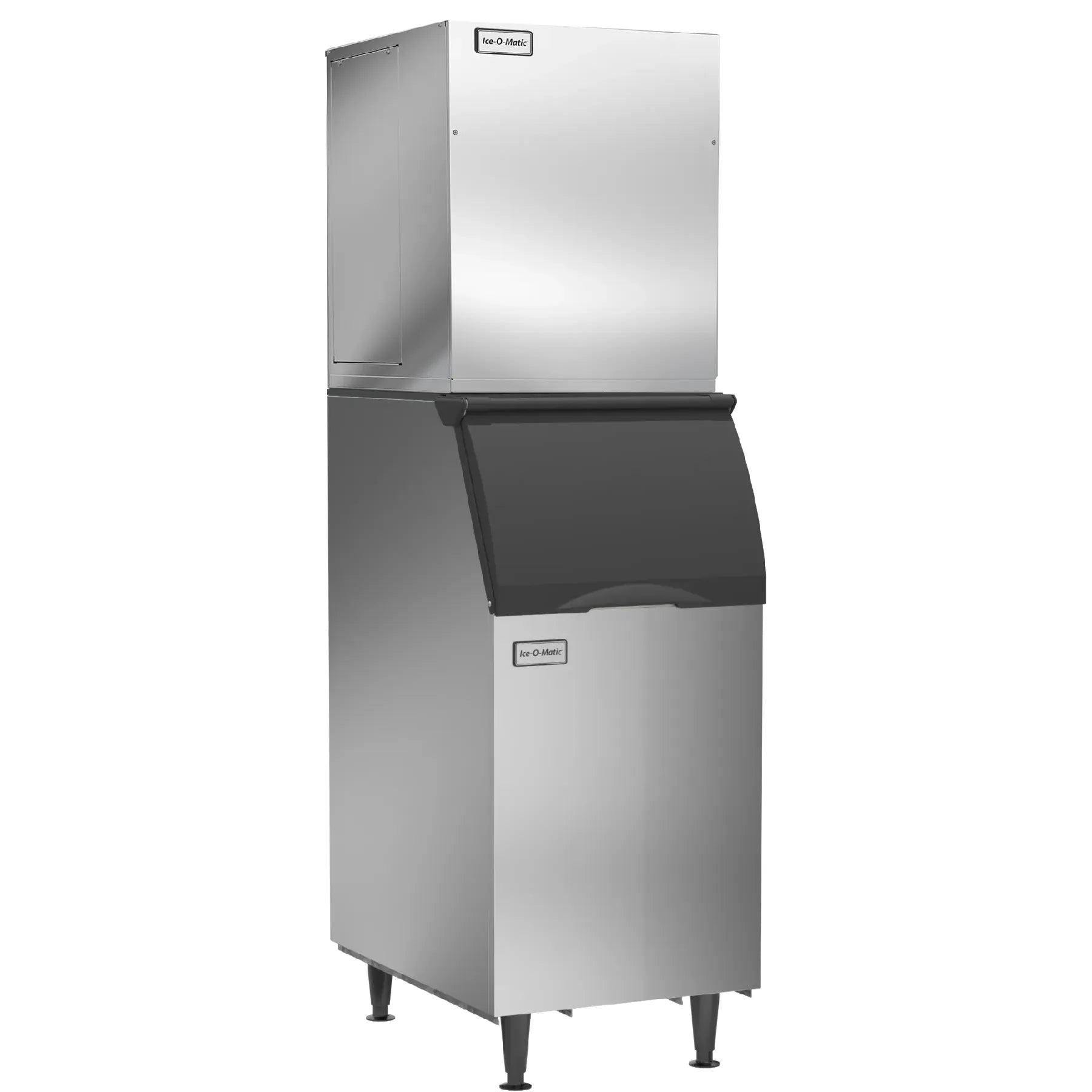

- Requires an ice storage bin or dispenser (sold separately); see the suggested combinations below.
- Electrical: voltage/hertz/phase 115/60/1; min. circuit amp 10.7; max breaker size 15 A.
- Connections: A. Ice Maker Drain, 3/4" FPT; B. Ice Maker Potable Water Inlet, 3/8" FPT; C. Electrical Connection, .875" (22.2 mm).
Suggested Bin Combinations
Ice-O-Matic suggests these bin and adapter combinations for the GEM0450A90:
- B40 with KBT19
- B42 with KBT24
- B55 with KBT19
- B110 with KBT23C
Warranty: Ice Maker: 3 years parts and labor; Compressor: 5 years parts.
