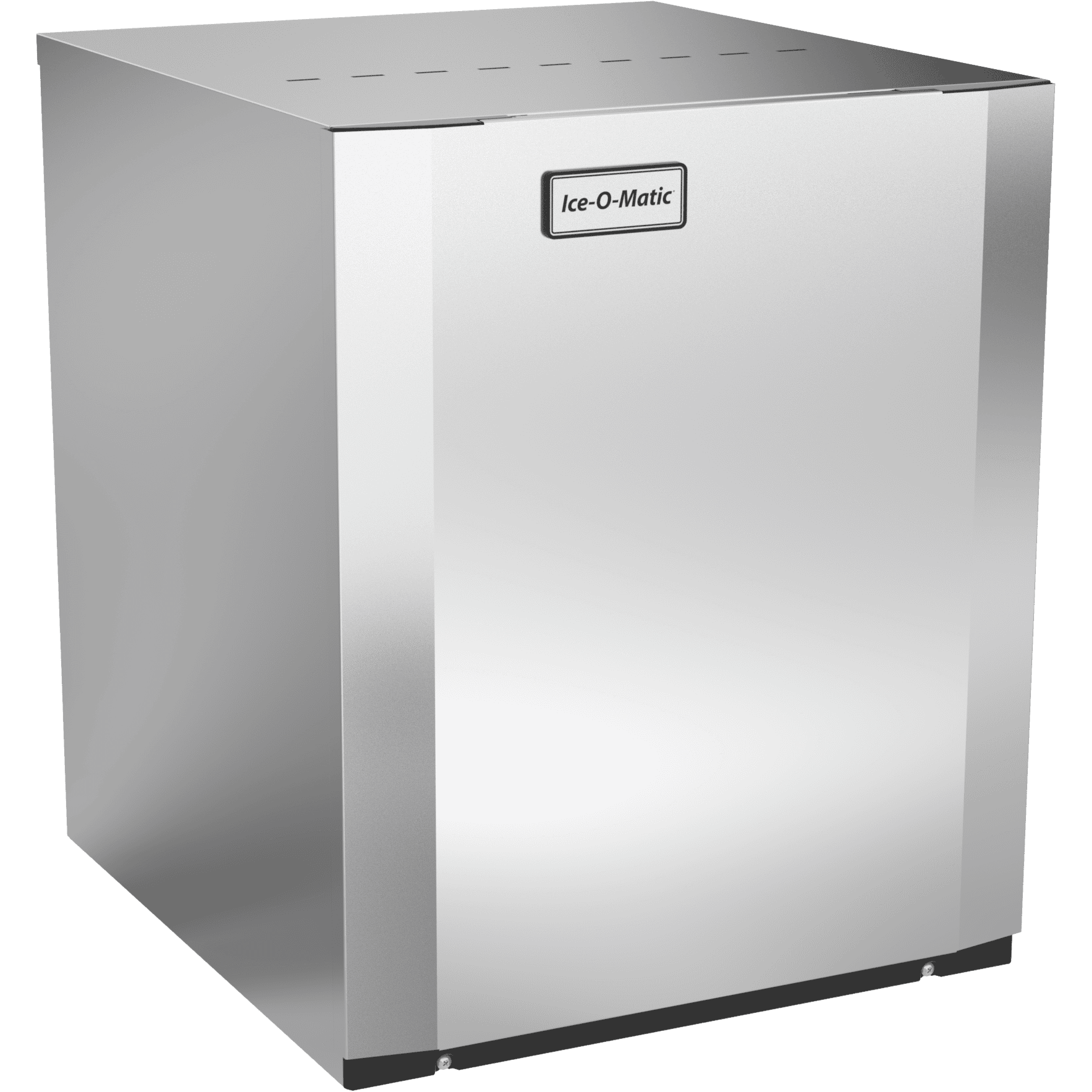

Ice-O-Matic 22-Inch Modular Half Cube Ice Maker, Remote Condenser, 850 lb/24 hr, 208-230V CIM0826HR49
The Ice-O-Matic CIM0826HR49 is a 22-inch remote-condenser modular ice maker that produces up to 850 lb of half cube ice per 24 hours at 70°F air and 50°F water. It mounts on a separate ice bin or dispenser (sold separately) and runs on 208-230/60/1 power with R449A refrigerant. Pair it with the RC206C49 remote condenser and a line set, both sold separately.
Key Features
- Modular design: Mounts on a compatible Ice-O-Matic bin or ice and beverage dispenser, so you can match storage to your volume.
- Harvest Assist: Keeps ice production consistent for the life of the machine while reducing energy consumption and increasing capacity.
- Faster cleaning: The front-facing evaporator and dishwasher-safe plastic components (up to 180°F) make routine cleaning quicker, which lowers operating costs.
- Nickel-plated evaporator: Electroless nickel plating on the evaporator plates protects the freezing surface for reliable, long-term production.
- Simple service: Shares many common parts with other CIM machines, so service technicians work with familiar components.
- Aluminum exterior: Corrosion-resistant, fingerprint-proof aluminum keeps the cabinet looking clean.
Specifications
| Specification | CIM0826HR49 |
|---|---|
| Model | CIM0826HR49 |
| BABA Compliant | Yes |
| Ice production per 24 hrs at 70° air / 50° water | 850 (386) lb (kg) |
| Ice production per 24 hrs at 90° air / 70° water | 759 (344) lb (kg) |
| Condensing Type | Remote |
| Voltage/Hertz/Phase | 208-230/60/1 |
| Min. Circuit Amp | 13.7 |
| Max Breaker Size | 20 A |
| kWh per 100 lbs of ice at 70°F air / 50°F water | 4 |
| kWh per 100 lbs of ice at 90°F air / 70°F water | 4.65 |
| Water Usage, Potable, gallons per 100 lbs of ice at 90°F air / 70°F water | 17.5 |
| Water Usage, Condenser, gallons per 100 lbs of ice at 90°F air / 70°F water | N/A |
| BTU (approx per hour) | 14600 |
| Number of Wires | 3 (including ground) |
| Refrigerant | R449A |
| Refrigeration Charge | 176 oz |
| Unit Width (in.) | 22.26 |
| Unit Width (mm) | 565 |
| Unit Depth (in.) | 24.62 |
| Unit Depth (mm) | 625 |
| Unit Height (in.) | 26.84 |
| Unit Height (mm) | 682 |
| Shipping Weight | 218 lbs / 99 kg |
| Shipping Dimensions (in.) | 25 (W) x 27 (D) x 33 (H) |
| Shipping Dimensions (mm) | 635 (W) x 686 (D) x 838 (H) |
| Ice Form | HALF CUBE |
| Ice Size | 3/8 x 7/8 x 7/8 in. / 10 x 22 x 22 mm |
| Ambient air temperature (min. to max.) | 50°F (10°C) to 100°F (38°C) |
| Water Temp (min. to max.) | 40°F (4°C) to 100°F (38°C) |
| Water Pressure (min. to max.) | 20 PSIG (1.4 BAR) to 80 PSIG (5.5 BAR) |
| Water filter | IFQ1-M manifold system with IOMQ-M replacement cartridge |
Installation & Requirements
- Requires an ice storage bin or dispenser (sold separately); see the suggested combinations below.
- Requires the RC206C49 remote condenser and a line set (RL49-25, RL49-40 or RL49-75 precharged; KRL-25, KRL-40 or KRL-75 noncharged), all sold separately.
- Electrical: voltage/hertz/phase 208-230/60/1; min. circuit amp 13.7; max breaker size 20 A.
- Connections: Ice Maker Drain, 3/4" FPT; Ice Maker Potable Water Inlet, 3/8" FPT; Electrical Connection, .875" (22.2 mm) (2); Condensate Base Drain, .50" (12.7 mm); Remote Condenser Discharge Line, 1/2" male quick connect for line set; Remote Condenser Liquid Line, 3/8" male quick connect for line set.
Suggested Bin Combinations
Ice-O-Matic suggests these bin and adapter combinations for the CIM0826HR49:
- B40 with KBT19
- B42
- B55 with KBT19
- B110 with KBT23C
Sold separately: KCUBEDISPB for ice level control for a dispenser - verify the adapter with the dispenser manufacturer; KBT222 for twins on a B110.
Warranty: Ice Maker: 3 years parts and labor; Evaporator and Compressor: 5 years parts; Evaporator: 7 years parts and labor (if enrolled in the filter program for US & Canada).
