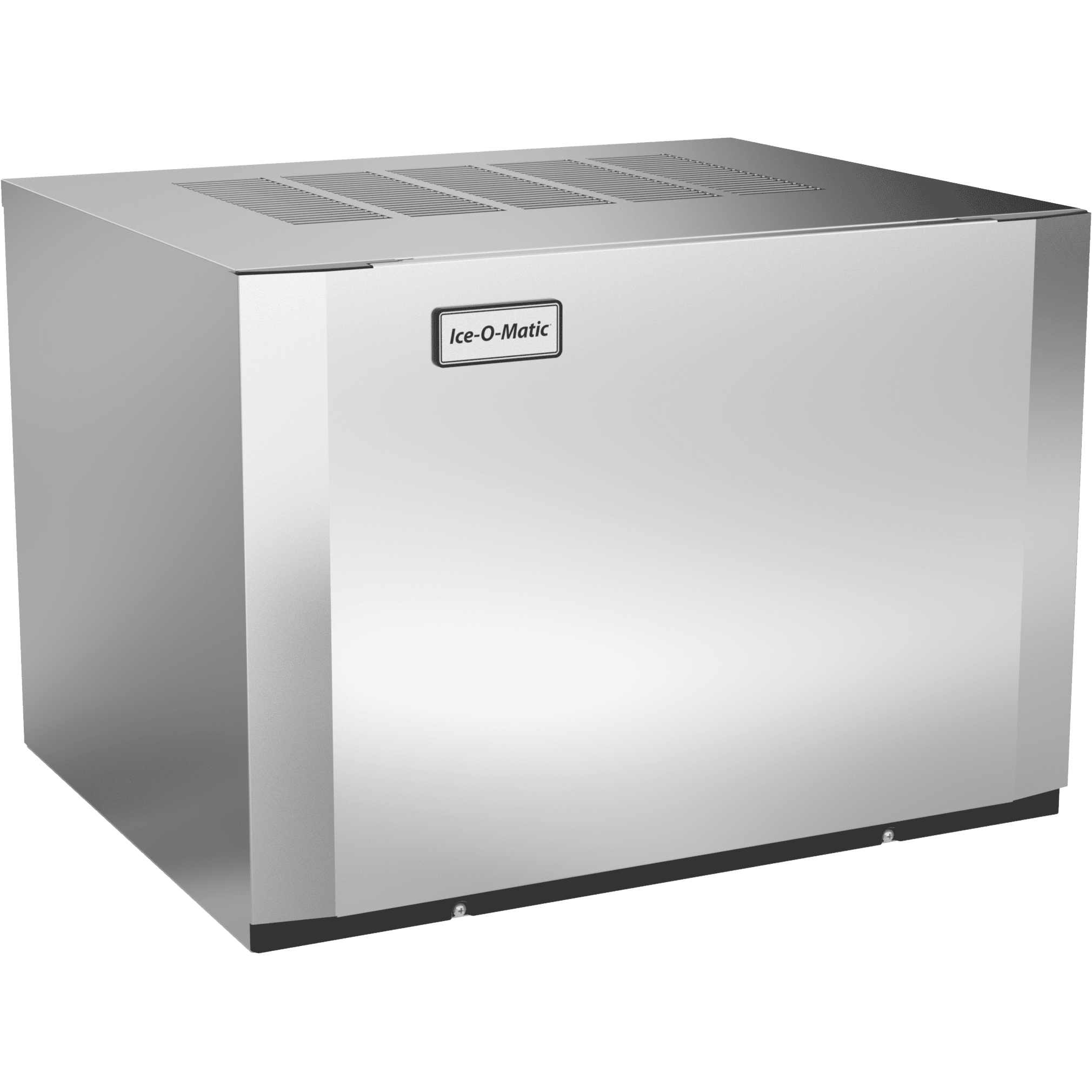

Ice-O-Matic 30-Inch Modular Half Cube Ice Maker, Air-Cooled, 525 lb/24 hr, 115V CIM0530HT90
The Ice-O-Matic CIM0530HT90 is a 30-inch air-cooled modular ice maker that produces up to 525 lb of half cube ice per 24 hours at 70°F air and 50°F water. It mounts on a separate ice bin or dispenser (sold separately) and runs on 115/60/1 power with R290 refrigerant.
Key Features
- Modular design: Mounts on a compatible Ice-O-Matic bin or ice and beverage dispenser, so you can match storage to your volume.
- Harvest Assist: Keeps ice production consistent for the life of the machine while reducing energy consumption and increasing capacity.
- Faster cleaning: The front-facing evaporator and dishwasher-safe plastic components (up to 180°F) make routine cleaning quicker, which lowers operating costs.
- Nickel-plated evaporator: Electroless nickel plating on the evaporator plates protects the freezing surface for reliable, long-term production.
- Simple service: Shares many common parts with other CIM machines, so service technicians work with familiar components.
- R290 refrigerant: Ice-O-Matic uses R290 here for a more environmentally friendly and efficient refrigeration system.
Specifications
| Specification | CIM0530HT90 |
|---|---|
| Model | CIM0530HT90 |
| Energy Star | Yes |
| BABA Compliant | Yes |
| Ice production per 24 hrs at 70° air / 50° water | 525 (238) lb (kg) |
| Ice production per 24 hrs at 90° air / 70° water | 400 (181) lb (kg) |
| Condensing Type | Air |
| Voltage/Hertz/Phase | 115/60/1 |
| Min. Circuit Amp | 11.9 |
| Max Breaker Size | 20 A |
| kWh per 100 lbs of ice at 70°F air / 50°F water | 3.7 |
| kWh per 100 lbs of ice at 90°F air / 70°F water | 5.43 |
| Water usage, potable, gallons per 100 lbs of ice at 90°F air / 70°F water | 17 |
| Water usage, condenser, gallons per 100 lbs of ice at 90°F air / 70°F water | N/A |
| BTU (approx per hour) | 8200 |
| Number of Wires | 3 (including ground) |
| Refrigerant | R290 |
| Refrigeration Charge | 4.59 oz / 130 g |
| Unit Width | 30.26 in / 769 mm |
| Unit Depth | 24.62 in / 625 mm |
| Unit Height | 21.25 in / 540 mm |
| Shipping Weight | 151 lbs / 68 kg |
| Shipping Dimensions (in.) | 33 (W) x 27 (D) x 27 (H) |
| Shipping Dimensions (mm) | 838 (W) x 686 (D) x 686 (H) |
| Ice form | HALF CUBE |
| Ice size | 3/8 x 7/8 x 7/8 in.; 10 x 22 x 22 mm |
| Water filter | IFQ1-S manifold system with IOMQ-S replacement cartridge |
| Ambient air temperature (min. to max.) | 50°F (10°C) to 100°F (38°C) |
| Water Temp (min. to max.) | 40°F (4°C) to 100°F (38°C) |
| Water Pressure (min. to max.) | 20 PSIG (1.4 BAR) to 80 PSIG (5.5 BAR) |
Installation & Requirements
- Requires an ice storage bin or dispenser (sold separately); see the suggested combinations below.
- Electrical: voltage/hertz/phase 115/60/1; min. circuit amp 11.9; max breaker size 20 A.
- Connections: Ice Maker Drain, 3/4" FPT; Ice Maker Potable Water Inlet, 3/8" FPT; Electrical Connection, .875" (22.2 mm) (2); Condensate Base Drain, .50" (12.7 mm).
Suggested Bin Combinations
Ice-O-Matic suggests these bin and adapter combinations for the CIM0530HT90:
- B40
- B55
- B110 with BPF-1
Sold separately: KSI-1 Safe Ice Module; KCUBEDISPB for mounting to a dispenser; B55.
Warranty: Ice Maker: 3 years parts and labor; Evaporator and Compressor: 5 years parts; Evaporator: 7 years parts and labor (if enrolled in the filter program for US & Canada).
