ITALFORNI Tunnel Stone Gas TSGAS Conveyor Oven, Refractory Stone Belt

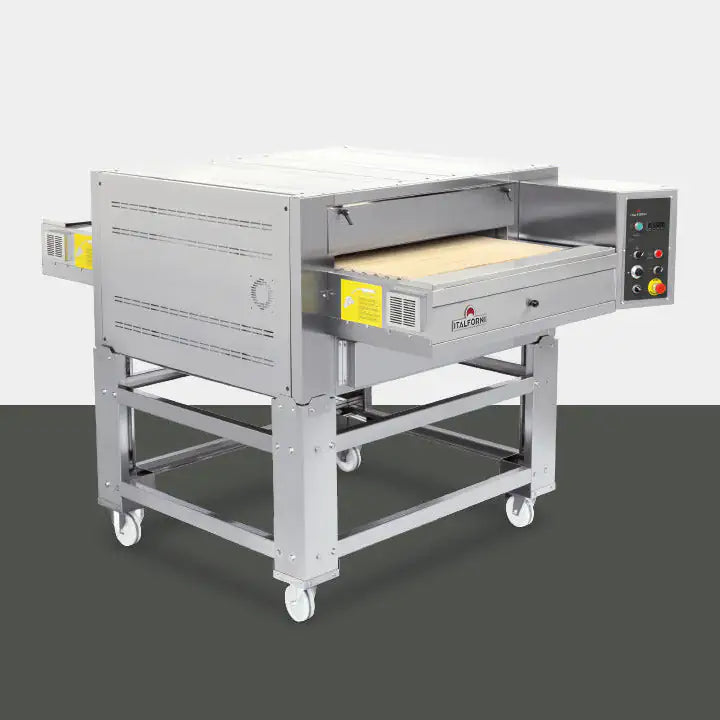

ITALFORNI Tunnel Stone Gas (TSGAS) is a gas-fired conveyor oven that bakes directly on refractory stone, with atmospheric burners under the baking floor. On a 79 cm (31.1 in) belt it turns out up to 710 small pizzas an hour at temperatures up to 420°C (788°F), and it is cETLus and ETL Sanitation listed with a 110 V control supply for US sites.
Key Features

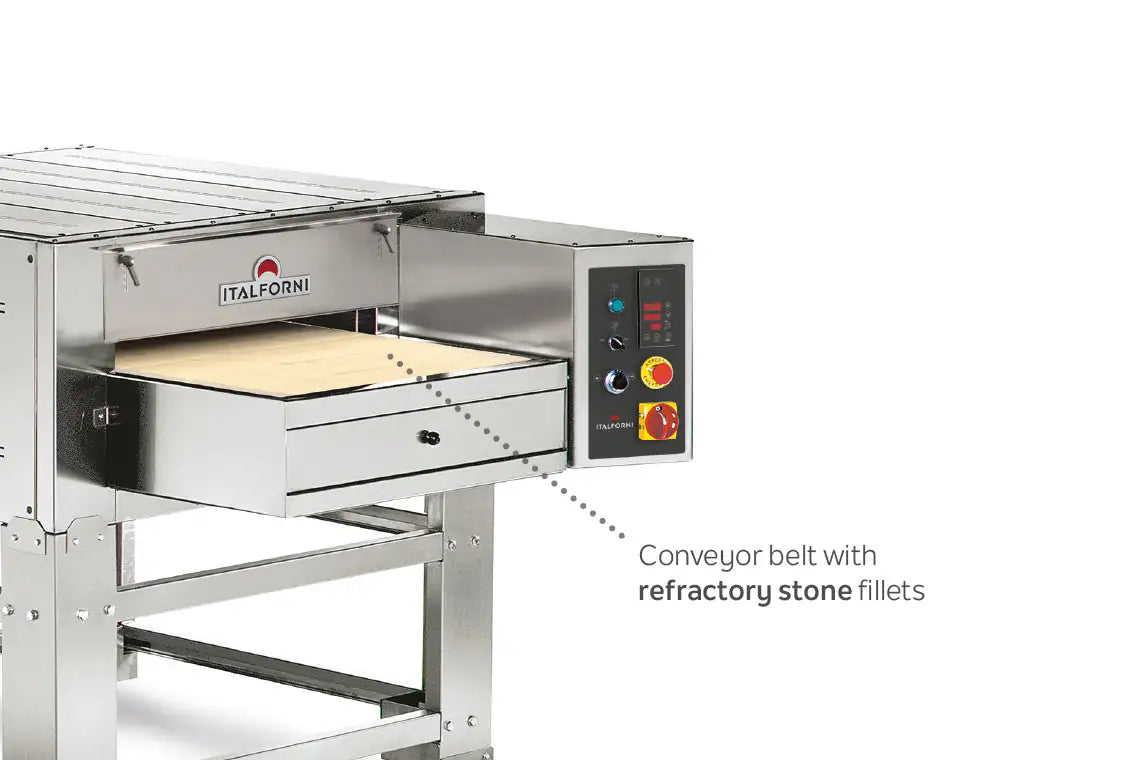

- Gas heat under stone: Atmospheric burners with safety valves heat the refractory stone belt from below for a deck-style bottom bake.
- Adjustable belt speed: Digital or mechanical speed control sets the bake time for pizza, focaccia, tortillas, piadine, bruschetta, crostini, chicken wings and meats.
- Full view of the bake: Operators can see into the cooking chamber without stopping the line.
- Cool exterior, easy upkeep: Insulation keeps the outside around 30°C (86°F); self-lubricating bearings, removable crumb drawers and adjustable shutters reduce maintenance.
Specifications
| Specification | TSGAS |
|---|---|
| Conveyor belt width | 79 cm (31.1 in) |
| Baking chamber, internal (H × W × D) | 11 × 85 × 114 cm (4.3 × 33.5 × 44.9 in) |
| External dimensions (H × W × D) | 66 × 142 × 216 cm (26 × 55.9 × 85 in) |
| Weight | 400 kg (882 lb) |
| Gas input | 40,420 kcal/h max (about 160,400 BTU/h); 20,700 kcal/h average (about 82,100 BTU/h) |
| Burners | Atmospheric, with safety valves, under the baking floor |
| Electrical supply (standard) | 230 V / 1 ph / 50-60 Hz, for controls and conveyor drive |
| Temperature range | 0 to 420°C (32 to 788°F) |
| Front | Stainless steel |
| Matching stand (STSGAS) | 62 × 133 × 115 cm (24.4 × 52.4 × 45.3 in), 42 kg (93 lb) |
Hourly output at a 3.0-minute bake
| Pizza size | Pizzas per hour |
|---|---|
| Ø 15 cm (6 in) | 710 |
| Ø 20 cm (8 in) | 325 |
| Ø 25 cm (10 in) | 273 |
| Ø 30 cm (12 in) | 147 |
| Ø 35 cm (14 in) | 130 |
| Ø 45 cm (18 in) | 74 |
| Ø 50 cm (20 in) | 44 |
Installation & Requirements
- US electrical: Available with a 110 V supply for US installations: TSB gas at 110 V 50/60 Hz and TSC gas at 110 V 60 Hz (extra lead time). The standard European supply is 230 V single-phase.
- Certification: TSB GAS and TSC GAS are cETLus Listed by Intertek to ANSI Z83.11 and CSA 1.8 (gas food service equipment) and ETL Sanitation Listed to NSF/ANSI 4 (Intertek control number 4002568).
- Gas connection: A qualified gas installer should size the supply for the 40,420 kcal/h (about 160,400 BTU/h) maximum input.

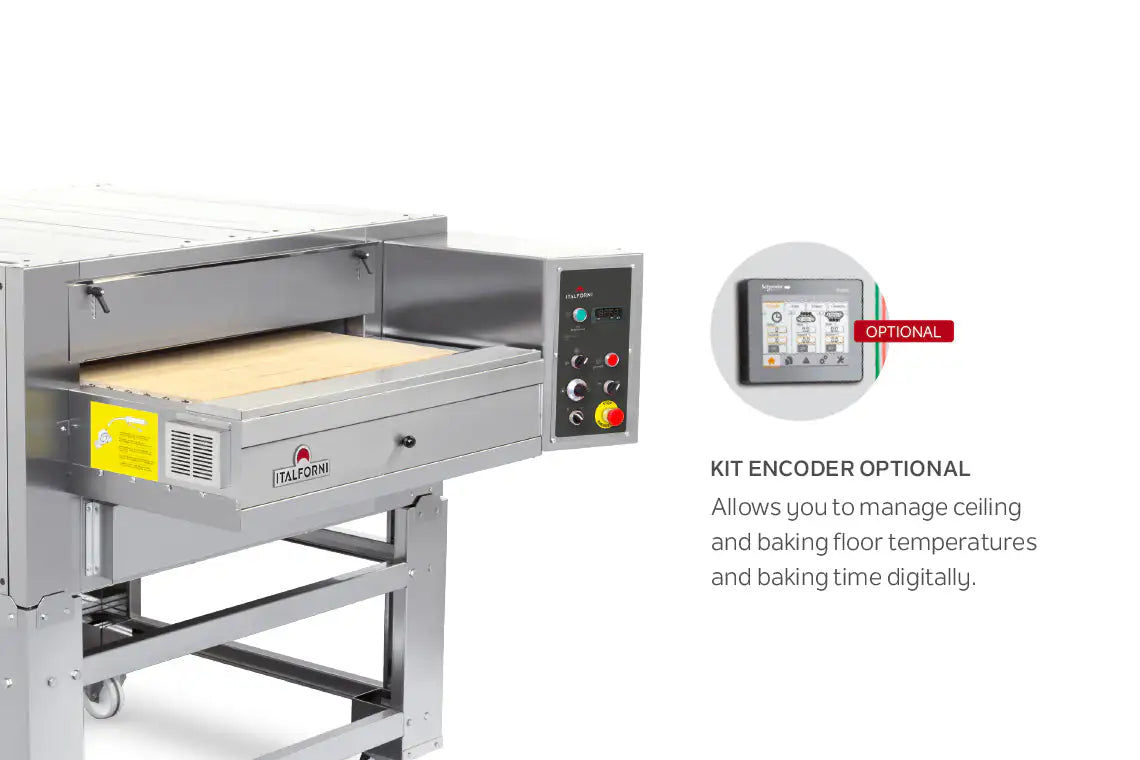

- Option: KIT ENCODER for digital parameter and belt control by encoder.
Sold separately: STSGAS stand; KIT ENCODER.
Ordering & Lead Time
- Factory direct from Italforni in Italy, with a total lead time of 6 to 8 weeks.
- Final sale: not eligible for change-of-mind returns. Full manufacturer warranty and damaged-on-arrival protection still apply.
