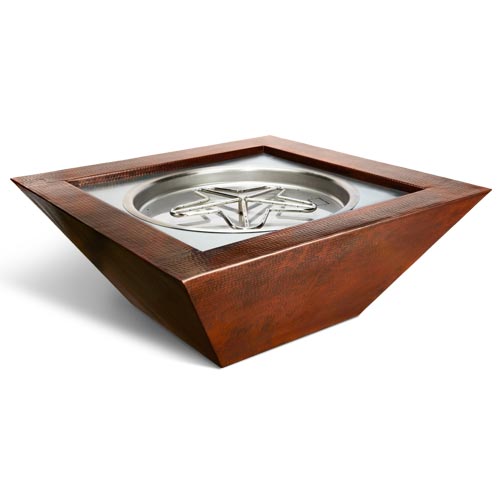

The HPC Fire Sedona is a 40" square, hand-hammered oiled copper fire bowl with a CSA certified stainless steel Penta insert. The bowl is deep enough for the electronic ignition control box or the match lit valve to sit inside, so it can be placed at ground level, and it comes as a fire bowl or a fire and water bowl with a water scupper.
Key Features
- 40" square hammered copper: The larger of HPC's two square copper bowls (the Sierra is 36"), hammered by hand and oiled.
- Controls inside the bowl: Room for the remote electronic ignition control box or the match lit valve inside the bowl.

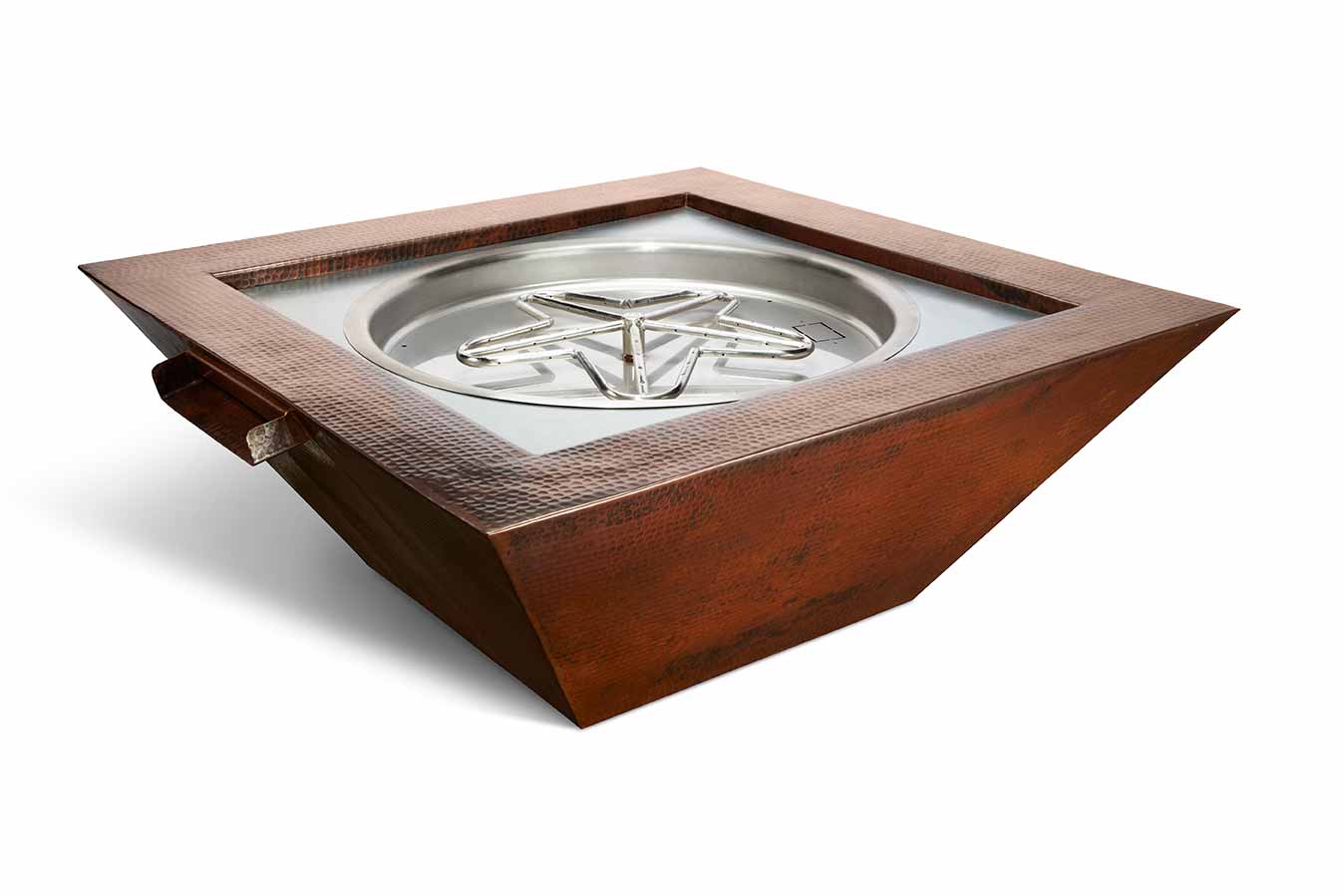

- Fire or fire and water: Fire and water models add a water scupper and a 1" NHT water inlet.
- Higher output: The PENTA25 insert is rated 125K BTU, or 140K BTU with the torpedo burner, on electronic models.
Specifications
| Specification | Details |
|---|---|
| Brand | HPC Fire |
| Model | Sedona (SEDO40 fire, SEDO40W fire and water; add TOR- for torpedo burner) |
| Bowl | 40" square, hand-hammered oiled copper |
| Insert material | 304 stainless steel |
| Insert | PENTA25 Penta burner (standard or torpedo) |
| Electronic ignition | Remote electronic hot surface ignition with flame sensing, On/Off; fire models 120VAC or 24VAC, fire and water models 12VAC |
| Match lit | CSA certified match lit insert with key valve |
| Water inlet | 1" NHT, fire and water models |
| Gas | Natural gas or liquid propane |
| Certification | CSA certified, outdoor use only, for commercial and residential use (HPC drawing 771-022) |
| Use | Outdoor only |
BTU by configuration (HPC 2026 price list)
| Configuration | Standard burner | Torpedo burner |
|---|---|---|
| Electronic ignition | 125K | 140K |
| Match lit | 65K | 65K |
Installation & Requirements
- Venting: raise the bowl at least 3/4" above the mounting surface, with a hole of at least 6" diameter in the bottom of the bowl. Spacers for ventilation are provided.
- Gas supply: fixed piping systems only; not for use with small tanks.
- Natural gas supply pressure: minimum 3.5" W.C., maximum 7.0" W.C. LP supply pressure: minimum 8.0" W.C., maximum 11.0" W.C.
- Any flex line from the permanent gas supply must be rated to the product's maximum BTU and certified to ANSI Z21.75/CSA 6.27.
- Fire and water models: 1" NHT water inlet. HPC estimates water flow at 700 to 900 GPH and recommends a valve after the pump to trim flow; have a pool or pond professional size the line and pump.
- Electronic ignition components must be kept dry. An access panel is included on applicable models.
- Wood or composite decks: HPC requires its Deck Insulation Kit (#FPI-DECK39SQ or #FPI-DECK20SQ) with locally bought paver stones.
- Modifying the product voids its certification and warranty. Follow HPC's installation manual, the National Fuel Gas Code (ANSI Z223.1/NFPA 54) or International Fuel Gas Code, the National Electrical Code and local codes.
Warranty: HPC warrants its fire pits against manufacturing defects that prevent safe and correct function: stainless steel burners, lifetime; electronics and gas valve, 3 years residential and 1 year commercial; pilot assembly, 2 years residential and 1 year commercial; stainless steel pan and valve box, 5 years residential and 1 year commercial. Coverage runs from the date of original sale or shipment from HPC and covers parts and HPC in-house labor through an HPC return authorization; installation and maintenance labor and damage from overheating, modification, abuse or improper storage are not covered.
